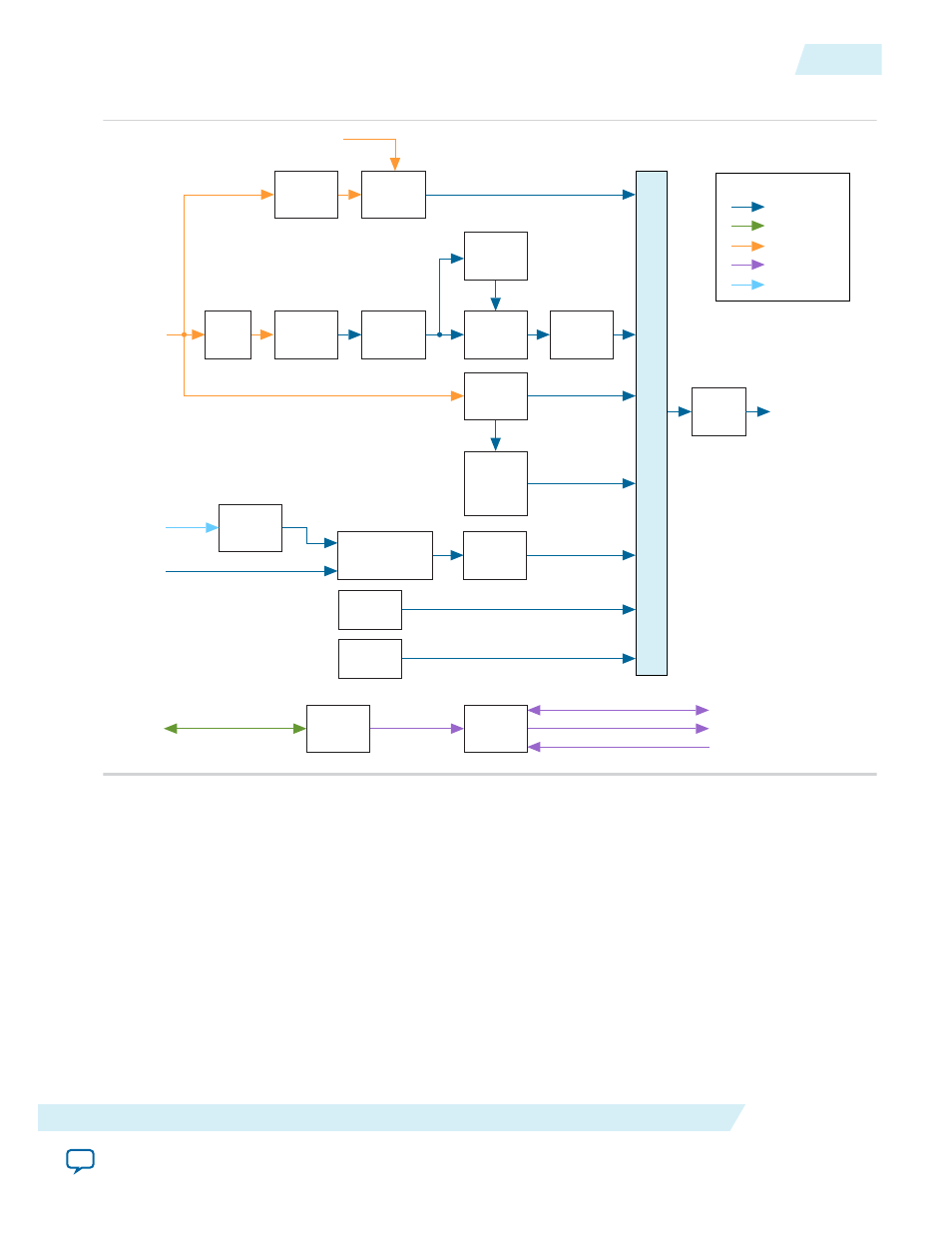

Figure 4-3: DisplayPort Source Functional Block Diagram
8B/10B
Encoder
Multiplexer
Fixed MSA
(txN_msa)
Avalon-MM
(tx_mgmt)
Bidirectional AUX Data
AUX Debug Stream
HPD
40-Bit (Quad Symbol) or
20-Bit (Dual Symbol)
Data to Transceiver
Secondary Data
(txN_ss)
Video Input
(txN_video_in)
Audio Stream
(txN_audio)
Gearbox FIFO Packetize
Throttle
Measure
Video
MSA
Generator
Blank Start
Generator
Video Data
Packet
Generator
Pixel
Steer
Secondary
Stream Encoder
DCFIFO
Controller
Registers
AUX
Controller
tx_ss_clk
clk
txN_vid_clk
aux_clk
txN_audio_clk
Legend
Audio
Encoder
DCFIFO
Training
Pattern 1
Training
Pattern 2
The source accepts a standard H-sync, V-sync, and data enable video stream for encoding. The IP core
latches and processes the video data before processing it using the
txN_video_in
input. N represents the
stream number:
tx_video_in
(Stream 0),
tx1_video_in
(Stream 1),
tx2_video_in
(Stream 2), and
tx3_video_in
(Stream 3).
The video data width supports 6 to 16 bits per color (bpc) and is user selectable. If you set the Pixel input
mode option to Dual or Quad, the video input can accept two or four pixels per clock, thereby extending
the pixel clock rate capability.
Main Data Path
The main data path consists of the packetizer, measurement, and blank generator paths. The IP core
multiplexes data from these three paths and outputs it through an 8B/10B encoder.
UG-01131
2015.05.04
Main Data Path 4-3
