Chapter 3: Parameter Settings 3–13
DDR or DDR2 SDRAM Controller with ALTMEMPHY Parameter Settings
June 2011 Altera Corporation External Memory Interface Handbook Volume 3
Section I. DDR and DDR2 SDRAM Controllers with ALTMEMPHY IP User Guide
DDR or DDR2 SDRAM Controller with ALTMEMPHY Parameter Settings
The Parameter Settings page in the DDR or DDR2 SDRAM Controller with
ALTMEMPHY parameter editor (
Figure 3–3 ) allows you to parameterize the
following settings:
■ Memory Settings
■ PHY Settings
■ Board Settings
■ Controller Settings
The Memory Settings , PHY Settings , and Board Settings tabs provide the same
options as in the ALTMEMPHY Parameter Settings page.

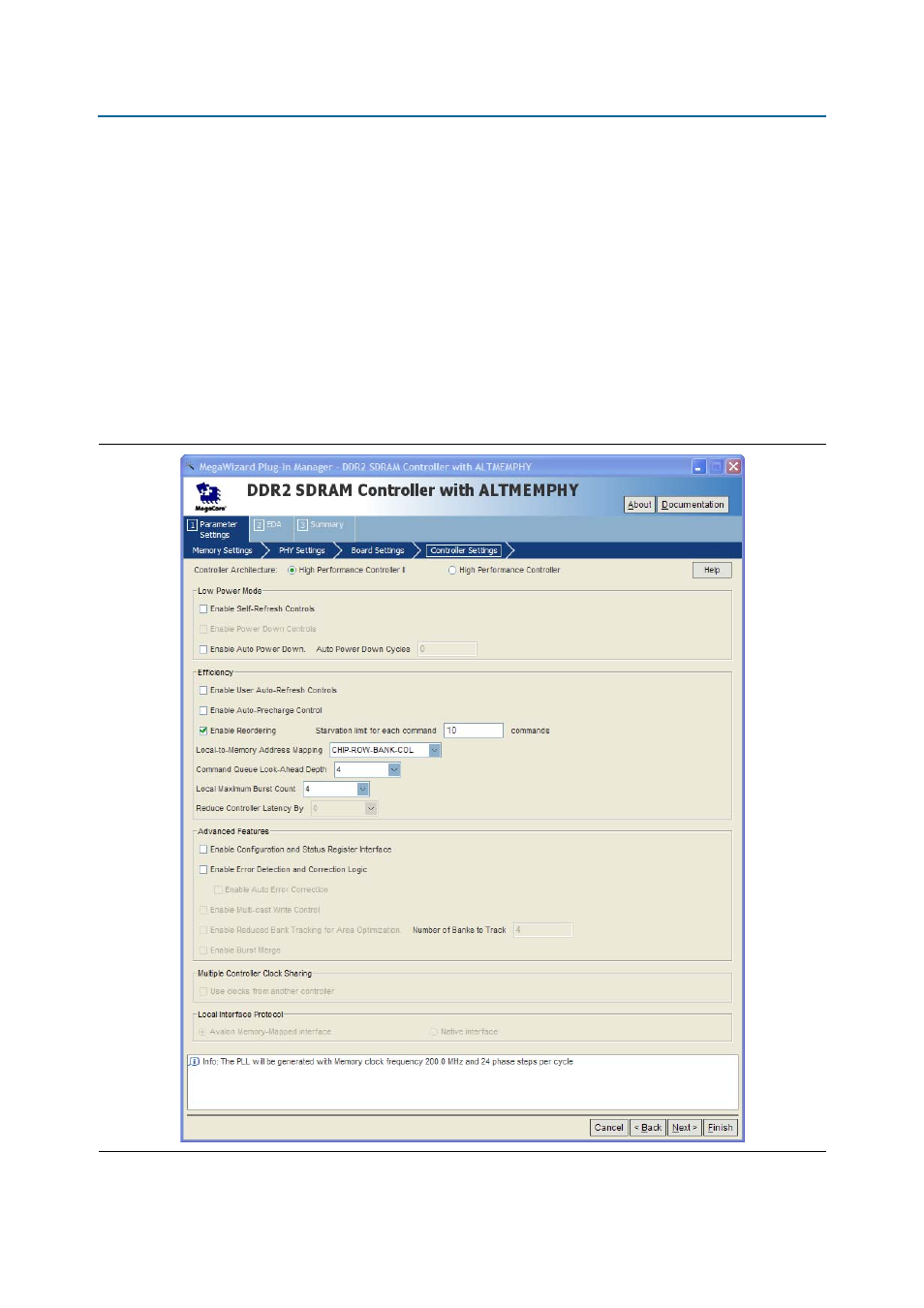

Figure 3–3. DDR2 SDRAM Controller with ALTMEMPHY Settings
