Page 90
Publication 1398-5.0 – October 1998
6-26
Interfaces
J1 Terminal Strip/Breakout Board
A 50-pin terminal strip kit is available for extending the signals from
the J1 connector. The kit includes a 1 meter (3-foot) interface cable, a
50-pin terminal strip and mounting hardware. Refer to “Options and
Accessories” on page A-1.
“Cabling Examples” on page B-26 depicts the use of this kit to pass a
cable through a bulkhead.

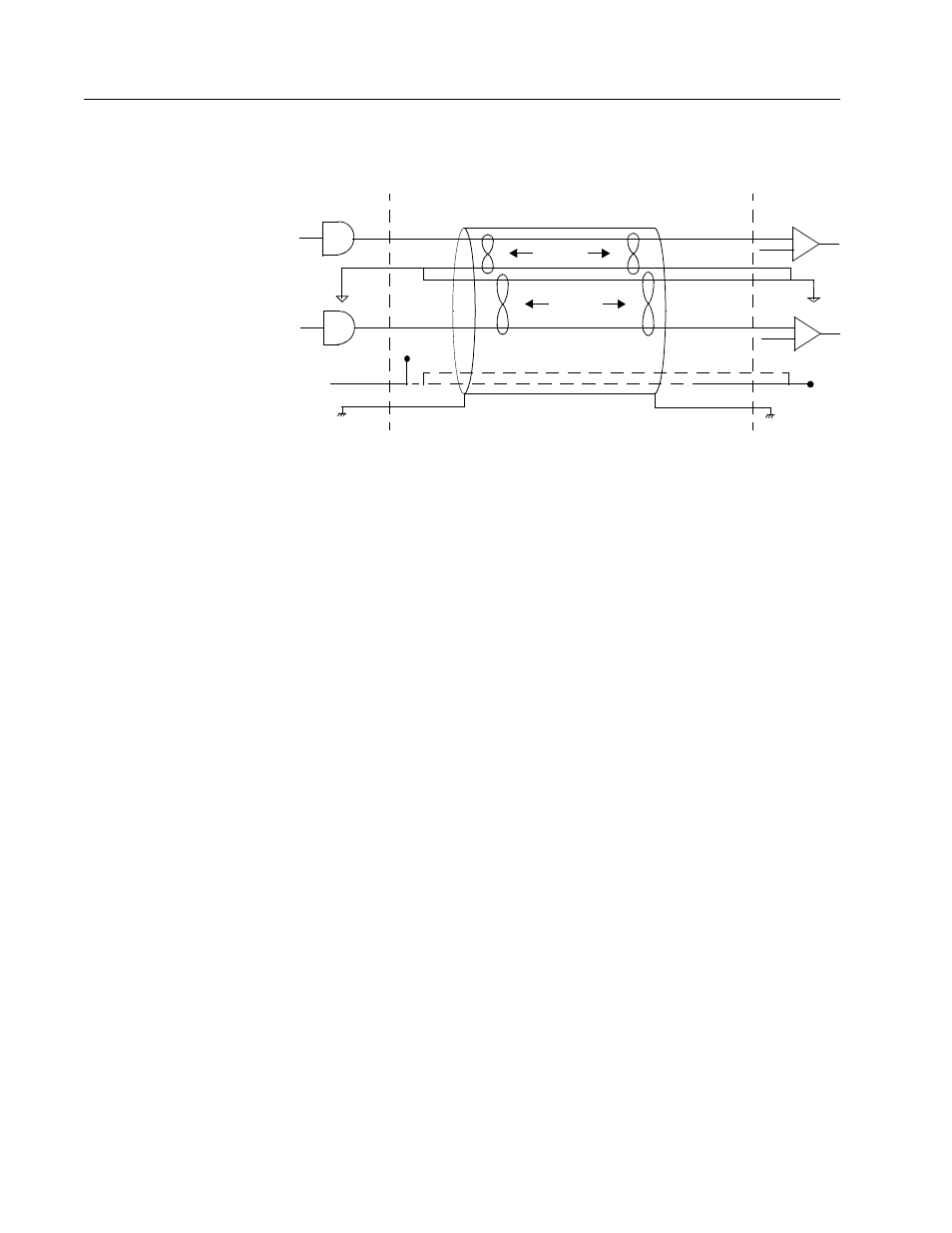

Figure 6.33
External CW/CCW (Step Up/Step Down) Interface via
Single-Ended Line Drivers (not recommended)
twisted pair
twisted pair
USER
CCW+
CCW-
16
J1
Drive
CW+
CW-
14
Drive Chassis
4
2
+5V
Supply
Return
+5 Volts
1
3
+5V
Supply
+5VDC
Connect only if J1 sources +5VDC power to user electronics.
5V @ 250 mA
ECOM
ELECTRONICS
CCW
CW
-
+
-
+
