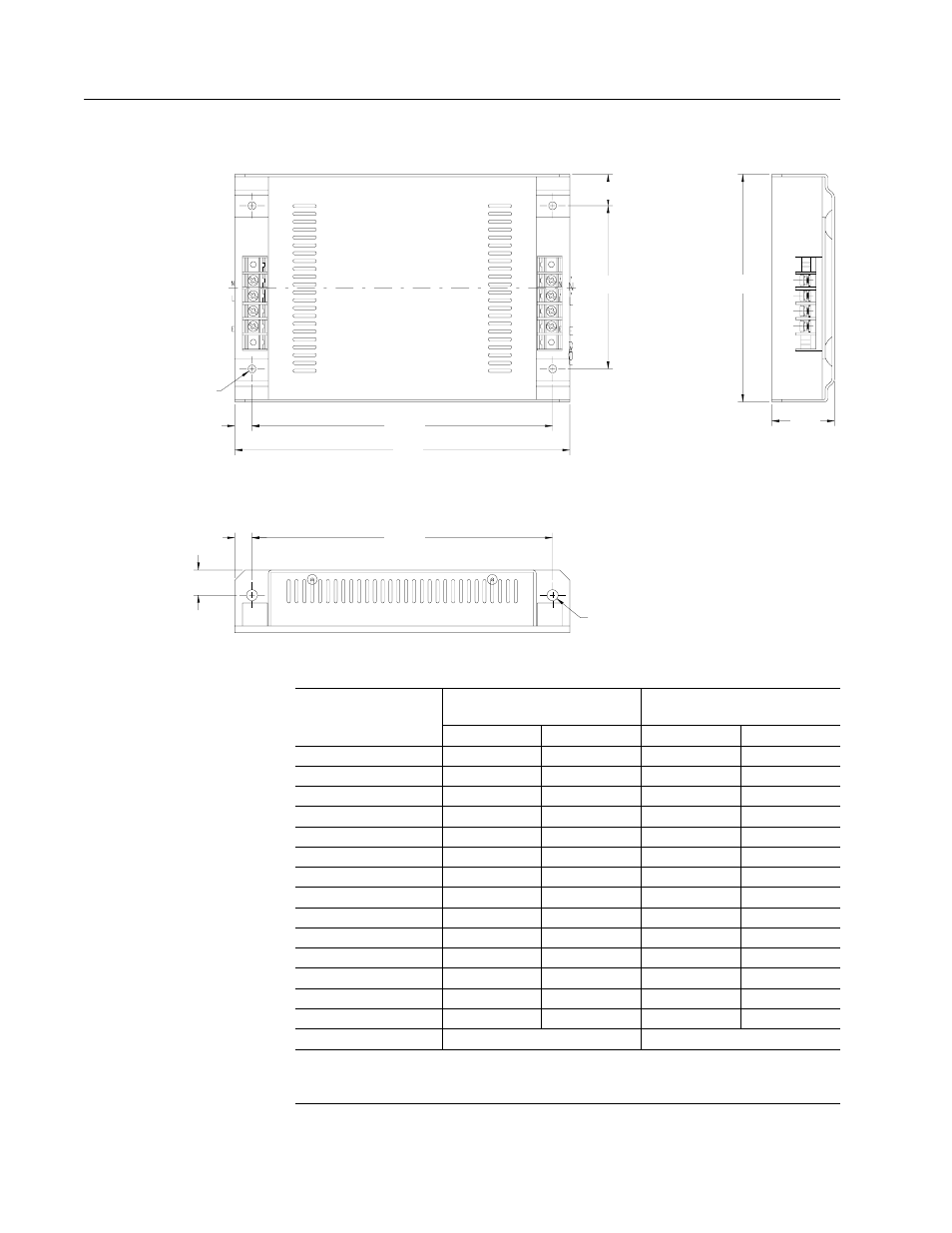

Figure 5.3 MIF Single Phase AC Line Filter Mounting Diagram
Intro
Table 5.3: MIF AC Line Filter Dimensions
DIMENSION SINGLE PHASE
10 A
SINGLE PHASE
23 A
mm in mm in
A 214 8.43 214 8.43
A1 192 (2) 7.56 (2) 192 (2) 7.56 (2)
A2 11 (2) 0.43 (2) 11 (2) 0.43 (2)
B 145 5.71 204 8.03
B1 20 (2) 0.79 (2) 20 (2) 0.79 (2)
B2 104 (2) 4.09 (2) 164 (2) 6.46 (2)
C 40 1.57 47 1.85
C1 16 (2) 0.63 (2) 19 (4) 0.75 (4)
D1 5 (4) 0.20 (4) 5 (4) 0.20 (4)
D2 7 (4) 0.28 (4) 7 (4) 0.28 (4)
Connectors M4 M4
NOTE:
Line filters are manufactured to millimeter dimensions
(inches are approximate conversions).
B B2
B1
A2
C1
A1
A
A2 A1
D1
D2
C
