F-2 PowerFlex 700S Resolver Feedback Option Card
Table H Compatibility with Resolvers on Allen-Bradley Motors

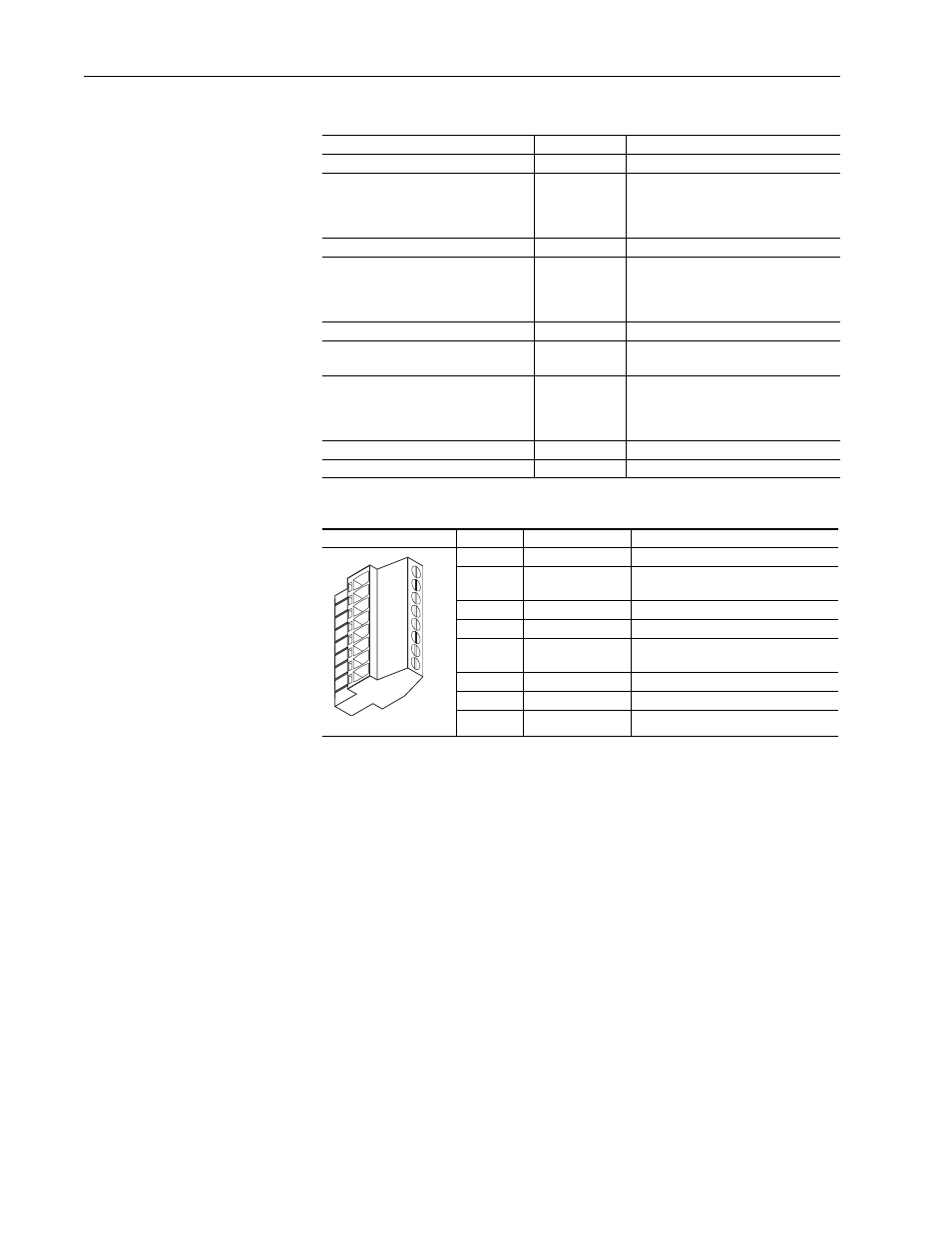

Wiring the Resolver Feedback Option Card to a Resolver
Motor / Resolver Type Compatible Notes
1326 AB 230V Primary Resolver No Receiver type - not supported
1326 AB 230V Secondary Resolver Yes Transmitter type - supported
Secondary resolver is geared to motor -
not intended for motor speed / position
feedback
1326 AB 460V Primary Resolver Yes Transmitter type - supported
1326 AB 460V Secondary Resolver Yes Transmitter type - supported
Secondary resolver is geared to motor -
not intended for motor speed / position
feedback
1326AD 230V Rare Earth No Receiver type - not supported
1326AH 460V Explosion Proof Motor
Primary Resolver Yes Transmitter type - supported
1326AH 460V Explosion Proof Motor
Secondary Resolver Yes Transmitter type - supported
Secondary resolver is geared to motor -
not intended for motor speed / position
feedback
1326AS 460V Rare Earth Yes Transmitter type - supported
MPL 460V Yes Transmitter type - supported
Terminal Signal Description
8 REF HIGH Positive Reference signal
7 SHIELD Connection point for resolver cable
shield
6 REF LOW Negative Reference signal
5 SIN HIGH Positive Sine signal
4 SHIELD Connection point for resolver cable
shield
3 SIN LOW Negative Sine signal
2 COS HIGH Positive Cosine signal
1 COS LOW Negative Cosine signal
12
34
5
6
7
8
