PowerFlex 700S Stegmann Hi-Resolution Encoder Feedback Option
Table E.A Supported Stegmann Encoders
SINCOS®,
SINCODER
® and
LINCODER
® are registered trademarks of Stegmann Inc.
Wiring the Stegmann
Hi-Resolution Feedback
Option Card to an Encoder
Terminal block P1 contains connection points for a Stegmann Hiperface®
encoder. This terminal block resides on the Hi-Resolution Encoder
Feedback Option card.
Hiperface® is a registered trademark of Stegmann Inc.

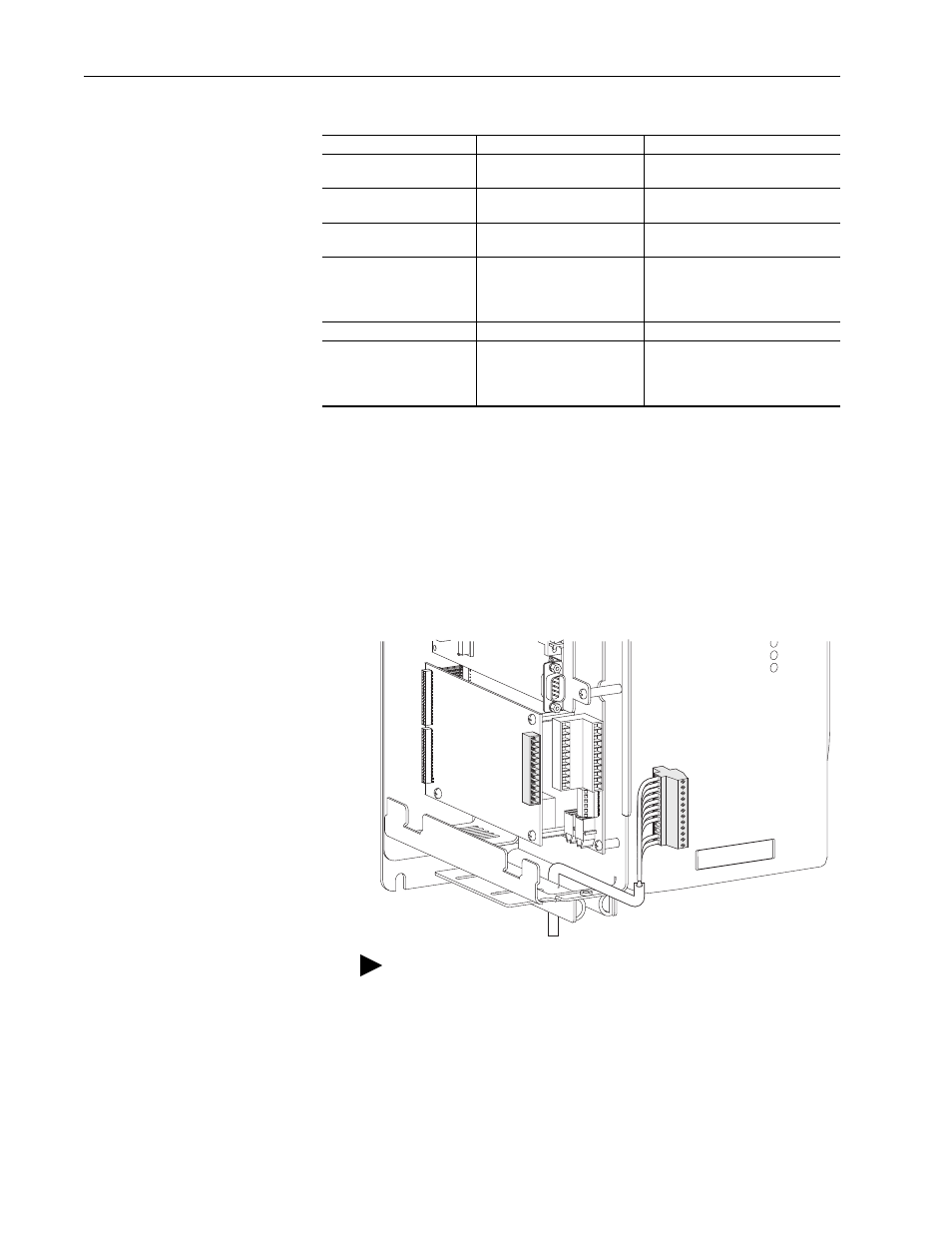

Figure E.1 Control Assembly Sliding Access Panel
Model
Resolution
Comment
SINCOS® SCS-60, SCS-70,
SCM-60, and SCM-70
512 sine cycles per revolution.
SCM-60 and SCM-70 have built-in
mechanical turns counter.
SINCOS® SCS-KIT-101 and
SCM-KIT-101
1024 sine cycles per revolution. SCM-60 and SCM-70 have built-in
mechanical turns counter.
SINCOS® SRS-50, SRS-60,
SRM-50, and SRM-60
1024 sine cycles per revolution. SRM-50 and SRM-60 have built-in
mechanical turns counter.
SINCOS® SRS/M 25
1024 sine cycles per revolution SRS25 and SRM25 have built-in
mechanical turns counter. IP65
Protection Class. Size 25 square
flange mounting.
SINCOS® SRS660
1024 sine cycles per revolution Hollow-shaft up to 14 mm diameter
SINCOS® SHS-170
512 sine cycles per revolution. While the software supports this
encoder, the SHS-170 draws
excessive current and should only be
used with an external power supply.
TIP: Remember to route wires through the sliding access
panel at the bottom of the Control Assembly.
