Chapter 19: Port-based and Tagged VLANs
434
Section III: VLANs
Port-based
Example 2

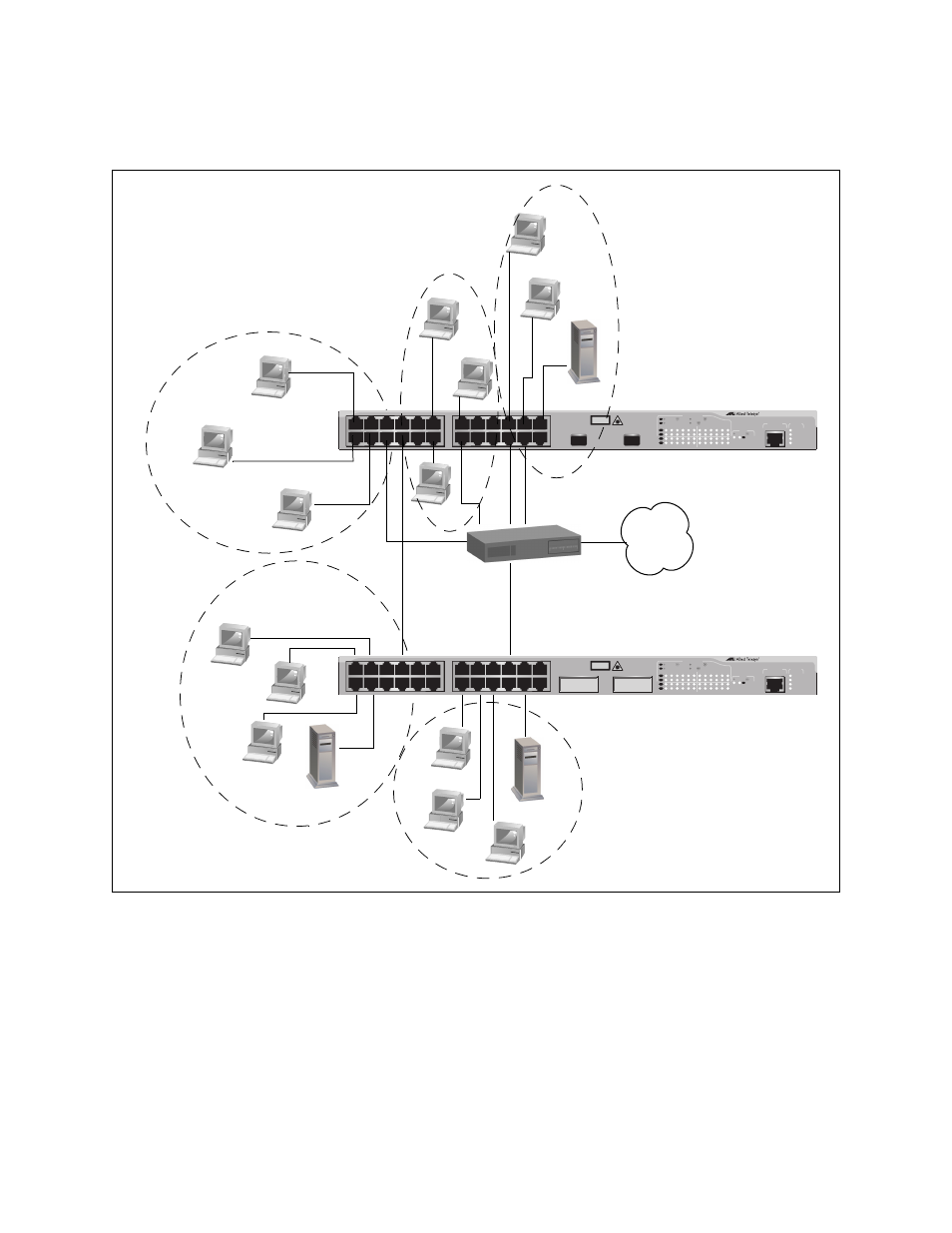

Figure 133 illustrates more port-based VLANs. In this example, two
VLANs, Sales and Engineering, span two AT-9400 Series Gigabit Ethernet
switches.
Figure 133. Port-based VLAN - Example 2
