Device management
5
Traps tab
The Traps tab displays a selectable list of Traps on the server.
To view the Traps page, perform the following actions in the Configure tab:
1. Click System on the menu bar.
2. From the sidebar, select Device Management.
3. Click SNMP in the sidebar sub-menu to display the SNMP Settings tab.
4. Click the Traps button at the bottom of the window.
The Traps tab is displayed. See Figure 34 .

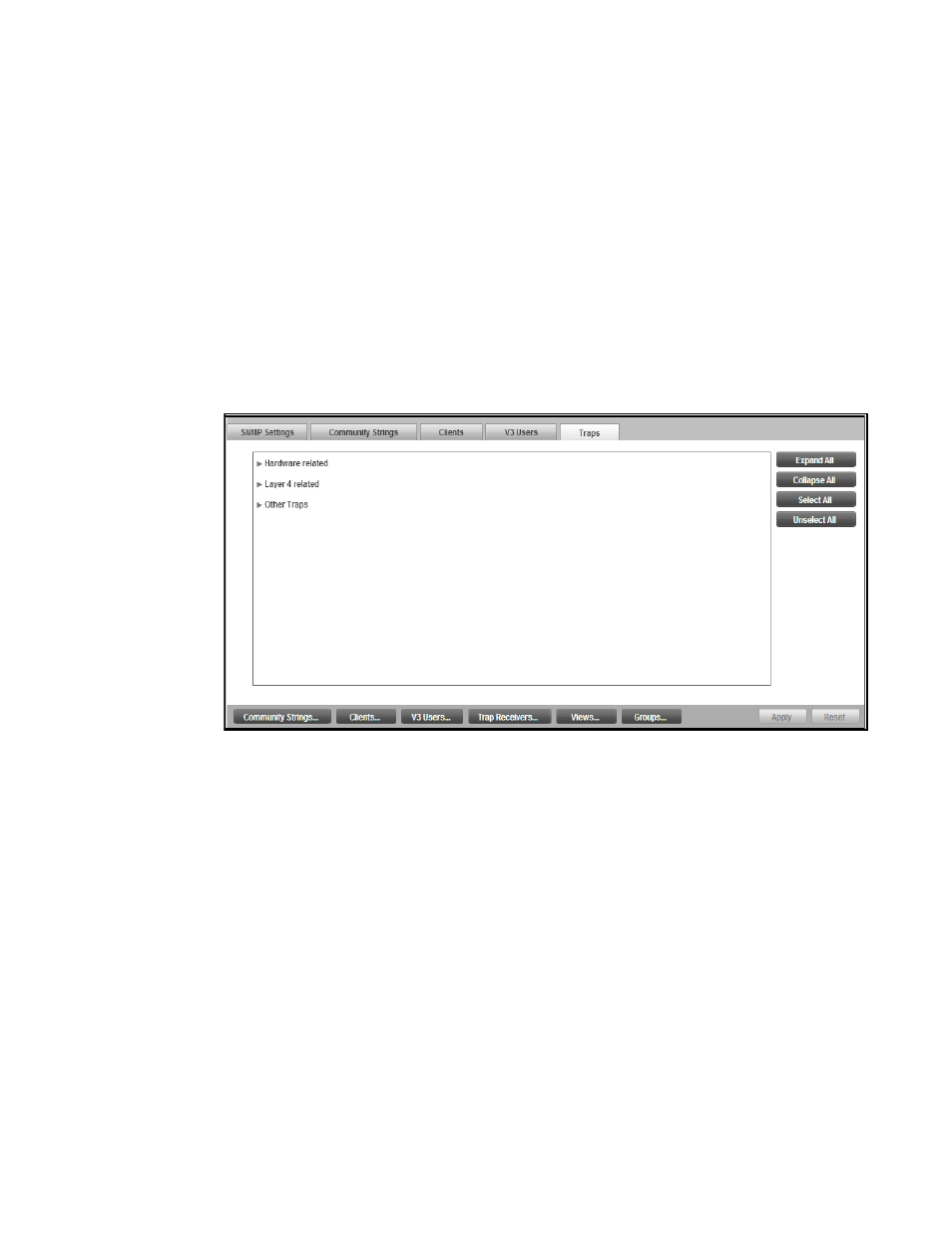

FIGURE 34 Traps page
The SNMP Trap tab has the following controls:
• Hardware Related
• Cold Start
• Link Up
• Link Down
• Layer 4 related
• HTTP Match List
• Maximum Session Limit
• Port Up
• Port Down
• Server Up
• Server Down
• Server Maximum Connections
• Switch Active
