Real servers
13
The following table describes the fields available in the Real Servers page.
Real server details
To view the detailed statistics of a real server configured on the Brocade Virtual ADX, perform the
following steps within the Monitor tab.
1. Click Traffic on the menu bar.
2. From the sidebar, select Real Servers.
3. Click Details at the bottom of the Real Servers page.
The Real Server Details page is displayed, as shown in Figure 151 . To view the real server
details in the graphical format, click Graph. To switch the view between tabular and graphical
format, click the Details or Graph on top right corner of the Real Server Details page.

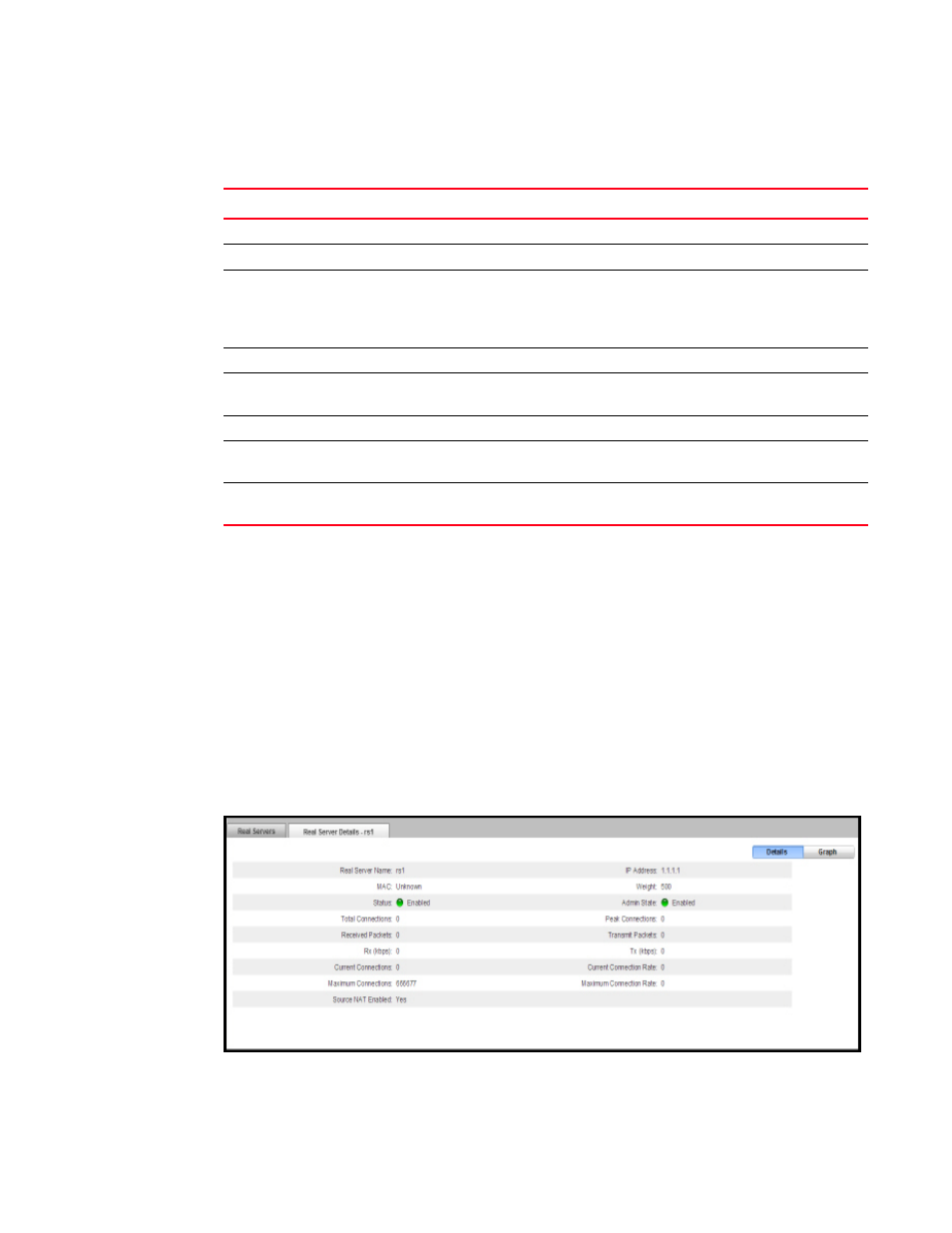

FIGURE 151 Displaying the real server details
TABLE 64 Real Servers page - fields and descriptions
Field Description
Name Displays the name of the real servers.
IP Address Displays the IP address of the real servers.
Status Displays the runtime health of the real servers, based on the Layer
3 health checks. The status can be one of the following:
•
Enabled
•
Disabled
Admin State Displays the admin state of the real servers.
Current Connections Displays the number of current open connections on the real
servers.
Current Connection Rate Displays the current connection rate on the real servers.
Rx (kbps) Displays the number of packets received by the real servers in
kilobits per second.
Tx (kbps) Displays the number of packets transmitted by the real servers in
kilobits per second.
