MAC statistics
12
MAC statistics
To view all the MAC addresses learned or configured on the Brocade Virtual ADX, perform the
following steps within the Monitor tab.
1. Click Network on the menu bar.
2. From the sidebar, select MAC.
The MAC page is displayed, as shown in Figure 144 .

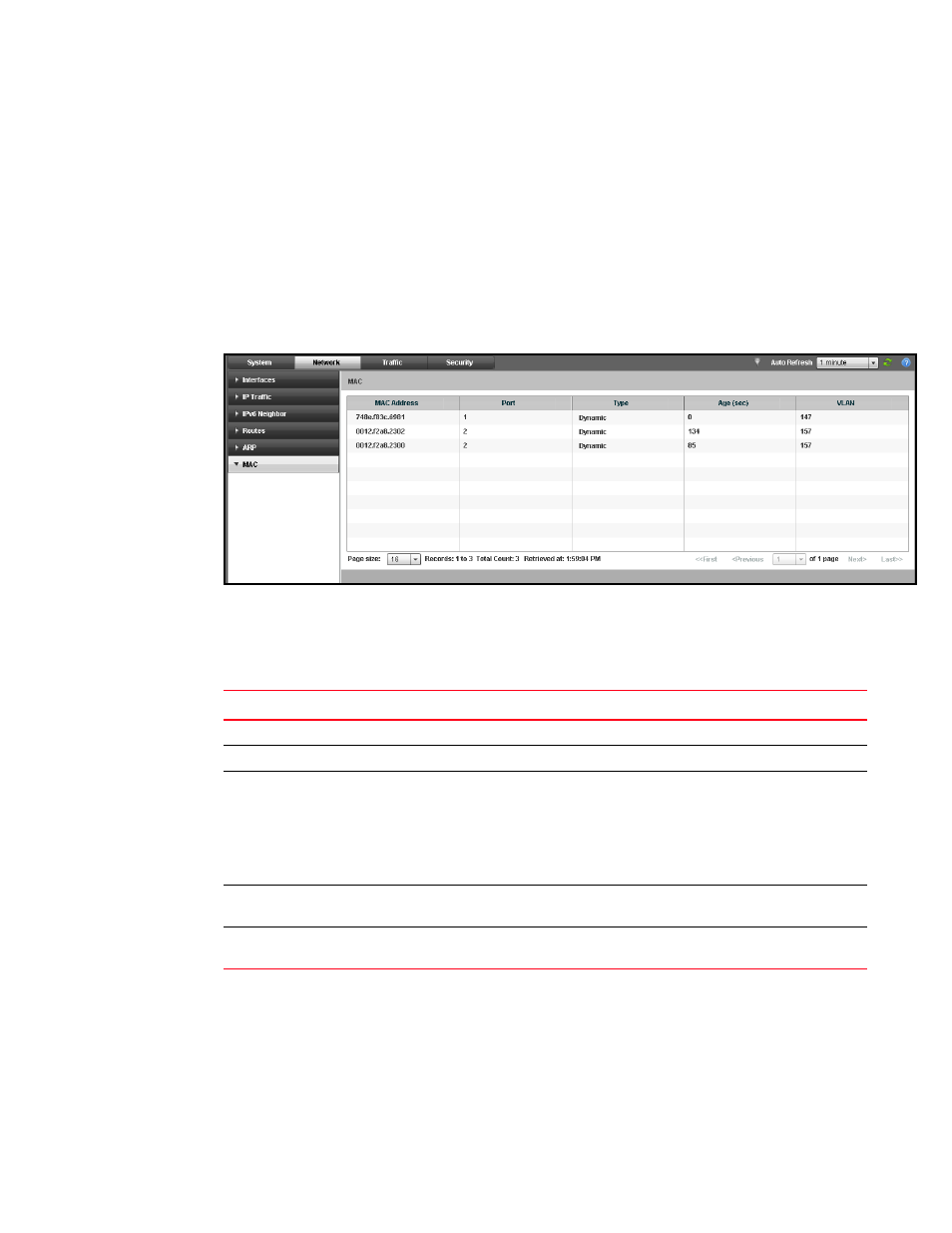

FIGURE 144 Displaying the MAC statistics
The MAC page displays the Layer 2 MAC table information. The table shows the association
between a MAC address and a system port.
The following table describes the fields available in the MAC page.
Click Next or Previous to navigate the list or select First or Last to jump to the most recent or least
recent entries respectively.
You can filter the information displayed in the MAC table using the Filter icon in the top right corner
of the main page. Click the Filter icon and select the criteria from the Filter Criteria list to filter the
information.
For more information on MAC statistics, refer to the Brocade Virtual ADX Switch and Router Guide.
TABLE 58 MAC page - fields and descriptions
Field Description
MAC Address Displays the MAC address of the port.
Port Displays the port on which the MAC address is learned or created on.
Type Displays the property of the MAC address. The MAC address property can be one of the
following:
•
Dynamic
•
Static
•
Lock Address
•
Secure Mac
Age (sec) Displays the number of seconds the entry has remained unused. This is valid only for
dynamic MAC addresses.
VLAN Displays the port-based Virtual Local Area Network (VLAN) that contains the instance of
spanning tree.
