Real servers

13

4. Click Details to view the detailed statistics of that real server port.

A new Real Server Port Details page is displayed, as shown in

Figure 153

. To view the port

details in the graphical format, click Graph. To switch the view between tabular and graphical
format, click the Details or Graph on top right corner of the Real Server Port Details page

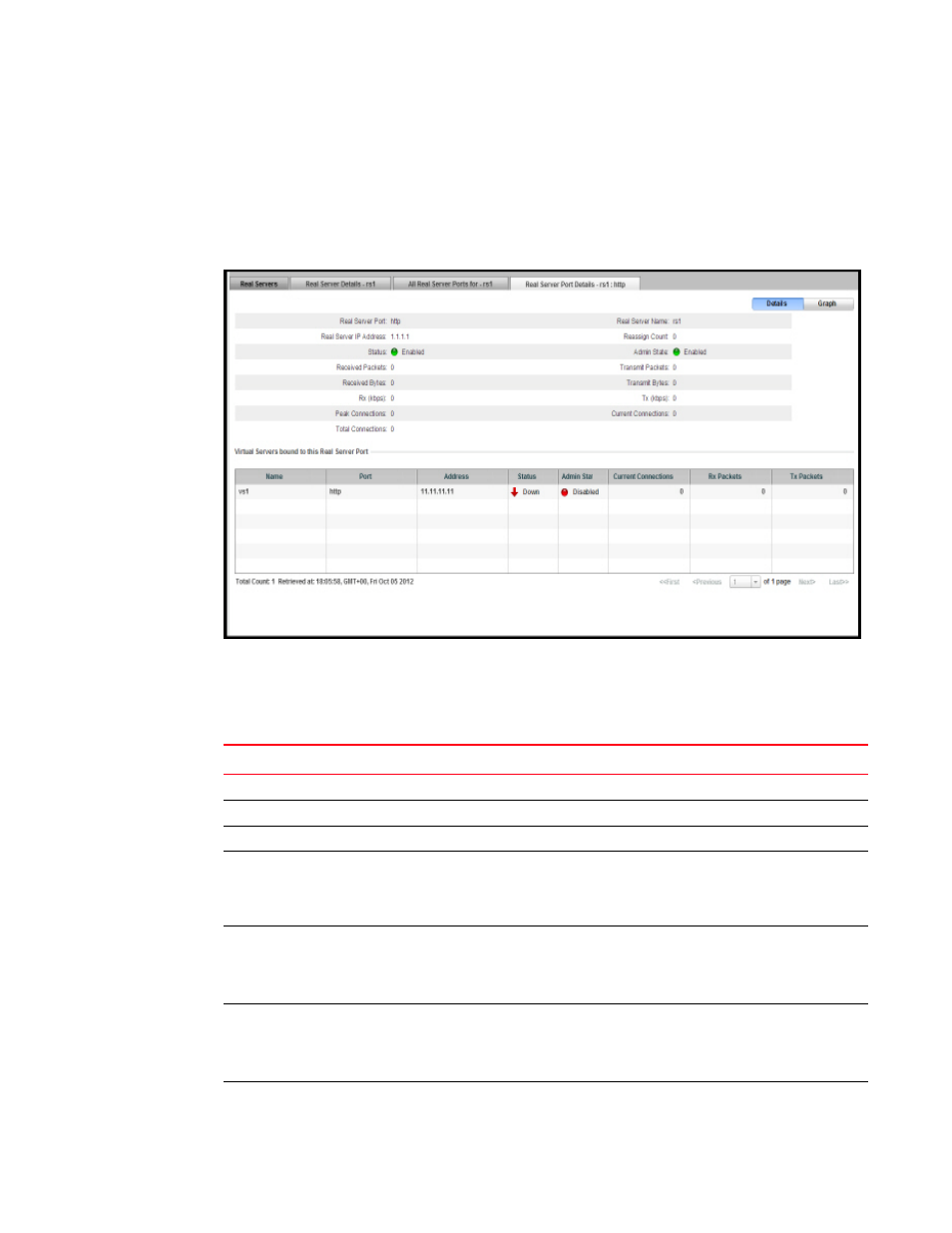

FIGURE 153

Displaying the real server port details

The Real Server Port Details page displays a table that lists the real servers that are bound to the
virtual server port.

The following table describes the fields available in the Real Server Port Details page.

TABLE 67

Real Server Port Details page - fields and descriptions

Field Description

Real Server Port

Displays the name of the real server port.

Real Server Name

Displays the name of the real server bound to this port.

Real Server IP Address

Displays the IP address of the real server.

Reassign Count

Displays the number of times the Brocade Virtual ADX has
reassigned the connection to another server in the rotation
because the server that is in use has not responded to two
contiguous TCP SYNs from the client.

Status

Displays the runtime health of the virtual server port. The status
can be one of the following:

Enabled

Disabled

Admin State

Displays the admin state of the virtual server port. The status can
be one of the following:

Enabled

Disabled

Received Packets

Displays the total number of packets received on the port.
