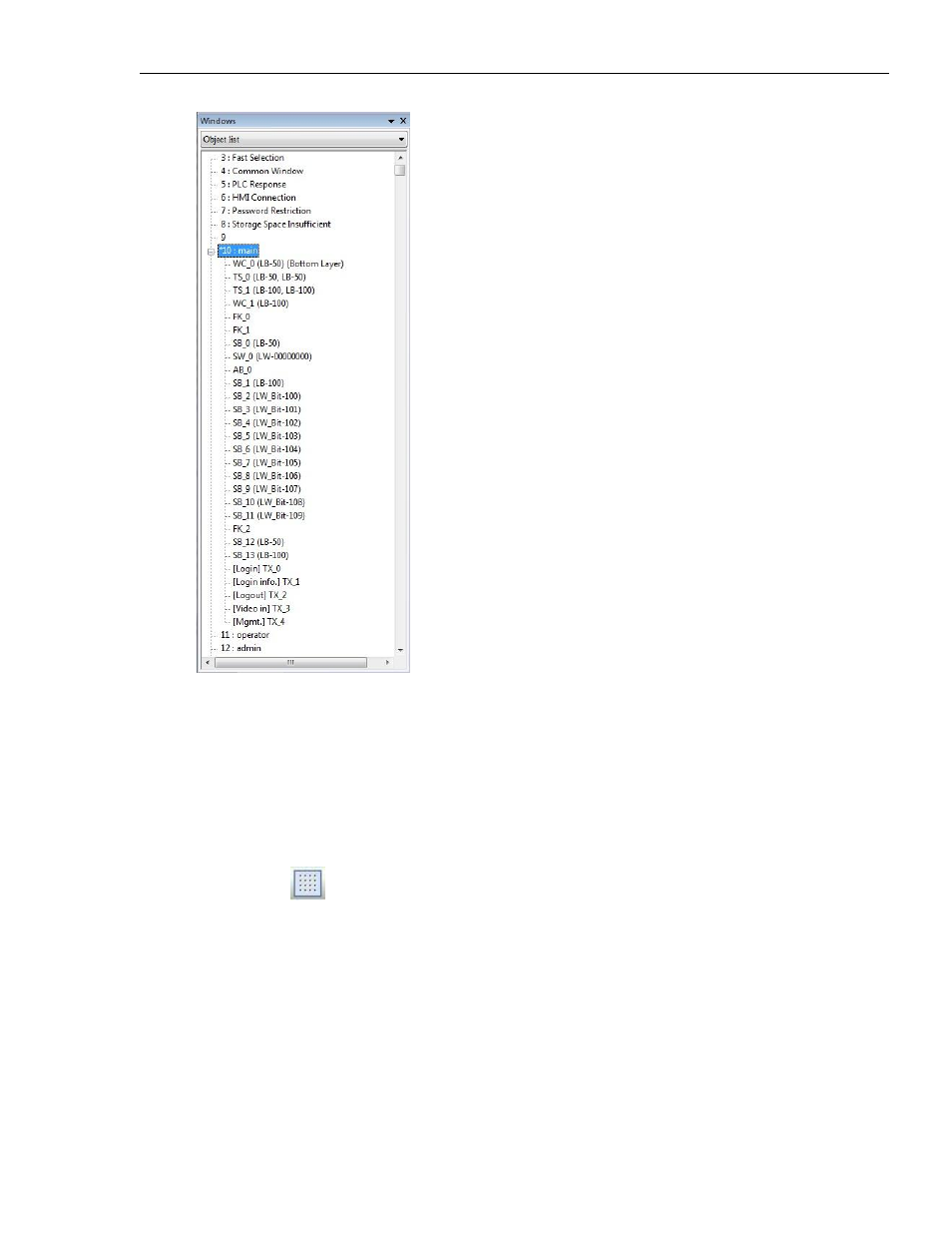

Maple Systems 5000HD Series - Manual (Page 99)

EZwarePlus Programming Manual 93
1010-1015, Rev. 03
2. The Object ID of each object will be listed. For example, WC_0 is Direct Window #0, TS_0 is Toggle
Switch #0, etc.
3. To highlight a particular object on the screen, click on the Object ID in the list. This allows the quick
selection of a particular object, especially on crowded screens or screens where objects may be
overlapping.
4. To display the object’s attribute dialog box, double-click the Object ID in the Window Tree.
Using the grid function
One display option is to have the work area covered with grid lines. These grid markings can be helpful when
trying to align objects that are created on the work area. If grid lines are selected, you can decide what size
each grid is.
Turning the Grid on and off:
1. On the Option menu, click Grid/Snap.
2. Click the Display box or click the Grid icon in the Standard toolbar to turn the grid on and off.
