112 EZwarePlus Programming Manual
1010-1015, Rev. 03

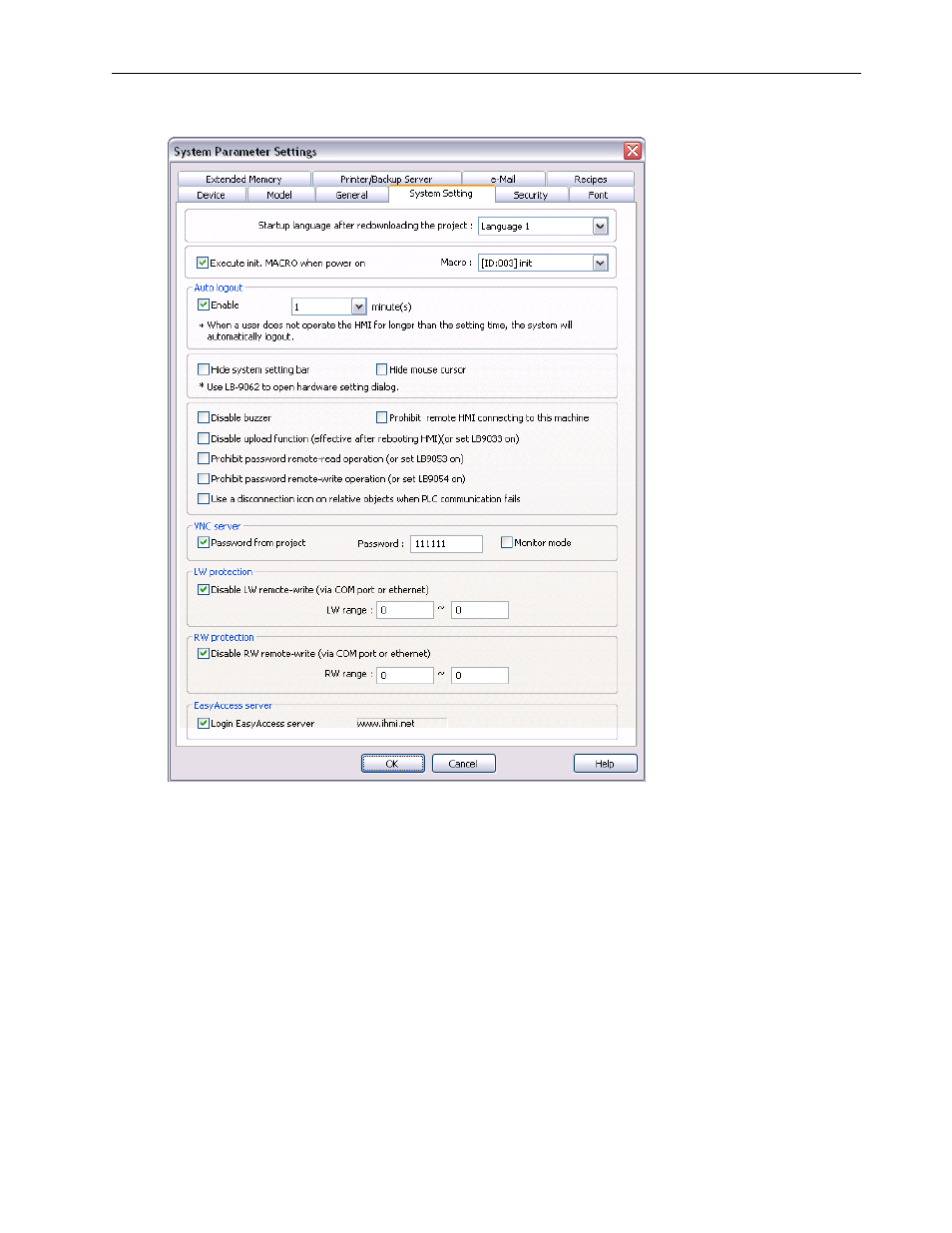

System Setting tab settings:
1. Startup language after redownloading the project: Select the language that the HMI is to use when
restarting after a download.
2. Execute init. MACRO when power on: When checked, the HMI will execute the selected macro on
startup. Available only when one or more macros exist in the project.
3. Auto logout: When checked, the HMI will automatically log out of security if no touchscreen activity
is detected during the specified interval. The time interval can range from 1 -256 minutes.
4. Hide system setting bar: When checked, the HMI will not display the button in the lower-right corner
that displays the System Setting toolbar. Local Bit LB9020 can be used to control the button. Set the
bit to show the button and clear the bit to hide the button. Local Bit LB9062 will cause the System
Setting dialog window to open when set.
5. Hide mouse cursor: When checked, the HMI will not display the mouse cursor. Local Bit LB-9018 can
be used to control the mouse cursor. Set the bit to hide the cursor and clear the bit to show the
cursor.
