Maple Systems 5000HD Series - Manual (Page 49)

EZwarePlus Programming Manual 43
1010-1015, Rev. 03

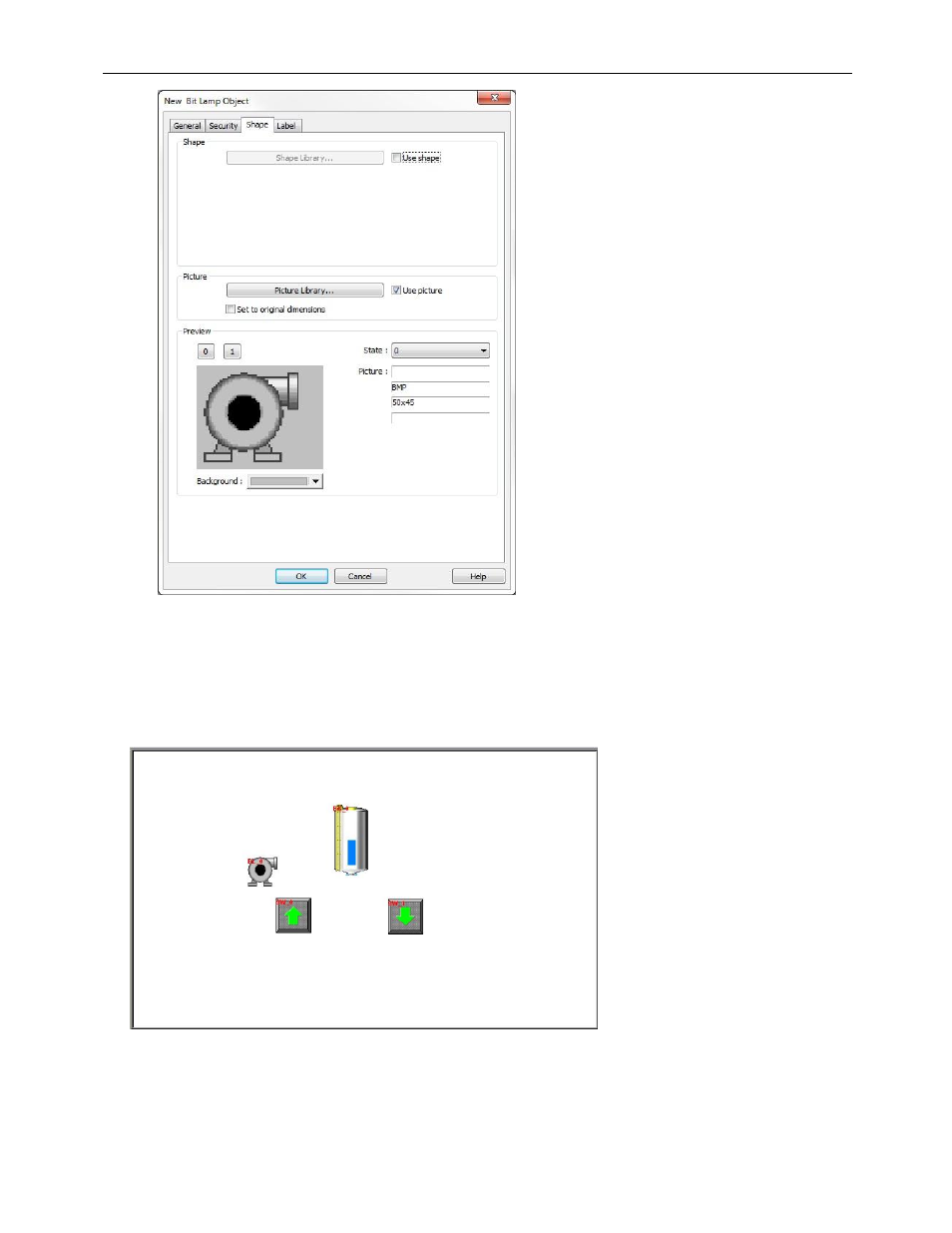

6. Click OK and place the Bit Lamp Object to the left of the tank. You can click and drag it to adjust its position
once you have placed it on the window.
7. Click on the screen to deselect the Bit Lamp Object, then double-click on it to reopen the properties (or right-
click on it and select Attribute) and click the Profile tab. Set the Width and Height to 50 (pixels).
8. Click OK to accept the new Profile properties.
9. Copy and paste the Bit Lamp Object (pump) to the same window and open the Properties window. Leave the
read address set to LB0 and set the Blinking Mode to Alternating image on state 1 (Blinking time: 0.5
seconds).
