Maple Systems 5000HD Series - Manual (Page 215)

EZwarePlus Programming Manual 209
1010-1015, Rev. 03

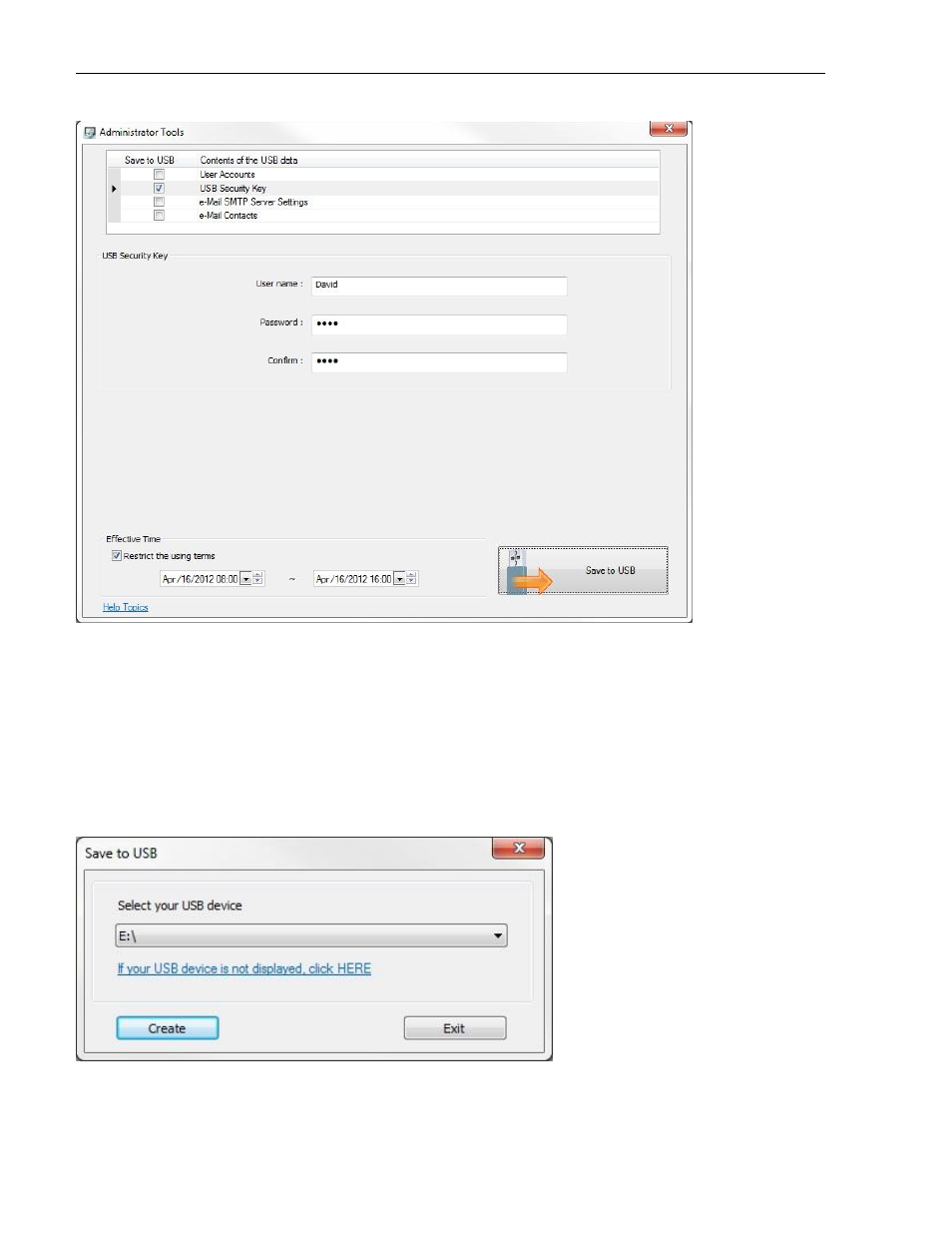

USB Security Key
 The project in the HMI must have Enhanced Security mode selected in the System Parameters > Security tab for
the USB Security Key data to be implemented in the HMI.
Selecting USB Security Key allows a user to log-in automatically by pressing a Function Key that is configured to Use
[USB Security Key] to Login. Enter the User name and Password of the user account. The User name and Password
must match an existing account in the HMI. Check the Effective Time: Restrict the using terms checkbox to put a
time limit on when the USB Security Key data can be used.
Select Save to USB to save the USB Security Key data to the USB flash drive or SD card. Navigate to the USB flash
drive or SD card connected to your PC and click Create.
