162 EZwarePlus Programming Manual
1010-1015, Rev. 03

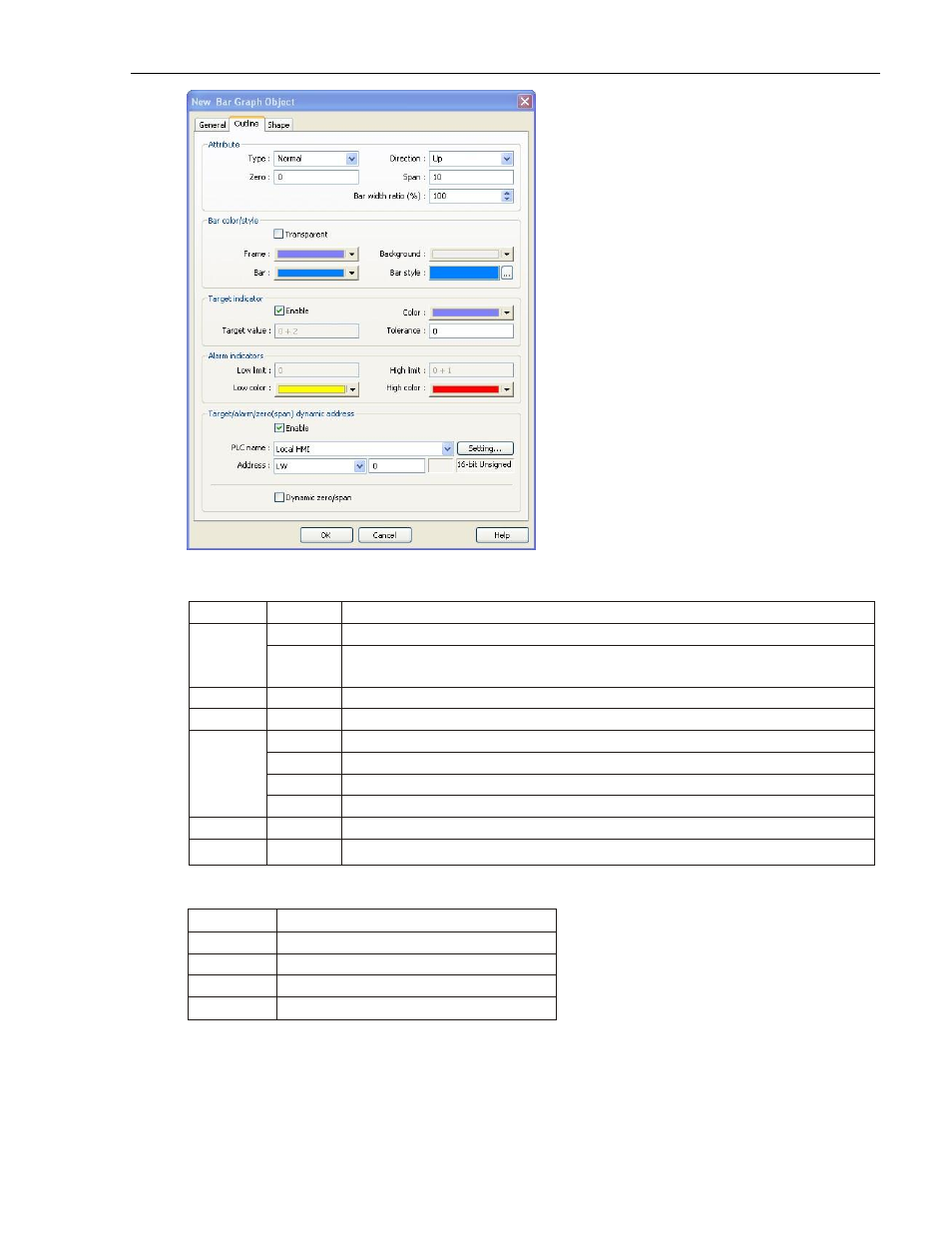

5. In the Attribute section, select how the Bar Graph is to operate.
Function Option Description
Type Normal The bar starts at one end of the object, and moves to the other end.
Offset The bar starts at some non-zero point defined by the Origin, and moves through the
origin as the value changes.
Zero The PLC Register values corresponding to an unfilled bargraph.
Origin The starting point of the bar when the Type is set to Offset.
Direction Up The bargraph starts at the bottom of the object, and moves up as it fills.
Down The bargraph starts at the top of the object, and moves down as it fills.
Right The bargraph starts at the left of the object, and moves right as it fills.
Left The bargraph starts at the right of the object, and moves left as it fills.
Span The PLC Register values corresponding to a completely filled bargraph.
Bar Width
Ratio (%)
The percent of the object’s width that the bar occupies.
6. The Bar color/style determines the appearance of the Bar Graph.
Function Description
Frame Set the color of the outside of the bar
graph.
Bar Set the color of the filled part of the bar.
Background Set the color of the unfilled part of the bar.
Bar Style
Set the pattern of the filled part of the bar.
