EZwarePlus Programming Manual 65
1010-1015, Rev. 03
In the Data Type dialog box you can enter a description of the Data Type and select which format that
the HMI will use to interpret the data.
 For String format, you must enter the total number of 16-bit register words used for the character
string.
b. Delete: If you wish to delete an item from the list, highlight a data element and click Delete
to remove from list.
c. Clear All: Click to erase entire list of data elements.
d. Modify: Highlight a data element and click Modify to revise the name of the data element or
format.
2. Select your data format: Use to select or create a data format template that can be used for other
recipes or extended memory files. In the example above, the data elements configured in the Data
format list have been saved to a template called ‘Example’. Click OK.

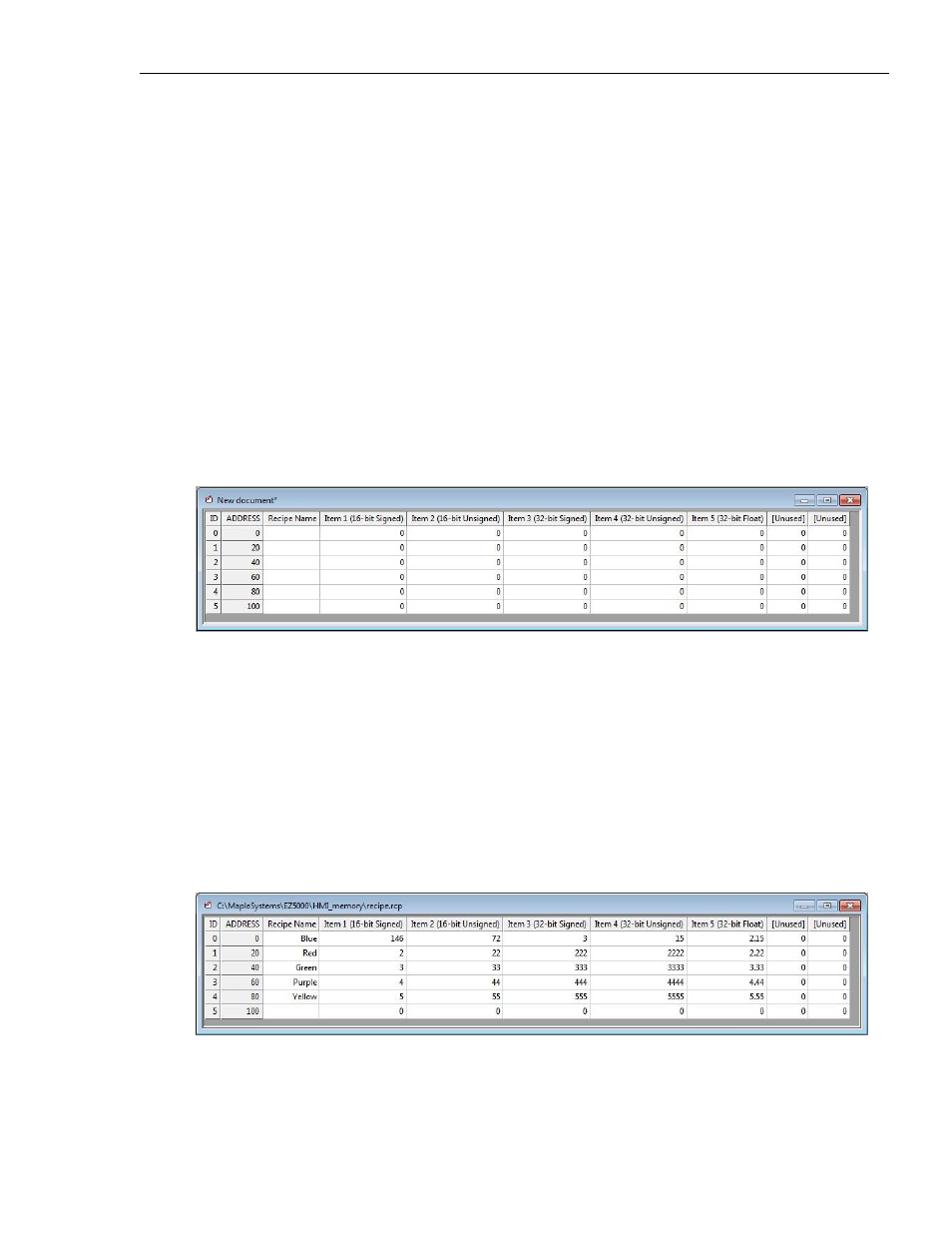

3. A table of data elements appears that shows the recipe or extended memory table.
4. This table has several columns with headers:
a. ID: This is the ID number for each record.
b. ADDRESS: This is the starting RW address or EMx address for each record.
c. Data headers: These are the descriptions used for each data element created in the step
above.
5. Edit the table by clicking on each data element field and entering the preset value. Please note that
you are only allowed to enter data according to the format defined for each data element.
6. Here is an example of a completed table:
7. Click File > Save with the following options:
a. Save file as *.rcp for recipes.
