Maple Systems 5000HD Series - Manual (Page 230)

224 EZwarePlus Programming Manual
1010-1015, Rev. 03
View Settings
The Operation Log View displays data recorded by the Operation Log object in a spreadsheet-like format.. The
Operation Log View will display data from the current database file, plus any data archived to the SD or USB device.
Click the button or, from the Objects menu, select Operation Log, Operation Log View.

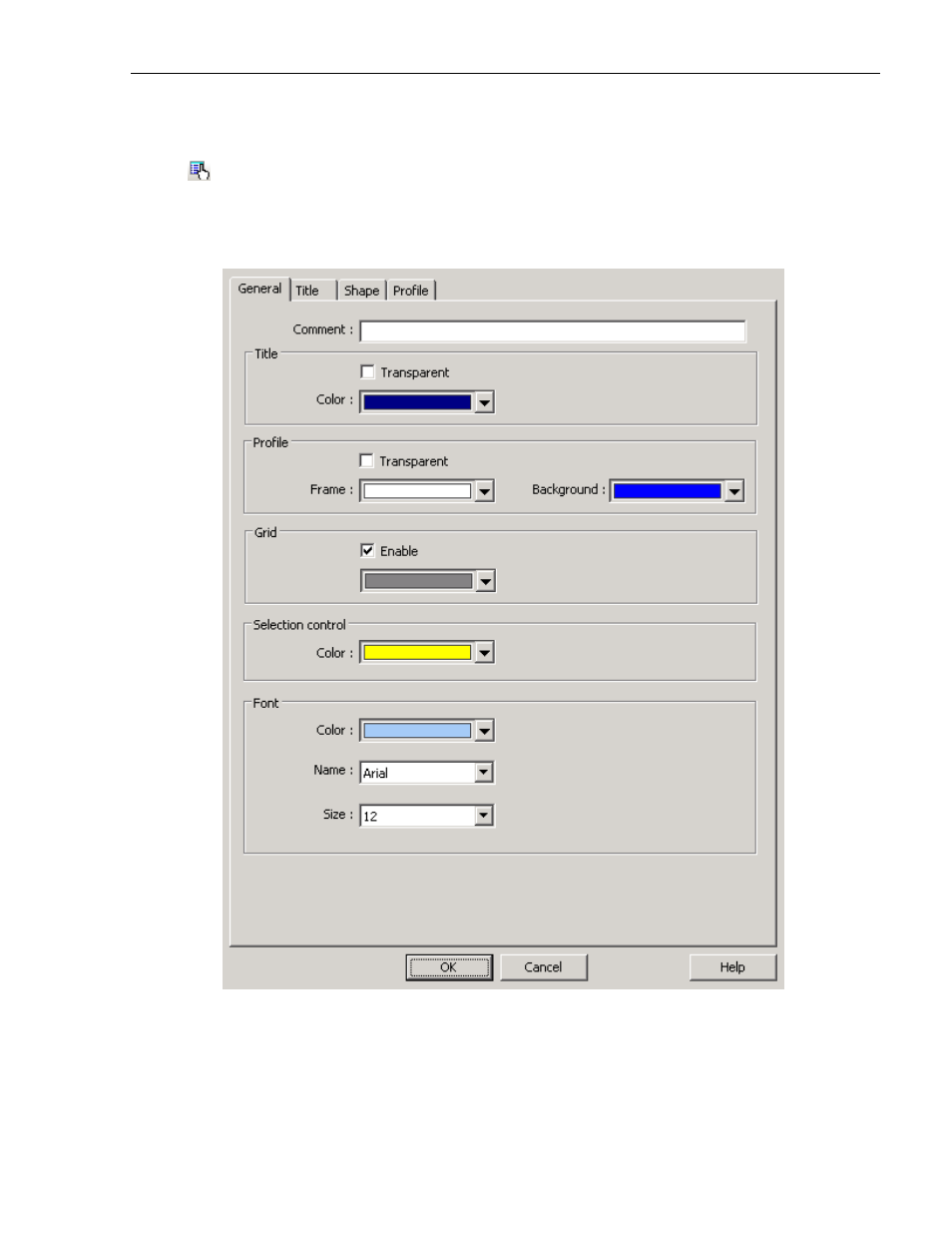

General Tab
The General tab sets up the basic appearance of the Operation Log View.
1. Comment: Enter a text description of the object (optional).
2. Title: Specify how the title of the object is to appear. The title is the header that appears above each column
in the view. Click the Transparent checkbox to have the background of the title be the same as the color of
the window. If the Transparent box is unchecked, select a background color for the title. The foreground
color of the title text is the same as that selected for the data.
