222 EZwarePlus Programming Manual
1010-1015, Rev. 03
Chapter 16 – Operation Log
The Operation Log is a mechanism that records operator actions to an SQLite database file. Only user-triggered
actions can be logged, such as a Set Bit, Function Key, Numeric Input, etc. The Operation Log consists of two parts –
Configuration and View.
 The L and HD Series do not support the Operation Log.
Configuration Settings

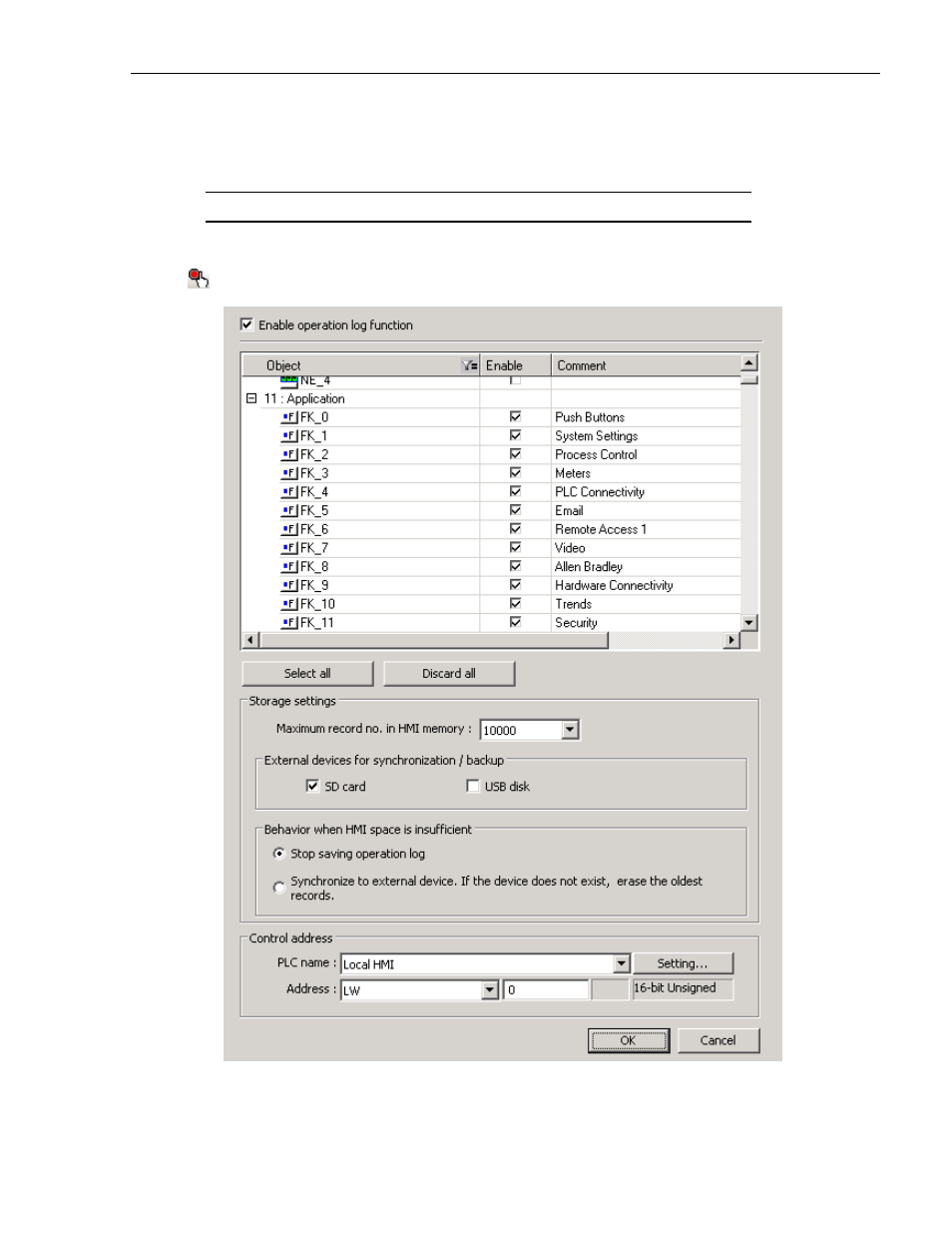

Click the button or, from the Objects menu, select Operation Log, Operation Log Settings.
The text in the Comment column is recorded in the log, along with date/time, value, and certain other information.
The Comment text is the same text as that which appears as the Comment in the object’s Properties dialog.
