Maple Systems 5000HD Series - Manual (Page 111)

EZwarePlus Programming Manual 105
1010-1015, Rev. 03

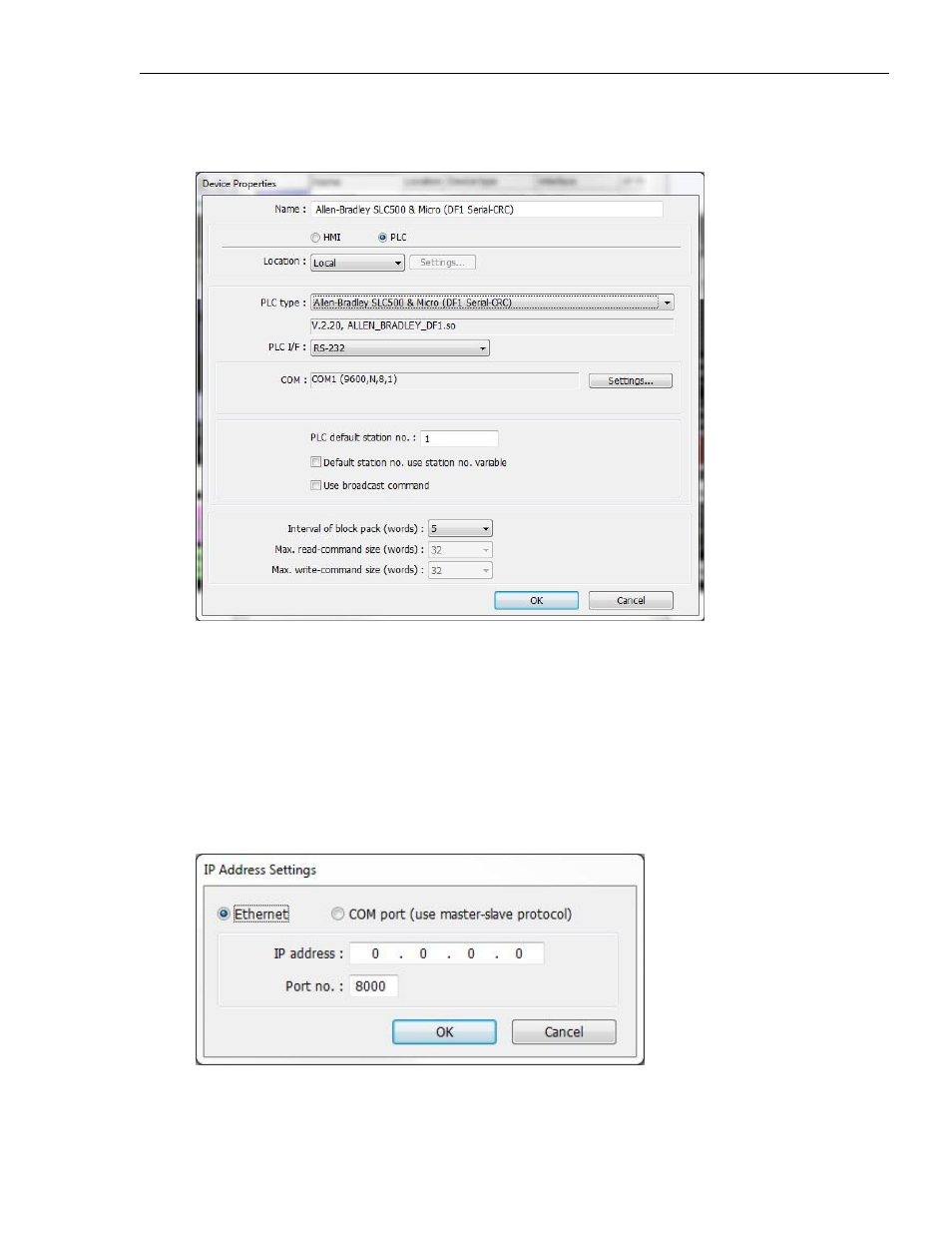

Device tab settings:
1. Click the New… button. The Device Properties dialog appears.
 You can “export” a project created for one PLC brand to a different PLC brand by loading the
project file into EZwarePlus, then entering a different PLC type in this box. EZwarePlus will go through
your entire project and attempt to change each reference to PLC data registers to a logical selection
for the new PLC protocol; however, we strongly recommend that you review these changes to assure
that they are satisfactory.
2. Make sure the PLC button is selected.
3. There are two choices for Location – either Local or Remote. Select Local if the PLC will be connected
directly to the HMI. Select Remote if the PLC will be connected to a remote HMI via Ethernet. If
Remote is selected, then click the Settings button and configure the appropriate IP settings.
