System message windows – Maple Systems 5000HD Series User Manual
Page 152
146
EZwarePlus Programming Manual
1010-1015, Rev. 03
To display the fast selection button:

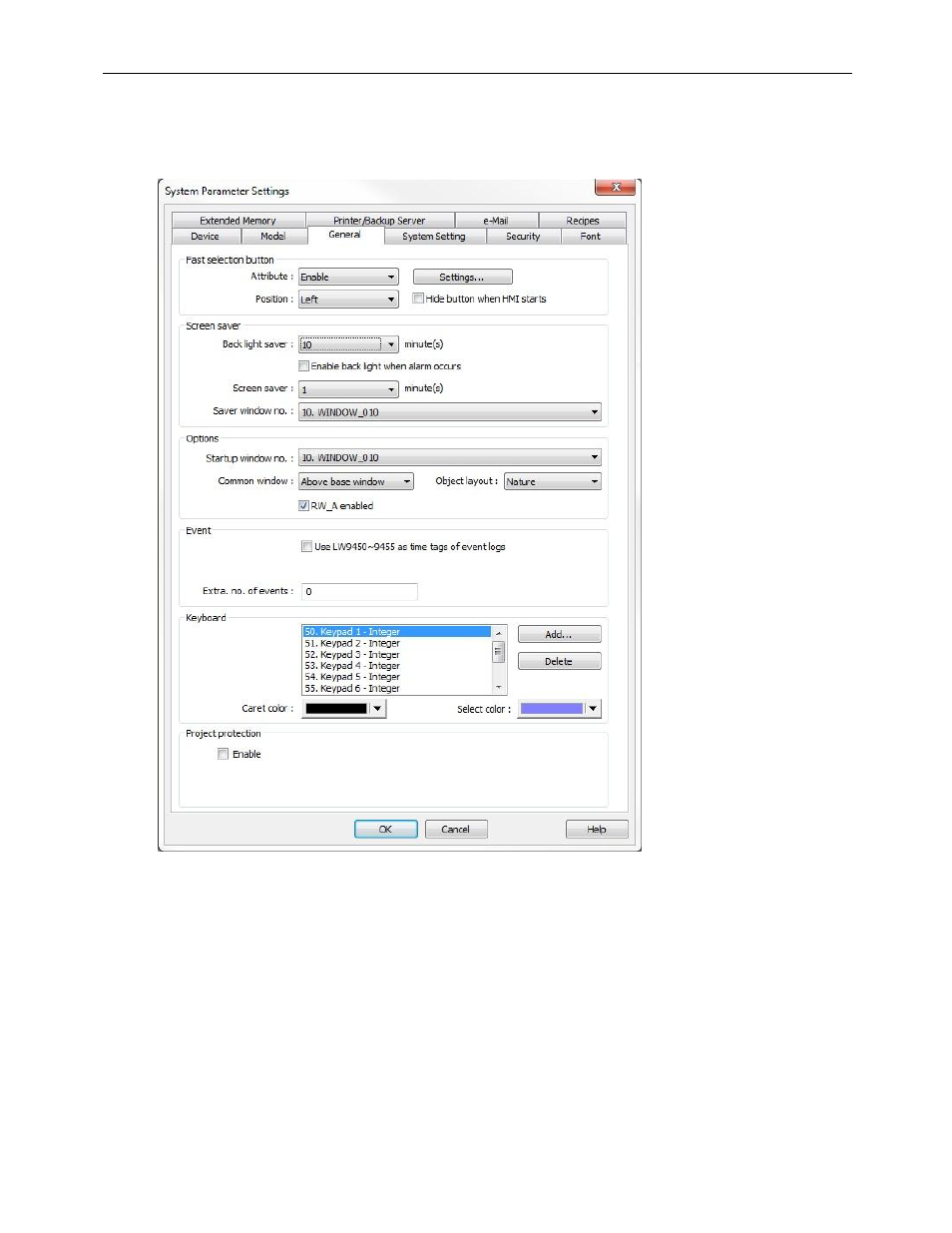

1. Select Edit > System Parameters. The System Parameters Setting Dialog
appears. Select the General tab.
2. In the Fast selection button section, select Enable from the Attribute drop-down menu.
3. Select either Right or Left from the Position drop-down menu to select whether the button will appear in the
right-lower corner or left-lower corner of the screen.
4. Click Settings... Click the Use shape checkbox, and then click the Shape Library… button.
5. Select a shape for your fast selection button and click OK.
6. Click OK.
The Fast Selection window can only call full screen windows, not popup windows. Therefore, you cannot use
Function Key Objects configured to Display popup window in Fast Selection windows.
