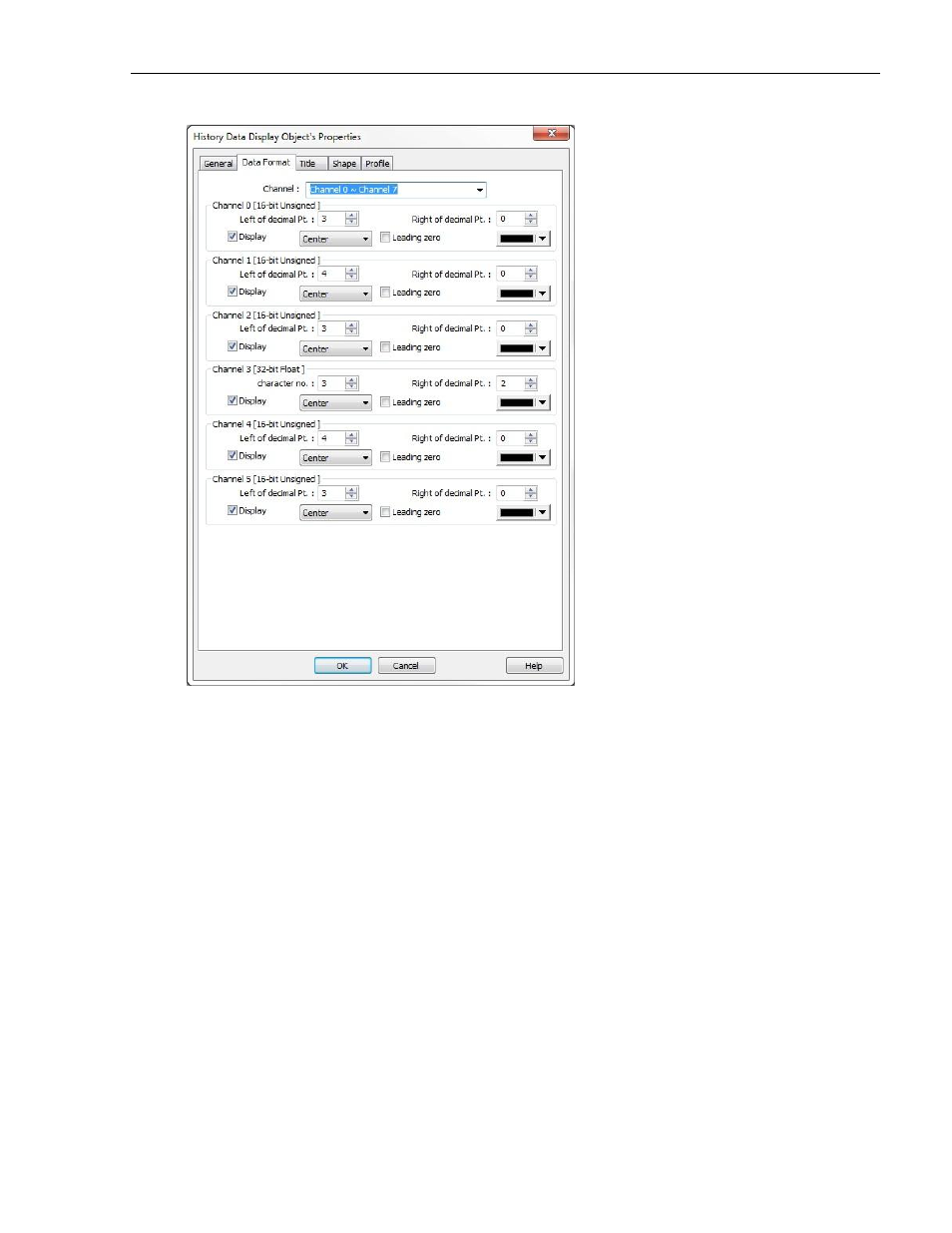

Data Format tab: Used to configure how the data appears for each column:
1. Channel: Channels are configured in groups of eight (maximum of 64 channels). Use this pull-down box to
select each group.
2. Channel #0-63 (description in parentheses tells you what format is used for that data variable).
3. Display checkbox: Check to enable viewing that data variable.
4. Left of decimal Pt.: Determines the number of digits that can be displayed to the left of the decimal point.
5. Right of decimal Pt.: Determines the number of digits that can be displayed to the right of the decimal point.
If 0, then no decimal point is displayed.
6. Alignment: Options are center, right, and left justified.
7. Leading zero: Check to display leading zeroes
8. Color: Select the color used to display the data.
