234 EZwarePlus Programming Manual
1010-1015, Rev. 03

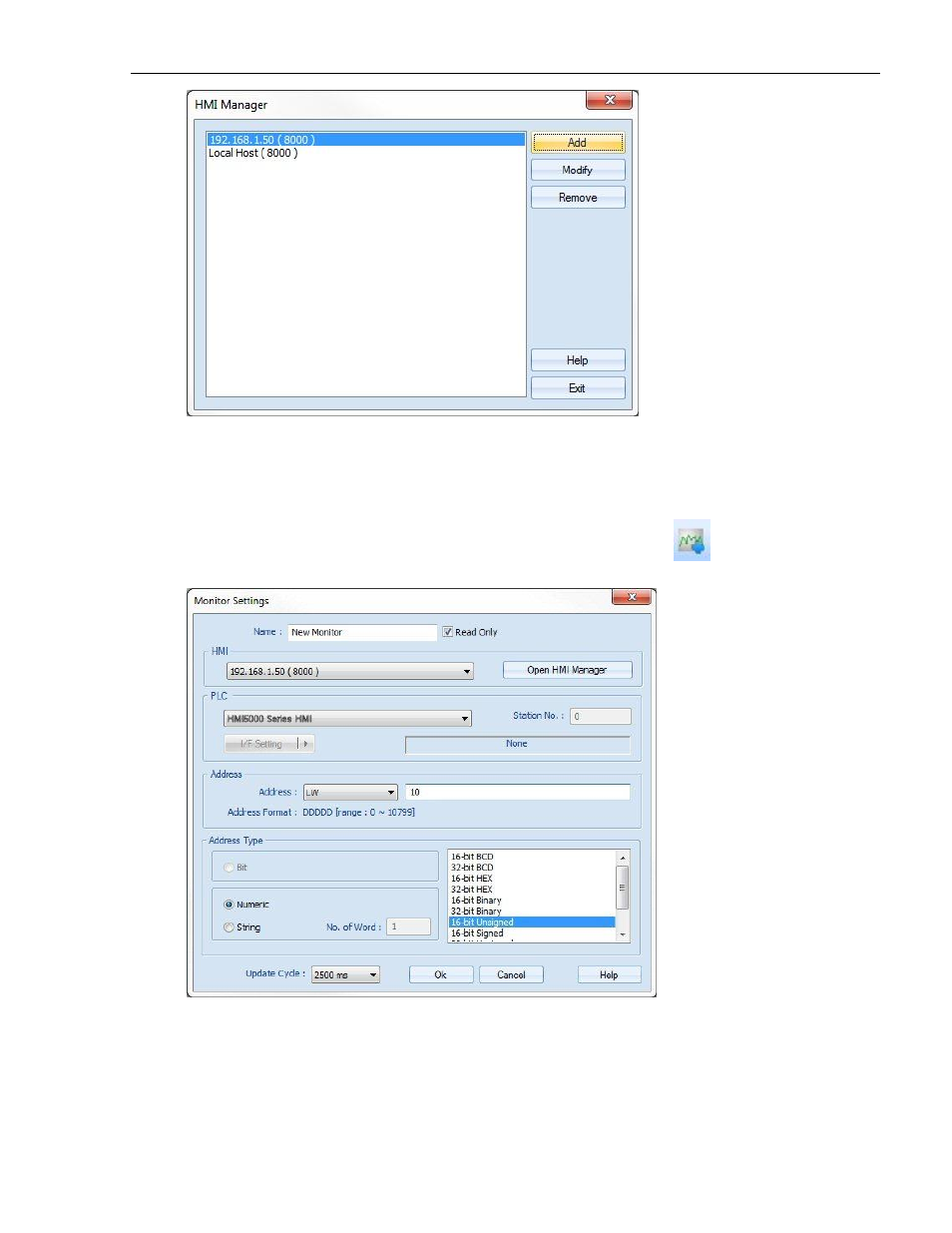

The next step is to add address monitors in the EasyWatch window to view registers in an HMI and PLC.
To add a Monitor object to the project:
1. Open the Monitor Settings window by clicking on the Objects menu and selecting Add Object > Add
Monitor, or by clicking on the Add New Address Monitor icon in the toolbar.
2. Enter a name for the Monitor object or use the default.
3. Uncheck the Read only checkbox if you want to modify the value in the register using EasyWatch.
4. Select the HMI to connect through. All of the HMIs configured in the HMI Manager are available in the drop-
down list.
