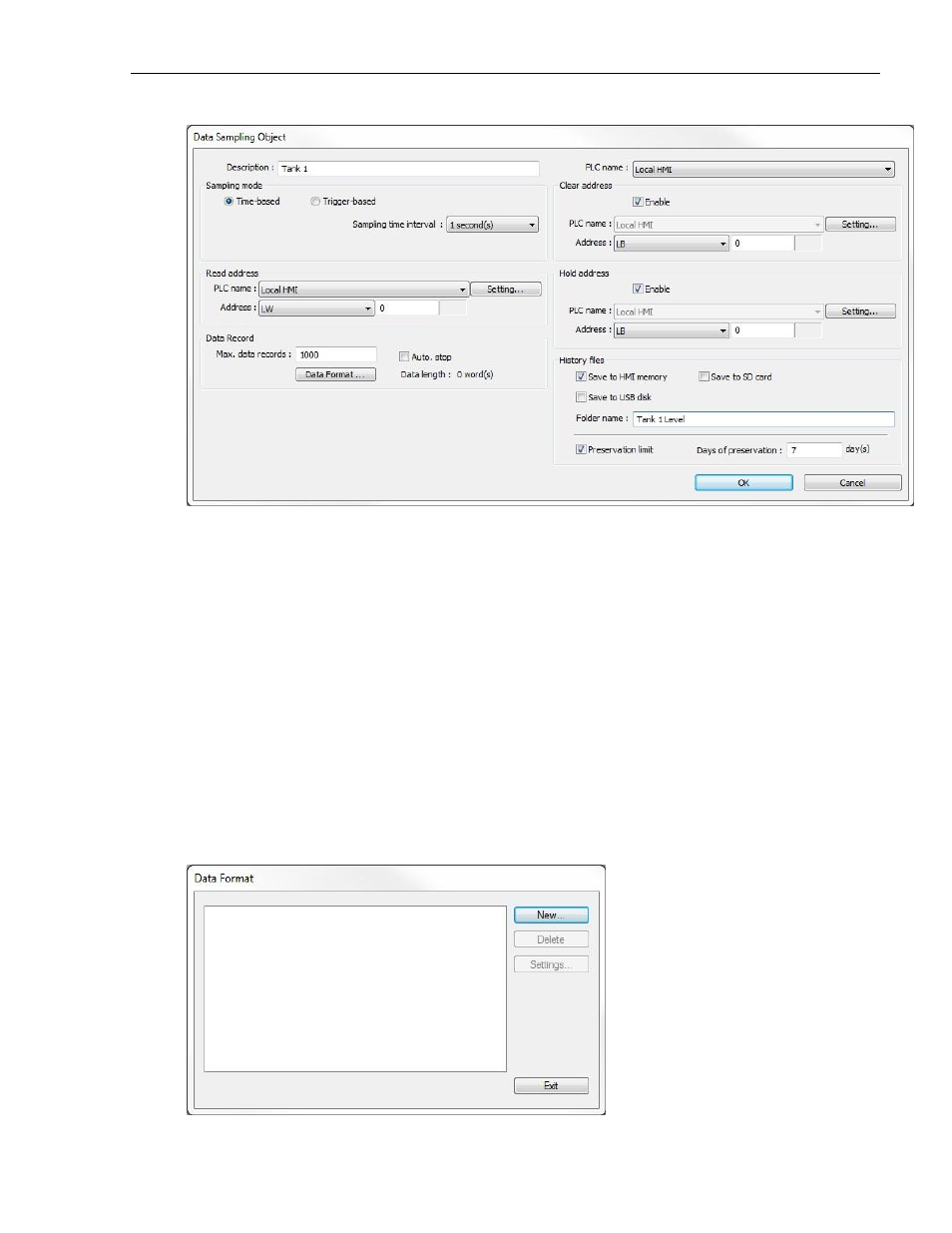

2. Click New… to create a new data sampling object.
3. Description: Enter a name for the object. This isn't necessary, but will help in later identification of the Data
Sampling object when configuring the Trend Display.
4. Sampling Mode: This can be either Time-based or Trigger-based. With Time-based selected, the sampling
interval can range from 0.1 seconds to 120 minutes. With Trigger-based selected, a PLC bit-address can be
configured to trigger each sample. The Mode can be OFF > ON, ON > OFF, or OFF <-> ON (toggle).
5. The Read address is the PLC register being sampled. Click the Setting… button to select the Device Type and
Address for the Data Sampling Object.
6. Max data records: Sets the maximum number of records to display in the Event Display (Real-time mode),
up to 86,400 (1 sample/sec * 24 hr). If Auto. stop is selected, data sampling automatically stops when the
number of records in Max data records has been reached. Otherwise, the existing logged data will continue
to be recorded in the datalog file beyond the number of records (samples) configured in the Max data
records field.
7. Click the Data Format... button to configure the format of each logged item. The Data Format dialog
appears.
