2. Address range (unit: word): Use this area to select the total number of RW (recipe word) registers or
EMx (Extended Memory) registers that are used for the recipe or extended memory file. In the
example above, RW0 thru RW100 will be used.
3. Select your data format: Use this area to enter how each data register element is interpreted by the
HMI. The data collected and stored in recipe/extended memory files is in binary format and does not
contain any information about how each data should be interpreted by the HMI (for example, is the
data in 16-bit signed integer format or BCD?). Therefore, the data format is used to define how each
data element is formatted (i.e., Signed vs. Unsigned, 16-bit vs. 32-bit, Float, String, etc.).

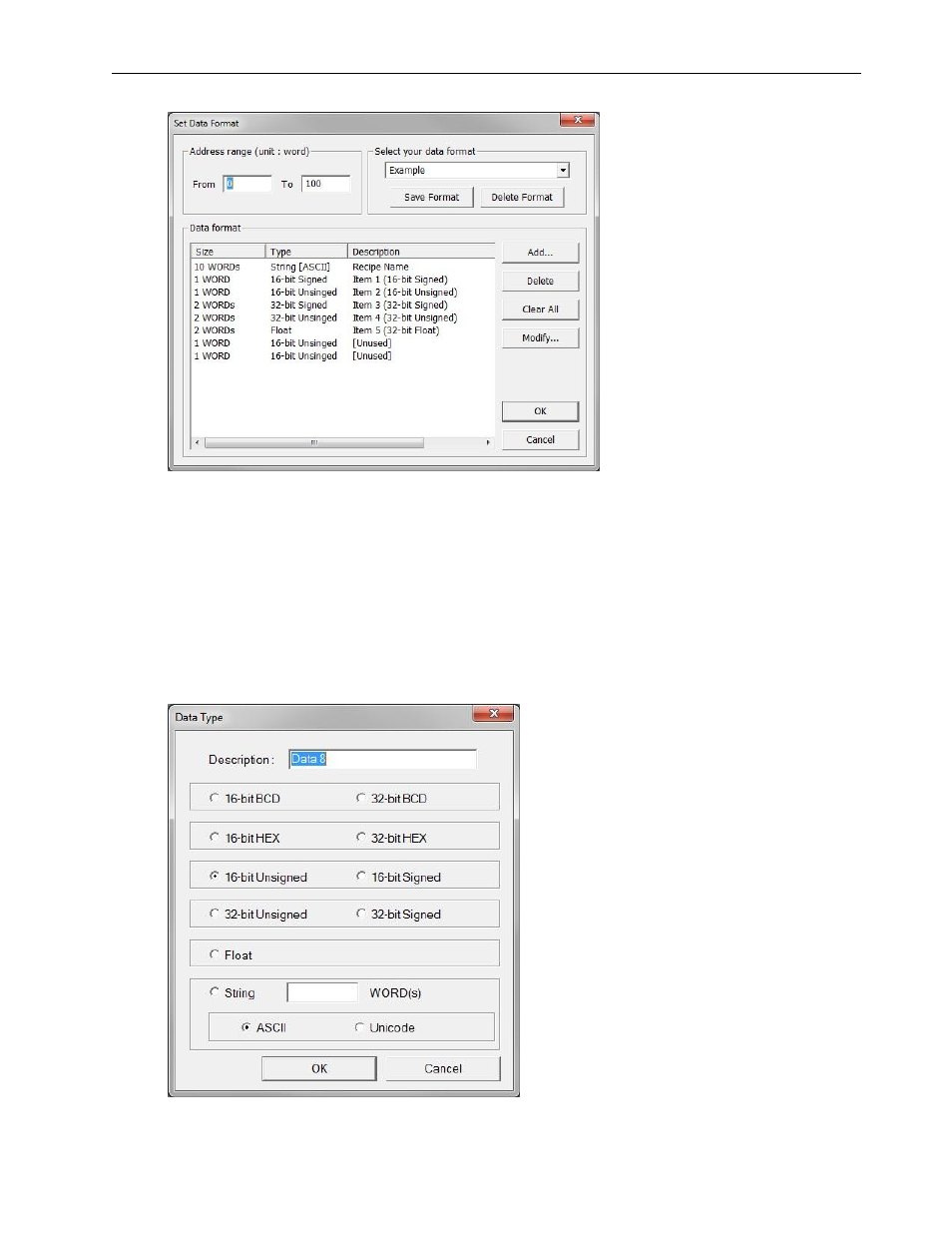

a. Add: Click to add a new data register format. The following dialog box appears:
