7. Select the format for how the date and time is displayed in the Date: and Time: drop-down boxes.
8. Click the Shape tab to configure a background shape, if you'd like one.
9. Click the Font tab to configure the size of the font.
10. Click OK and click in the work area of EZwarePlus to place the Alarm Bar. Drag it to place it in the desired
location.
Displaying Alarms Using the Event Display Object
The Event Display Object takes the event strings sent to it from the Event (Alarm) Log Object and displays them on a
window screen as a list. The list contains all of the events that have occurred with the most recently triggered event
at the top of the list. You do not have to display the entire list of events on a window screen. You can limit the
viewable events to a ‘scrollable window’ that displays a given number of lines. An acknowledge feature allows the
HMI operator to touch an event recorded in the event list to display a popup window. The popup window can then be
used to display further instructions to the HMI operator or to perform some operation.
To create an Event Display Object:

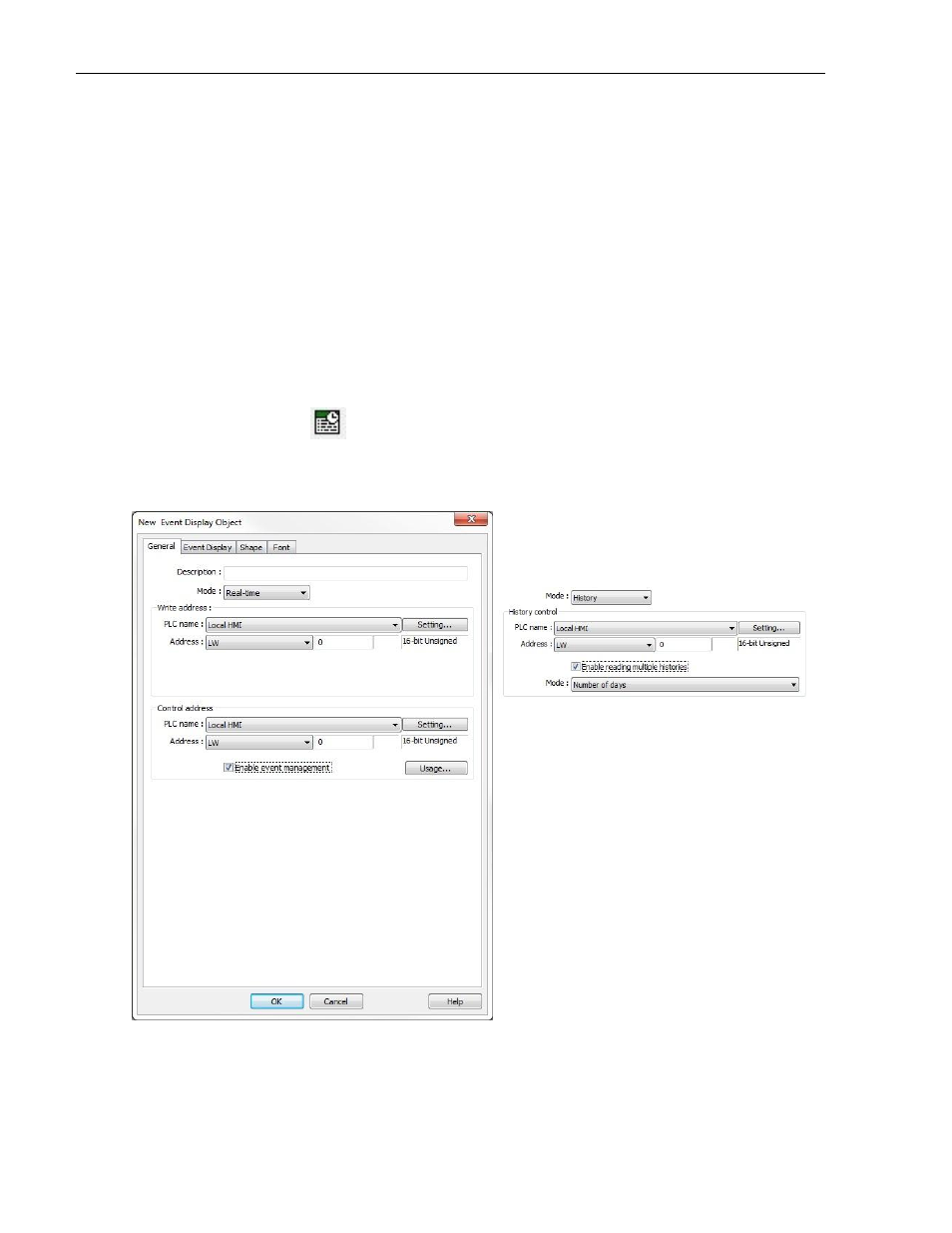

1. From the Objects menu, click Alarm > Event Display or click the Event Display icon in the Object 2 toolbar.
The New Event Display Object dialog box appears.
2. Use the Description: box to enter a title for the Event Display object. A description is not necessary but does
help identify the purpose of the part.
3. Select either Real-time or History as the mode for the events to be displayed.
In Real-time mode, the Write address is the register where the alarm or event writes the window number
