EZwarePlus Programming Manual 109
1010-1015, Rev. 03
8. Pass through: select the Port Number to use in Pass-Through mode. The same setting needs to be
made in the Utility Manager when Pass-Through is selected.
Auto Resizing Using the Model Tab
This tab can be used to automatically resize your project when changing to another HMI model with a
different size touchscreen. The project and all objects and graphics will be proportionately resized
automatically.
 To auto resize your project using the Model tab in the System Parameters dialog:
1. In the Model tab, select a different display size from the HMI model drop-down box and click OK.

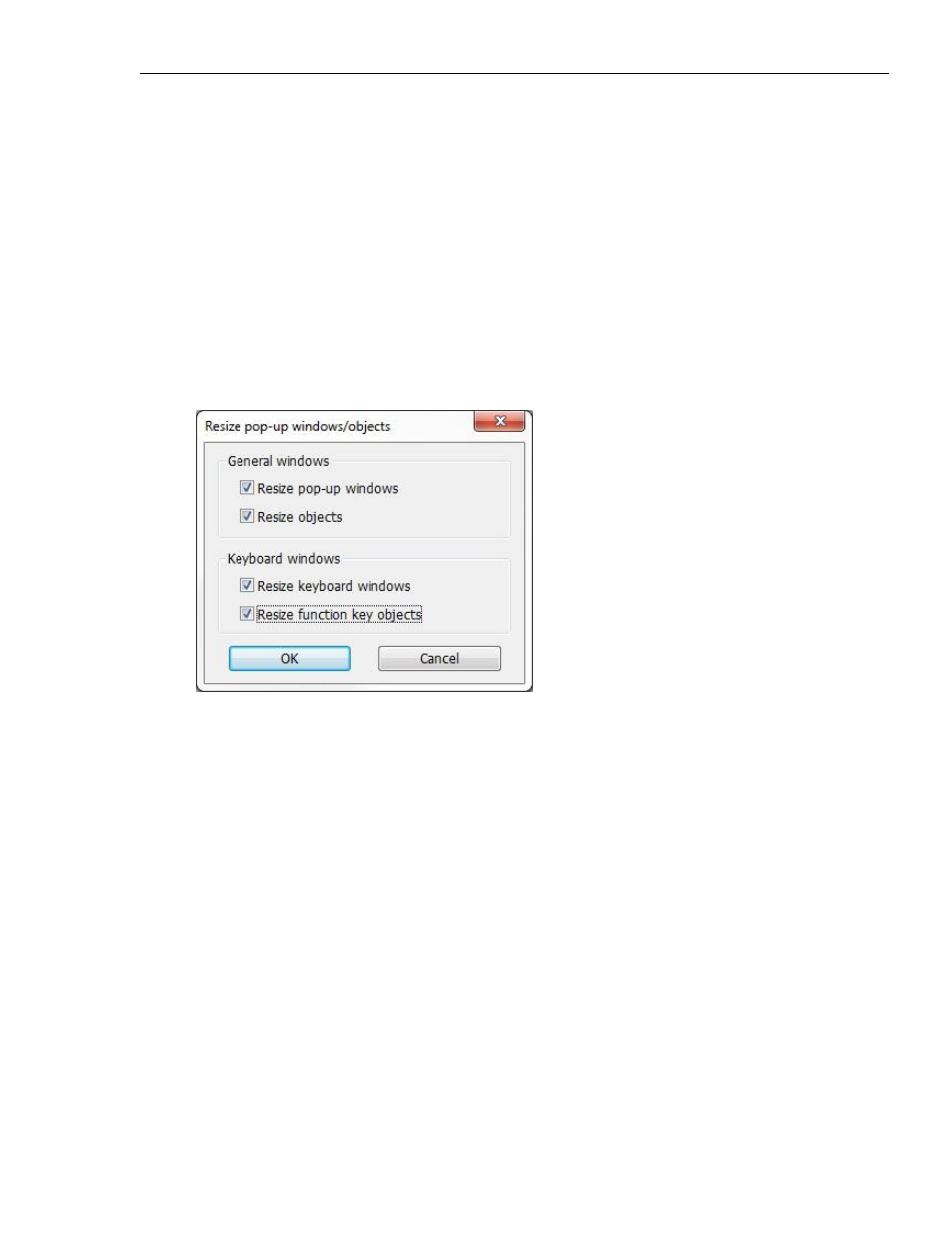

2. The Resize popup windows/objects dialog appears.
3. Check all the resize options and then click OK. The project will automatically resize.
