EZwarePlus Programming Manual 47
1010-1015, Rev. 03
3. In the File name text box, type Sample_Project.mtp.
4. Click Save. The file is saved onto your computer hard drive and the main screen of EZwarePlus reappears.

Compiling your first project

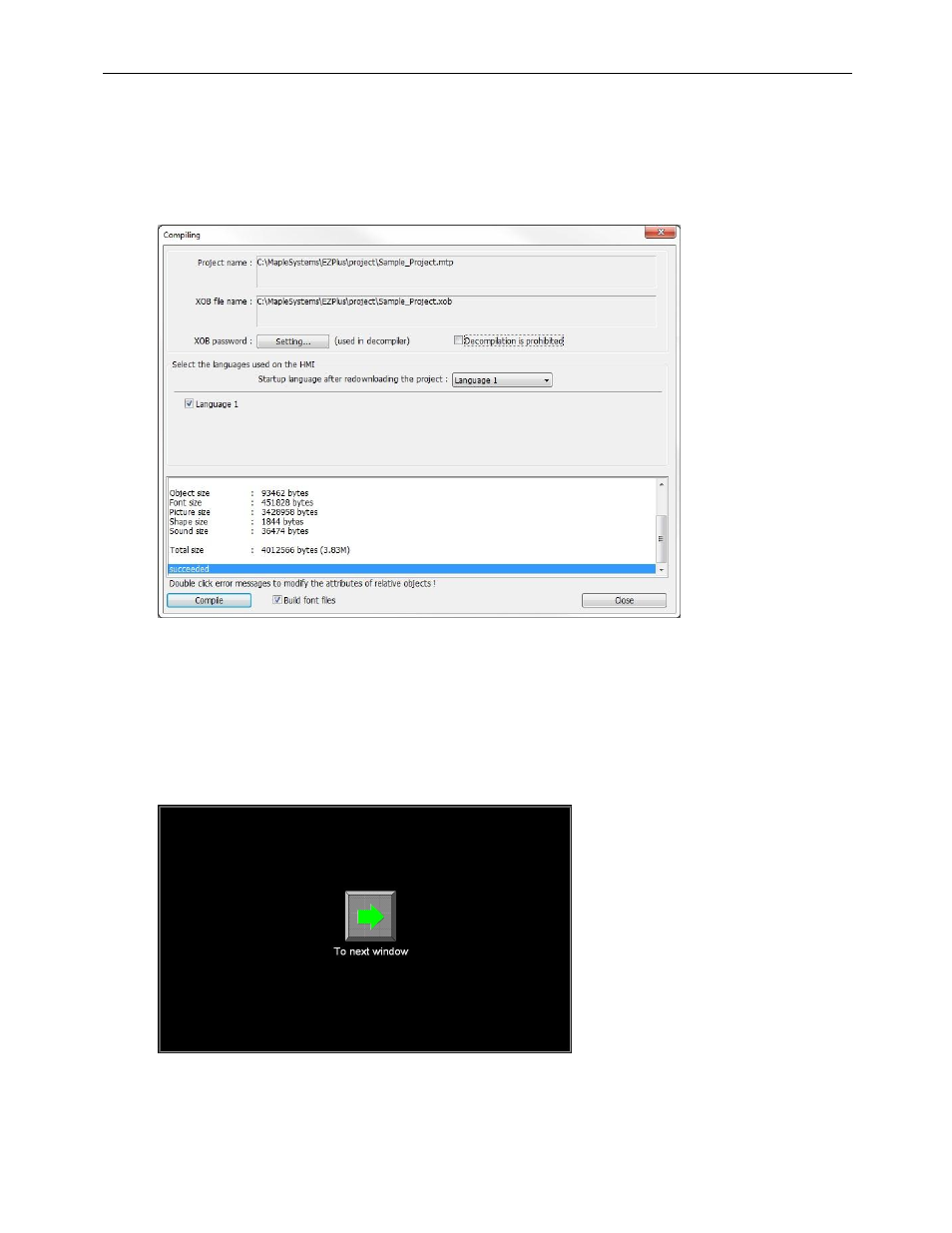

1. From the Tools menu, click Compile. The Compiling dialog box appears.
2. Click the Compile button. EZwarePlus will compile your project and display error results.
3. If no errors occur, click Close. The main screen of EZwarePlus reappears. If errors have occurred, repeat the
steps in the “Creating a Sample Project” section.

Simulating your first project
1. Click Tools in the top menu bar and select Off-line Simulation (Ctrl+T) or click the Off-line Simulation icon in
the Project Toolbar. The Simulation Window will appear on the screen.
2. Click the arrow button to go to the next window.
