DS3134
133 of 203

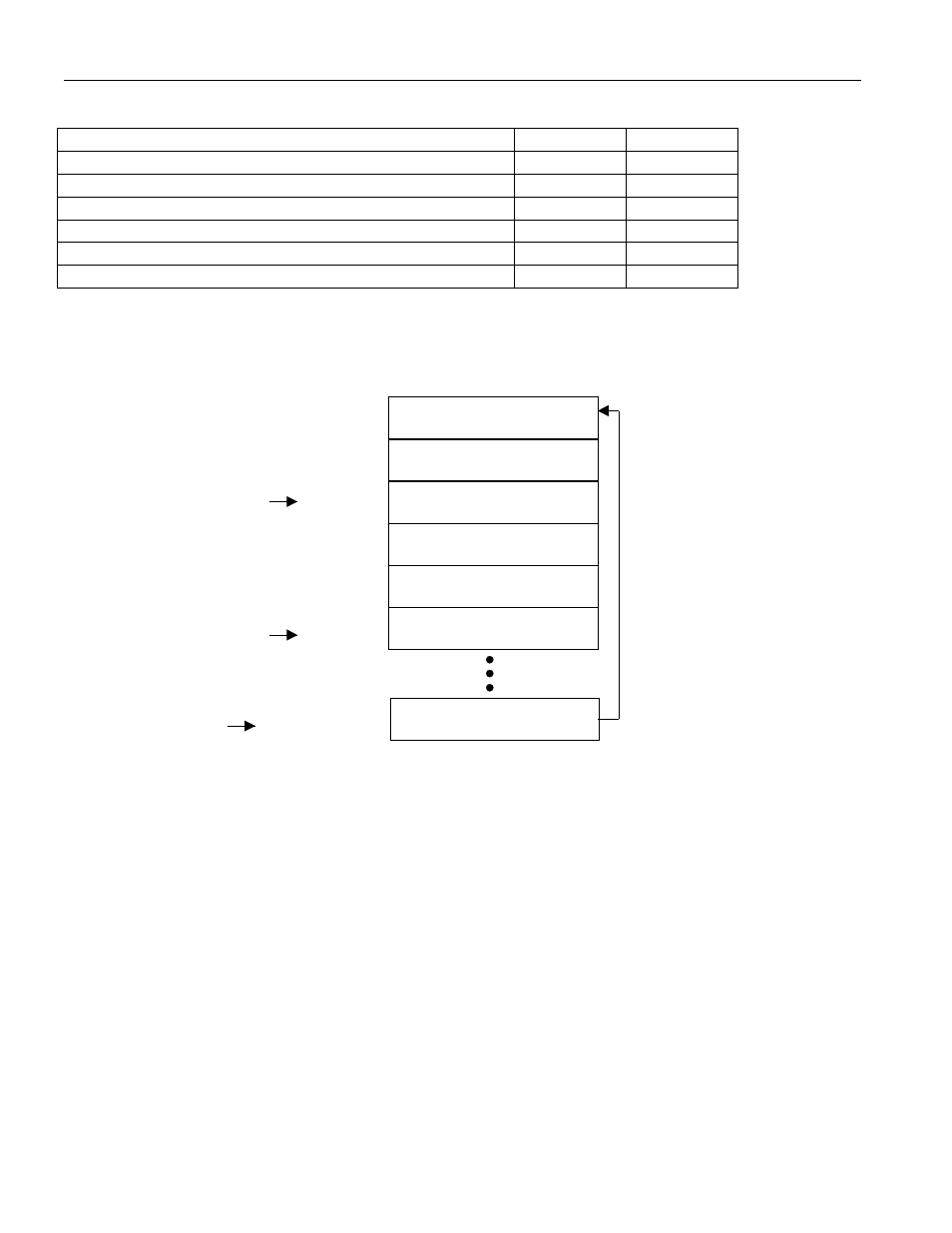

Transmit Pending Queue Internal Address Storage Table 8.2.3A
Register Name Acronym Address
Transmit Pending Queue Base Address 0 (lower word) TPQBA0 0800h
Transmit Pending Queue Base Address 1 (upper word) TPQBA1 0804h
Transmit Pending Queue Host Write Pointer TPQWP 080Ch
Transmit Pending Queue DMA Read Pointer TPQRP 0810h
Transmit Pending Queue End Address TPQEA 0808h
Note: Transmit Free Queue End Address is not an absolute address. The absolute end address is “Base +
TPQEA”.
Transmit Pending Queue Structure Figure 8.2.3B
Once the Transmit DMA is activated (by setting the TDE control bit in the Master Configuration register;
see Section 4), it can begin reading data out of the pending queue. It knows where to read data out of the
pending queue by reading the Read Pointer and adding it to the Base Address to obtain the actual 32-bit
address. Once the DMA has read the Pending Queue, it increments the Read Pointer by one dword. A
check must be made to make sure the incremented address does not exceed the Transmit Pending Queue
End Address. If the incremented address does exceed this address, then the incremented read pointer will
be set equal to 0000h.
Status / Interrupts
On each read of the Pending Queue by the DMA, the DMA will set the Status Bit for Transmit DMA
Pending Queue Read (TPQR) in the Status Register for DMA (SDMA). The status bits can also (if
enabled) cause a hardware interrupt to occur. See Section 4 for more details.
dmatpq
Base + 00h
Base + 04h
Base + 08h
Base + 0Ch
Base + 10h
Base + 14h
Base + End Address
Pending Queue Host Write Pointer
Pending Queue DMA Read Pointer
Maximum of 65536
Pending Queue Descriptors
DMA Acquired
Pending Queue Descriptor
DMA Acquired
Pending Queue Descriptor
DMA Acquired
Pending Queue Descriptor
Host Readied
Pending Queue Descriptor
Host Readied
Pending Queue Descriptor
Host Readied
Pending Queue Descriptor
Host Readied
Pending Queue Descriptor
