EVS XT3 Version 11.00 Configuration Manual - Manual (Page 98)

IN6/OUT1 IN5/OUT2 IN4/OUT3 IN3/OUT4 IN2/OUT5 IN1/OUT6
#REC #PLAY
Prim.
Link Sec.
Link Prim.
Link Sec.
Link Prim.
Link Sec.
Link Prim.
Link Sec.
Link Prim.
Link Sec.
Link Prim.
Link Sec.
Link

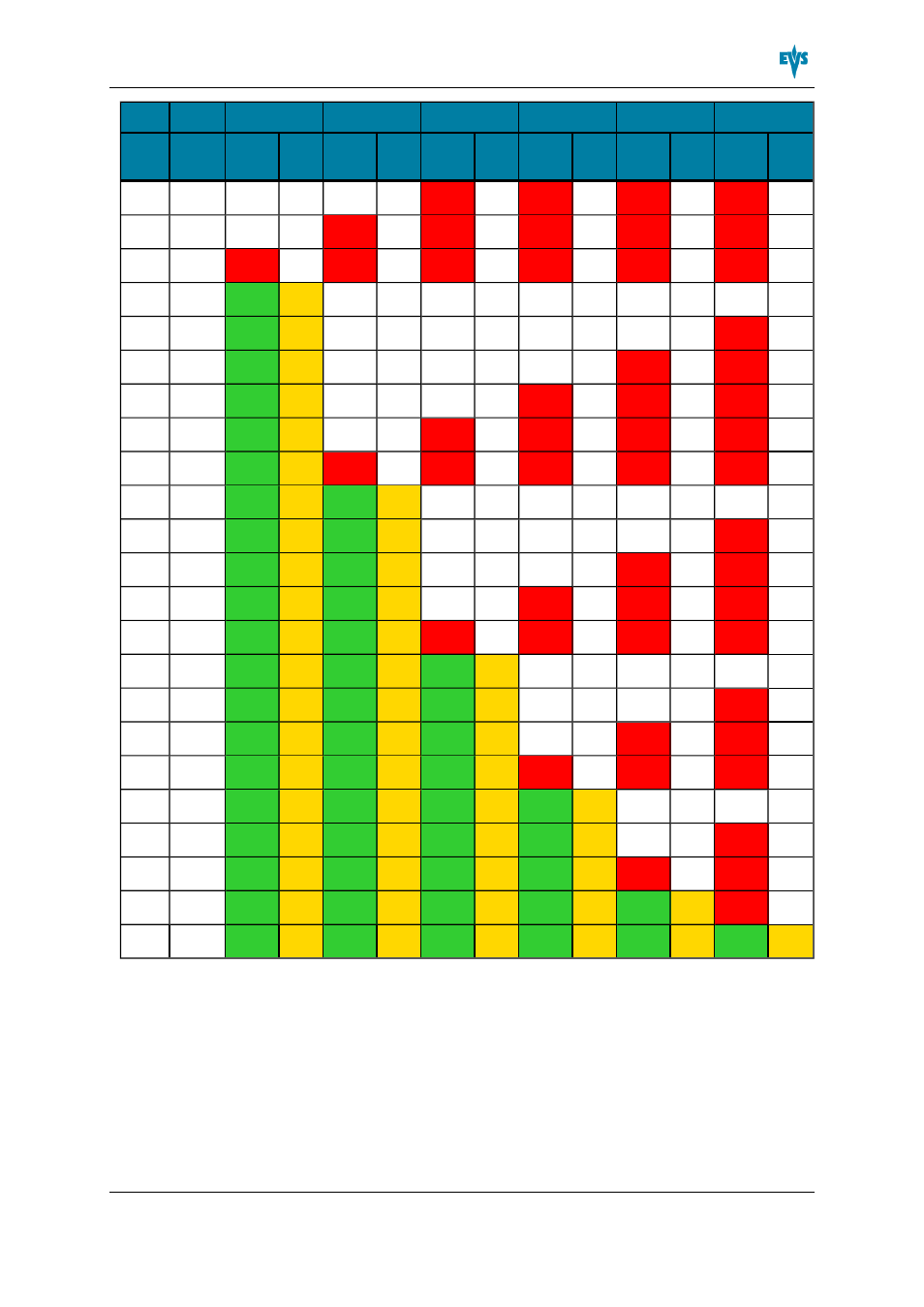

4 0 REC4 REC3 REC2 REC1
5 0 REC5 REC4 REC3 REC2 REC1
6 0 REC6 REC5 REC4 REC3 REC2 REC1
0 1 PLAY1 MIX1
1 1 PLAY1 MIX1 REC1
2 1 PLAY1 MIX1 REC2 REC1
3 1 PLAY1 MIX1 REC3 REC2 REC1
4 1 PLAY1 MIX1 REC 4 REC3 REC2 REC1
5 1 PLAY1 MIX1 REC5 REC 4 REC3 REC2 REC1
0 2 PLAY1 MIX1 PLAY2 MIX2
1 2 PLAY1 MIX1 PLAY2 MIX2 REC1
2 2 PLAY1 MIX1 PLAY2 MIX2 REC2 REC1
3 2 PLAY1 MIX1 PLAY2 MIX2 REC3 REC2 REC1
4 2 PLAY1 MIX1 PLAY2 MIX2 REC4 REC3 REC2 REC1
0 3 PLAY1 MIX1 PLAY2 MIX2 PLAY3 MIX3
1 3 PLAY1 MIX1 PLAY2 MIX2 PLAY3 MIX3 REC1
2 3 PLAY1 MIX1 PLAY2 MIX2 PLAY3 MIX3 REC2 REC1
3 3 PLAY1 MIX1 PLAY2 MIX2 PLAY3 MIX3 REC 3 REC2 REC1
0 4 PLAY1 MIX1 PLAY2 MIX2 PLAY3 MIX3 PLAY4 MIX4
1 4 PLAY1 MIX1 PLAY2 MIX2 PLAY3 MIX3 PLAY4 MIX4 REC1
2 4 PLAY1 MIX1 PLAY2 MIX2 PLAY3 MIX3 PLAY4 MIX4 REC2 REC1
1 5 PLAY1 MIX1 PLAY2 MIX2 PLAY3 MIX3 PLAY4 MIX4 PLAY5 MIX5 REC1
0 6 PLAY1 MIX1 PLAY2 MIX2 PLAY3 MIX3 PLAY4 MIX4 PLAY5 MIX5 PLAY6 MIX6
