Example: 1SLSM 3x + 2REC + 1PLAY MIX

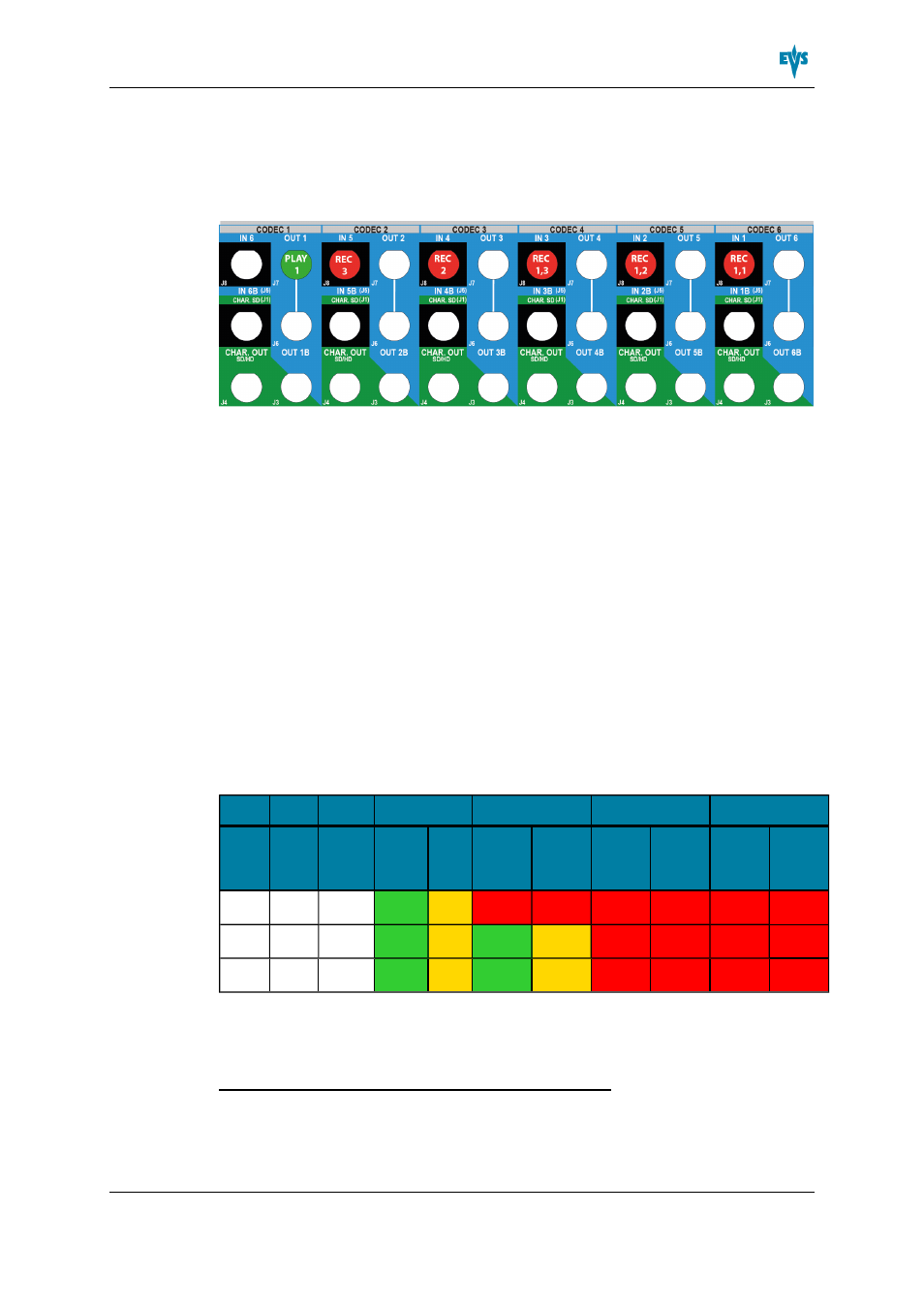

The BNC connectors to be used as record and play channels in an SLSM configuration
with 1SLSM 3PH + 2REC + 1PLAY MIX need to be cabled as shown below:
SLSM 2R/CM Configurations
Introduction
The 2R/CM
1
configurations make use of the secondary link of the codec module of a
record channel as an independent recorder. See "Channel Assignment in 2R/CM
Configurations" on page 89.
XT3 4U Servers
Available 2R/CM SLSM 2x Configurations
The table below shows the possible combinations of SLSM 2 Phase and 2R/CM in
SD/HD configurations with a XT3 4U server, and how the BNC connectors should be
cabled:
IN4/OUT1 IN3/OUT2 IN2/OUT3 IN1/OUT4
#REC
SLSM
2x
#REC #PLAY
Prim.
Link Sec.
Link Prim.
Link Sec.
Link Prim.
Link Sec.
Link Prim.
Link Sec.
Link
3 0 1 PLAY1 MIX1 REC2,1 REC3,2 REC1,2 REC3,1 REC1,1 REC2,2
1 2 2 PLAY1 MIX1 PLAY2 MIX2 REC1,2 REC3 REC1,1 REC2
2 0 2 PLAY1 MIX1 PLAY2 MIX2 REC1,2 REC2,2 REC1,1 REC2,1
1
Abbreviation standing for ‘2 record channels par codec module’. This
feature allows using the secondary link of the codec module of a
recorder channel as an independent recorder channel.
