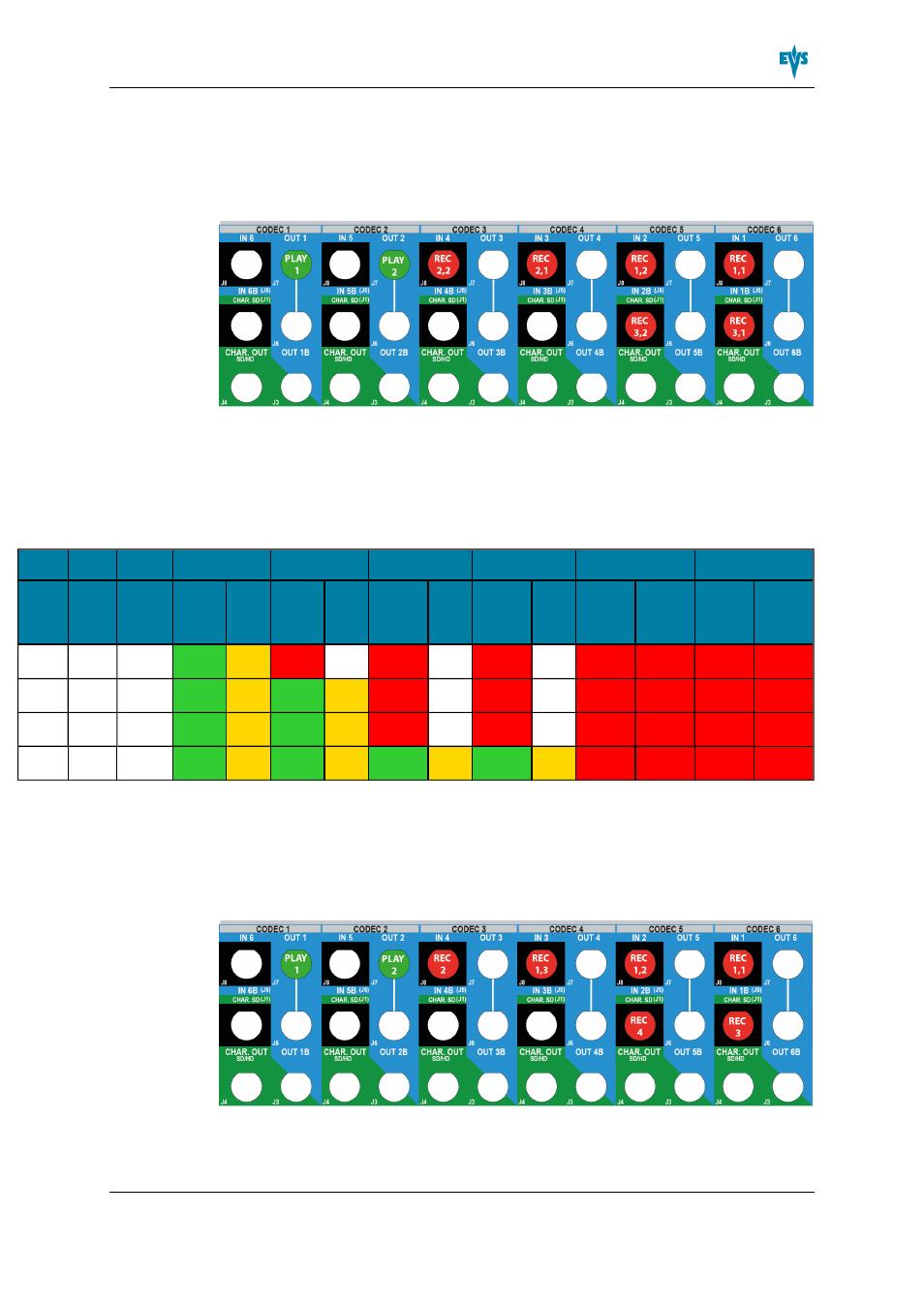

Example: 3 SLSM 2x + 2 PLAY MIX
The BNC connectors to be used as record and play channels in an SLSM configuration
with 3SLSM 2PH + 2 PLAY MIX in 2R/CM mode need to be cabled as shown below:
Available 2R/CM SLSM 3x Configurations
The table below shows the possible combinations of SLSM 3 Phase and 2R/CM in
SD/HD configurations with a XT3 6Userver, and how the BNC connectors should be
cabled:
IN6/OUT1 IN5/OUT2 IN4/OUT3 IN3/OUT4 IN2/OUT5 IN1/OUT6
#REC
SLSM
3x
#REC #PLAY
Prim.
Link Sec.
Link Prim.
Link Sec.
Link Prim.
Link Sec.
Link Prim.
Link Sec.
Link Prim.
Link Sec.
Link Prim.
Link Sec.
Link
1 4 1 PLAY1 MIX1 REC3 REC2 REC1,3 REC1,2 REC5 REC1,1 REC4
1 3 2 PLAY1 MIX1 PLAY2 MIX2 REC2 REC1,3 REC1,2 REC4 REC1,1 REC3
2 0 2 PLAY1 MIX1 PLAY2 MIX2 REC2,1 REC1,3 REC1,2 REC2,3 REC1,1 REC2,2
1 1 4 PLAY1 MIX1 PLAY2 MIX2 PLAY3 MIX3 PLAY4 MIX4 REC1,2 REC2 REC1,1 REC1,3
Example: 1 SLSM 3x + 3 REC + 2 PLAY MIX
The BNC connectors to be used as record and play channels in an SLSM configuration
with 1 SLSM 3PH + 3 REC + 2 PLAY MIX in 2R/CM mode need to be cabled as shown
below:
