Example

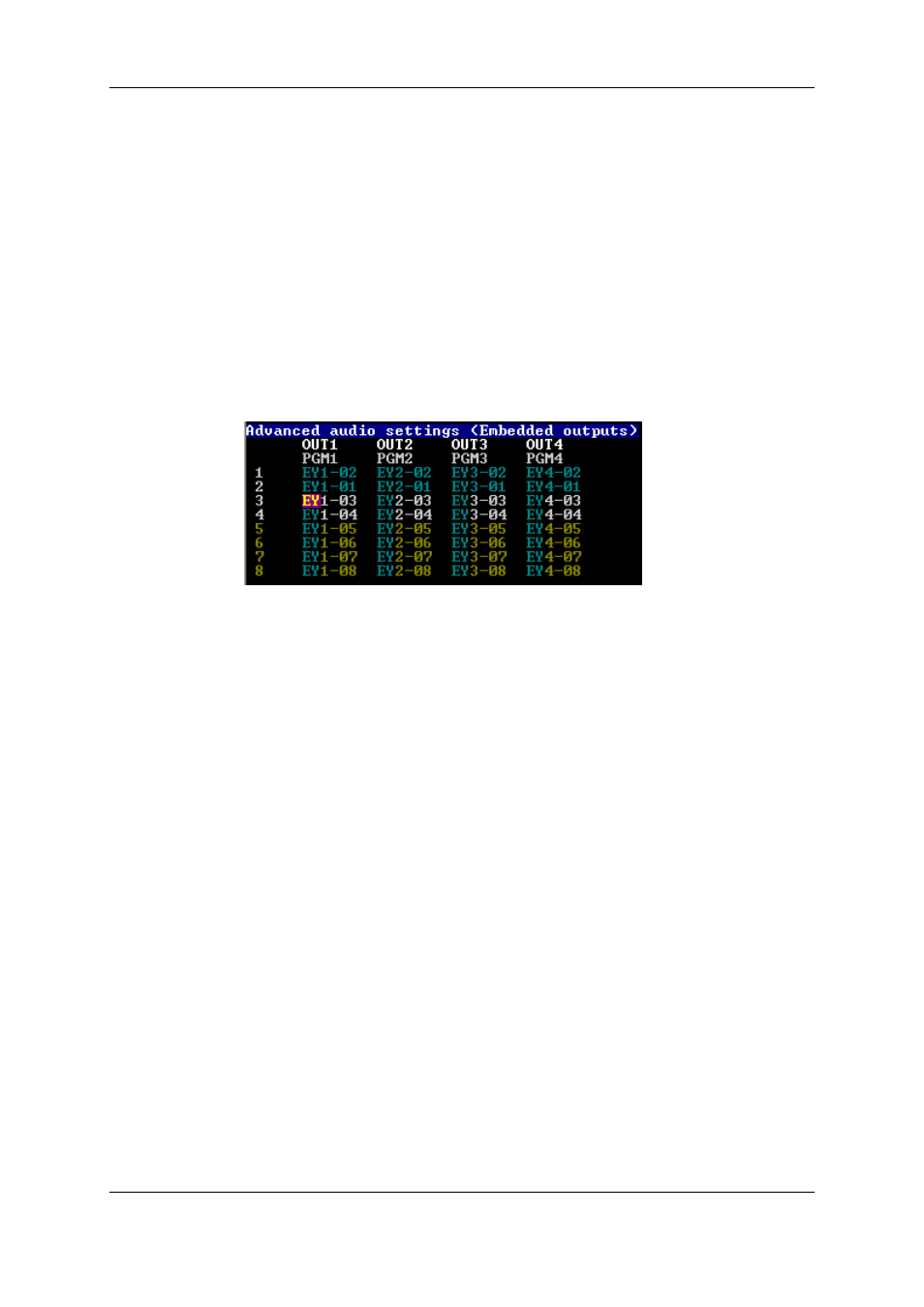

In the screenshot displayed below, the audio mono channels defined on the A/V material
on the EVS server are allocated to the play channels in the following way:
The audio outputs are in dolby embedded format.
By default, an audio mono channel of the A/V material stored the EVS server is sent to the
corresponding embedded channel of the play channel. In this situation, this is the case for
mono channels from 3 to 8.
For mono channels 1 and 2, the default mapping has been changed as follows:
• The audio mono channel 1 of the A/V material is sent to the mono channel 2 of the play
channel, and this for all play channels.
• The audio mono channel 2 of the A/V material is sent to the mono channel 1 of the play
channel, and this for all play channels.
Default Mapping for Audio Inputs and Outputs
Introduction
The tables below present the channel mapping for audio inputs and outputs in the
following configuration:
• XT3 6U chassis
• Maximum number of recorders or players
• Audio hardware configuration: 16 XLR Analog + 16 BNC Digital
In configurations with less recorders or players, the irrelevant rows or columns should be
disregarded.
