SLSM Configurations
Introduction
This section details the available 2 phase and 3 phase SLSM configurations in SD/HD on
XT3servers.
In SLSM 2 Phase configurations, one SLSM recorder accounts for one logical channel,
but corresponds to two physical channels.
In SLSM 3 Phase configurations, one SLSM recorder accounts for one logical channel,
but corresponds to three physical channels.
Note
The SLSM configurations presented below are SLSM configurations in SD/HD.
Specific SLSM configurations for 1080p and 3D dual link and 3G configurations
are presented in the section "3D/1080p SLSM Configurations" on page 107.
XT3 4U Servers
Available SLSM 2x Configurations

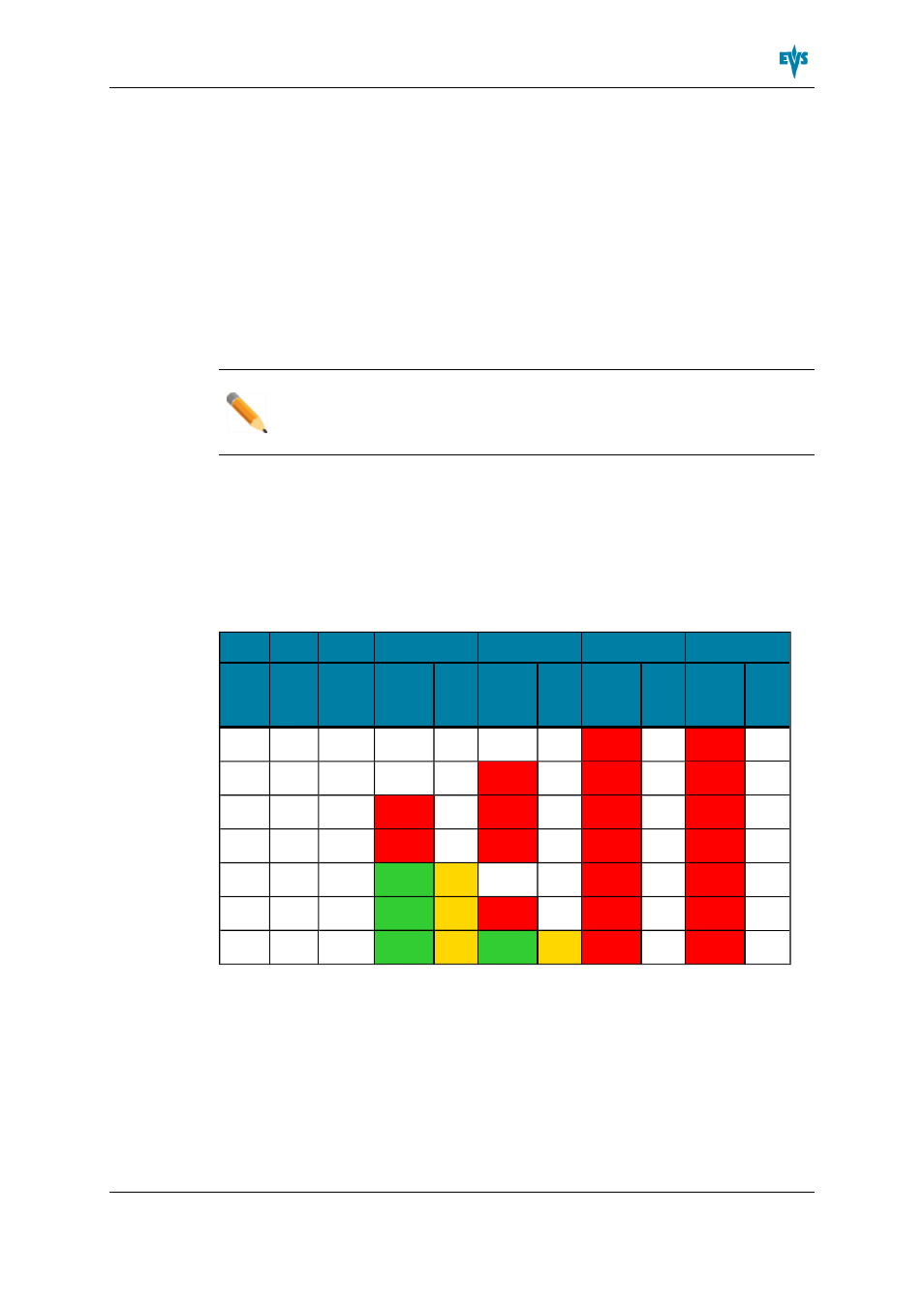

The table below shows the available SLSM 2 Phase configurations in SD/HD with a XT3
4U server, and how the BNC connectors should be cabled:
IN4/OUT1 IN3/OUT2 IN2/OUT3 IN1/OUT4
#REC
SLSM
2x
#REC #PLAY
Prim.
Link Sec.
Link Prim.
Link Sec.
Link Prim.
Link Sec.
Link Prim.
Link Sec.
Link
1 0 0 REC1,2 REC1,1
1 1 0 REC2 REC1,2 REC1,1
1 2 0 REC3 REC2 REC1,2 REC1,1
2 0 0 REC2,2 REC2,1 REC1,2 REC1,1
1 0 1 PLAY1 MIX1 REC1,2 REC1,1
1 1 1 PLAY1 MIX1 REC2 REC1,2 REC1,1
1 0 2 PLAY1 MIX1 PLAY2 MIX2 REC1,2 REC1,1
