Available 2R/CM SLSM 3x Configurations

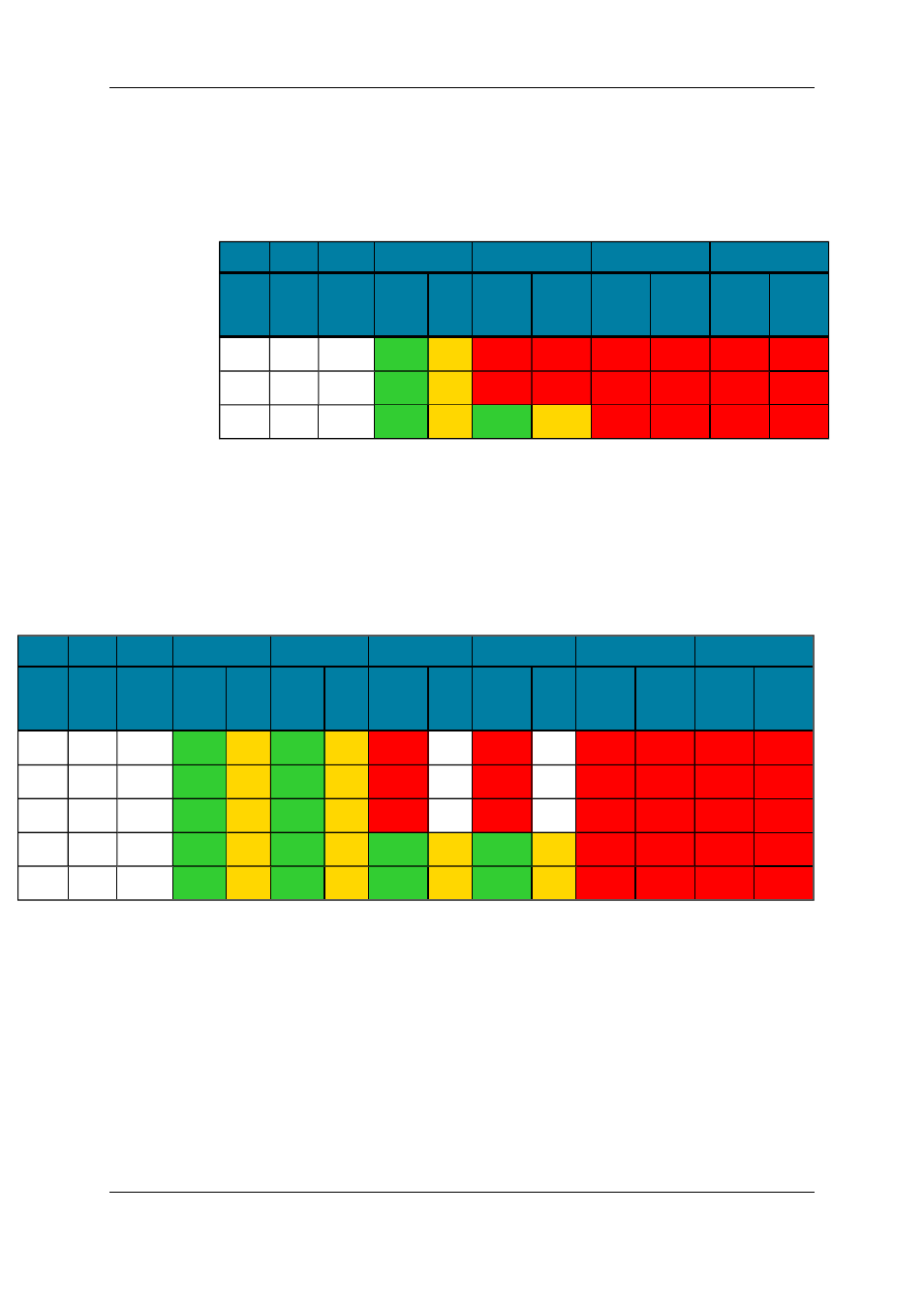

The table below shows the possible combinations of SLSM 3 Phase and 2R/CM in
SD/HD configurations with a XT3 4U server, and how the BNC connectors should be
cabled:
IN4/OUT1 IN3/OUT2 IN2/OUT3 IN1/OUT4
#REC
SLSM
3x
#REC #PLAY
Prim.
Link Sec.
Link Prim.
Link Sec.
Link Prim.
Link Sec.
Link Prim.
Link Sec.
Link
1 3 1 PLAY1 MIX1 REC1,3 REC4 REC1,2 REC3 REC1,1 REC2
2 0 1 PLAY1 MIX1 REC1,3 REC2,3 REC1,2 REC2,2 REC1,1 REC2,1
1 1 2 PLAY1 MIX1 PLAY2 MIX2 REC1,2 REC2 REC1,1 REC1,3
XT3 6UServers
Available 2R/CM SLSM 2x Configurations
The table below shows the possible combinations of SLSM 2 Phase and 2R/CM in
SD/HD configurations with a XT3 6Userver, and how the BNC connectors should be
cabled:
IN6/OUT1 IN5/OUT2 IN4/OUT3 IN3/OUT4 IN2/OUT5 IN1/OUT6
#REC
SLSM
2x
#REC #PLAY
Prim.
Link Sec.
Link Prim.
Link Sec.
Link Prim.
Link Sec.
Link Prim.
Link Sec.
Link Prim.
Link Sec.
Link Prim.
Link Sec.
Link
1 4 2 PLAY1 MIX1 PLAY2 MIX2 REC3 REC2 REC1,2 REC5 REC1,1 REC4
2 2 2 PLAY1 MIX1 PLAY2 MIX2 REC2,2 REC2,1 REC1,2 REC4 REC1,1 REC3
3 0 2 PLAY1 MIX1 PLAY2 MIX2 REC2,2 REC2,1 REC1,2 REC3,2 REC1,1 REC3,1
1 2 4 PLAY1 MIX1 PLAY2 MIX2 PLAY3 MIX3 PLAY4 MIX4 REC1,2 REC3 REC1,1 REC2
2 0 4 PLAY1 MIX1 PLAY2 MIX2 PLAY3 MIX3 PLAY4 MIX4 REC1,2 REC2,2 REC1,1 REC2,1
