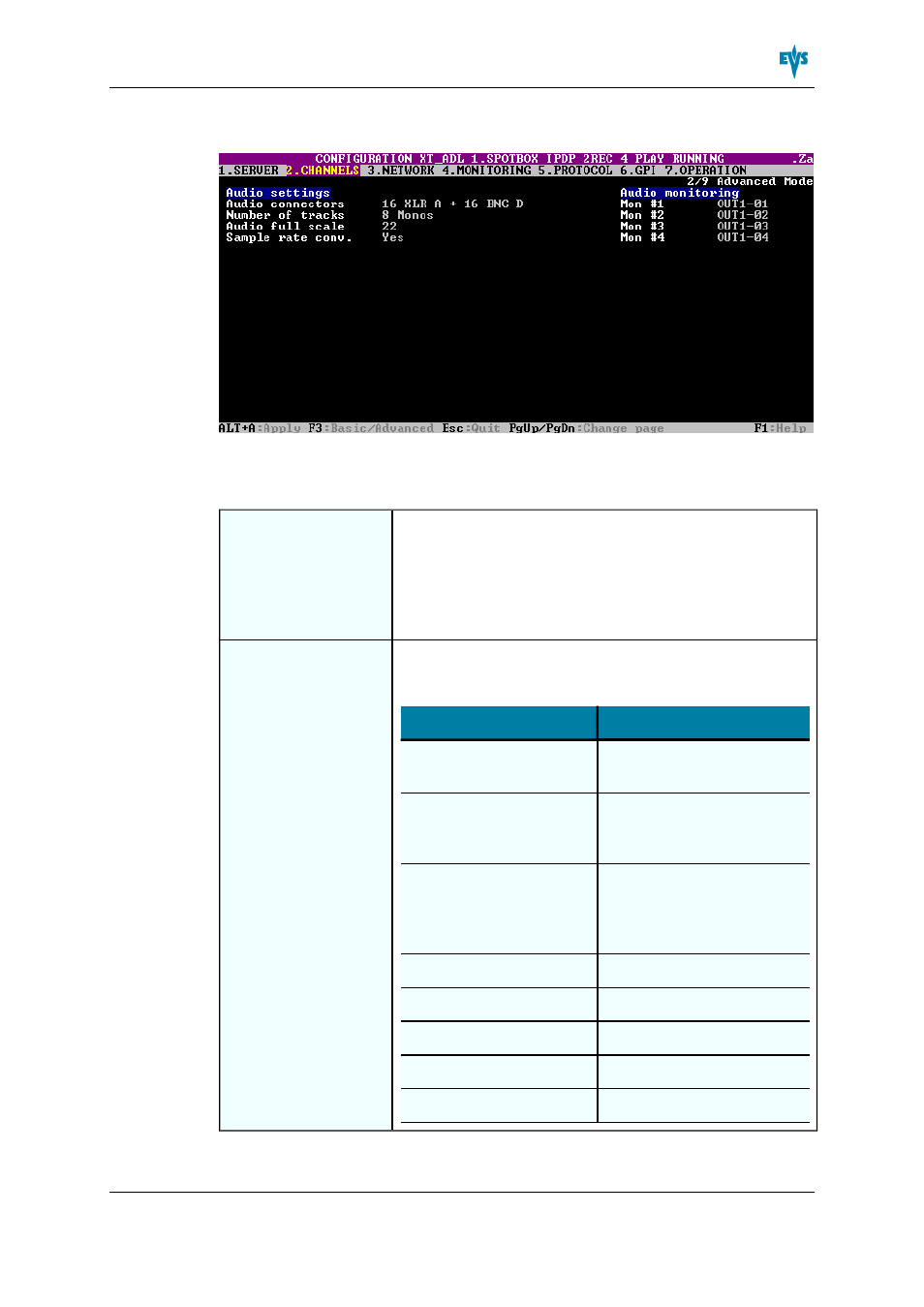

The following screenshot presents the 2nd page of the Channels tab, where the Audio
settings and Audio Monitoring settings are available in the server-based application:
Audio Connectors
Description Type of connectors available in the hardware configuration.
The audio formats available on the EVS server, and in the
Advanced audio settings pages, depend on the audio
hardware configuration.
Note that the values defined on this field are not validated
against the real hardware configuration.
Values The following table shows the available audio hardware
configurations, and the available audio formats based on this
hardware configuration:
Hardware configuration Available formats
• None E (Embedded)
EY (Dolby E Embedded
• 16 XLR A (analog) E
EY
A (analog)
• 16 XLR D (Digital) E
EY
D (Digital AES/EBU)
DY (Dolby E AES)
• 16 XLR A + 8 XLR D E - EY - A - D - DY
• 16 XLR A + 16 BNC D E - EY - A - D - DY
• 16 XLR A + 4 DB15 D E - EY - A - D - DY
• 4 DB 15 A + 16 BNC D E - EY - A - D - DY
• 4 DB 15 A + 4 DB 15 D E - EY - A - D - DY
