Depending on the mode and on the chassis, the number of record and play channels that
can be operated may vary. The following table shows the minimum and maximum number
of channels that can be operated in both modes:
6U 4U
LSM Spotbox LSM Spotbox
Max. # channels 8 8 7 7
Min. # REC 1 0 1 0
Max. # REC 6 6 6 6
Min. # PLAY 1 0 1 0
Max. # PLAY 5 6 3 3
Note
Based on the above-mentioned limitations, some configurations described in the
following sections are only available in LSM or Spotbox mode.

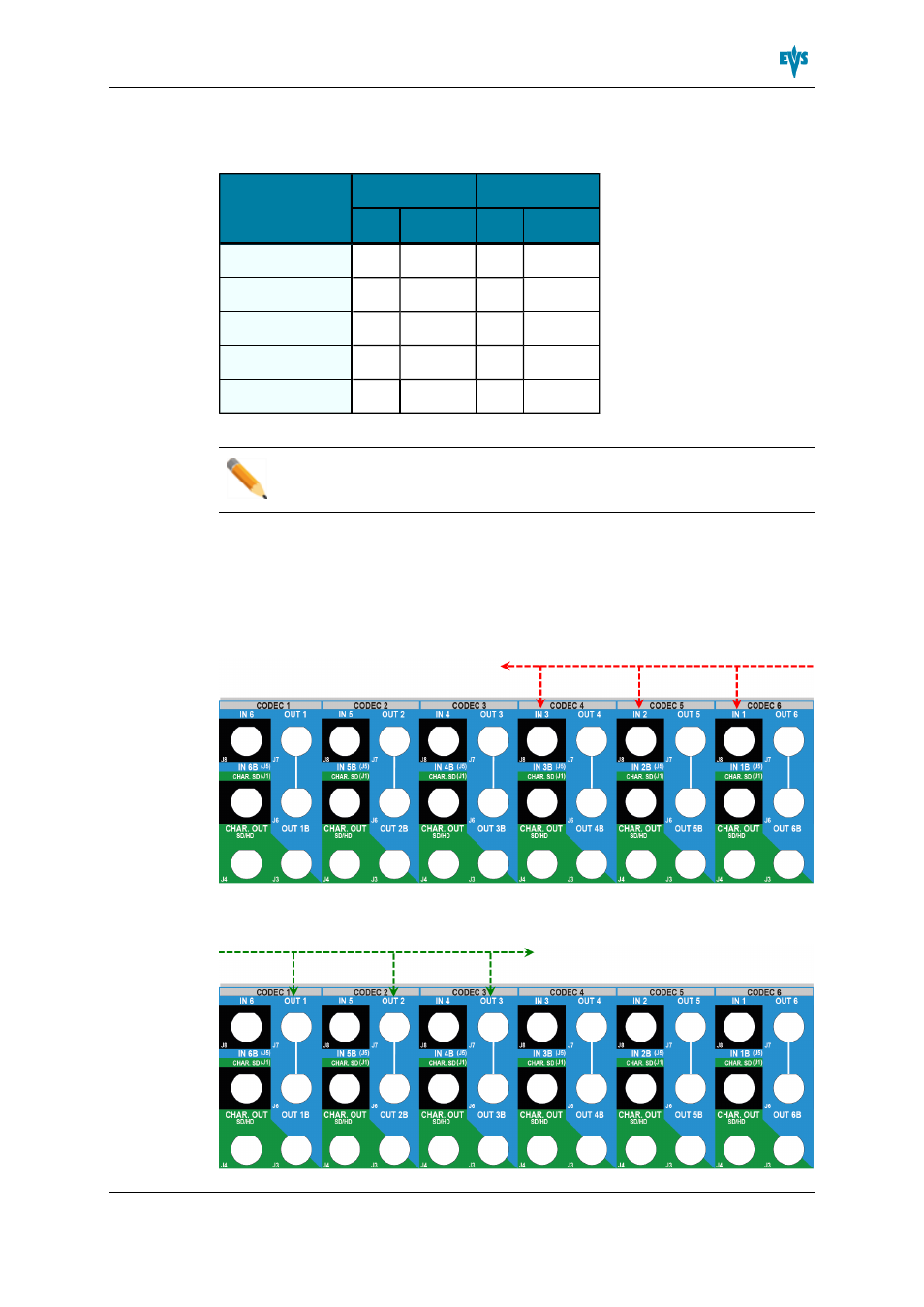

Channel Assignment
The following general principles apply to all configurations, and are valid for all EVS
servers equipped with V3X boards:
• The record channels (OUT connectors) are always assigned from the right to the left.
• The play channels (IN connectors) are always assigned from the left to the right.
XT3 Server - Version 11.00 - Configuration Manual
3. Multicam Configuration 88
