• The primary links mentioned in the tables of this section correspond to the upper
connectors of a codec module.
◦
J8 for IN connectors
◦ J7 for OUT connectors (J6 is also equivalent to J7)
• The secondary links correspond to the middle connectors of a codec module:
◦
J5 for IN connectors
◦ J3 for OUT connectors

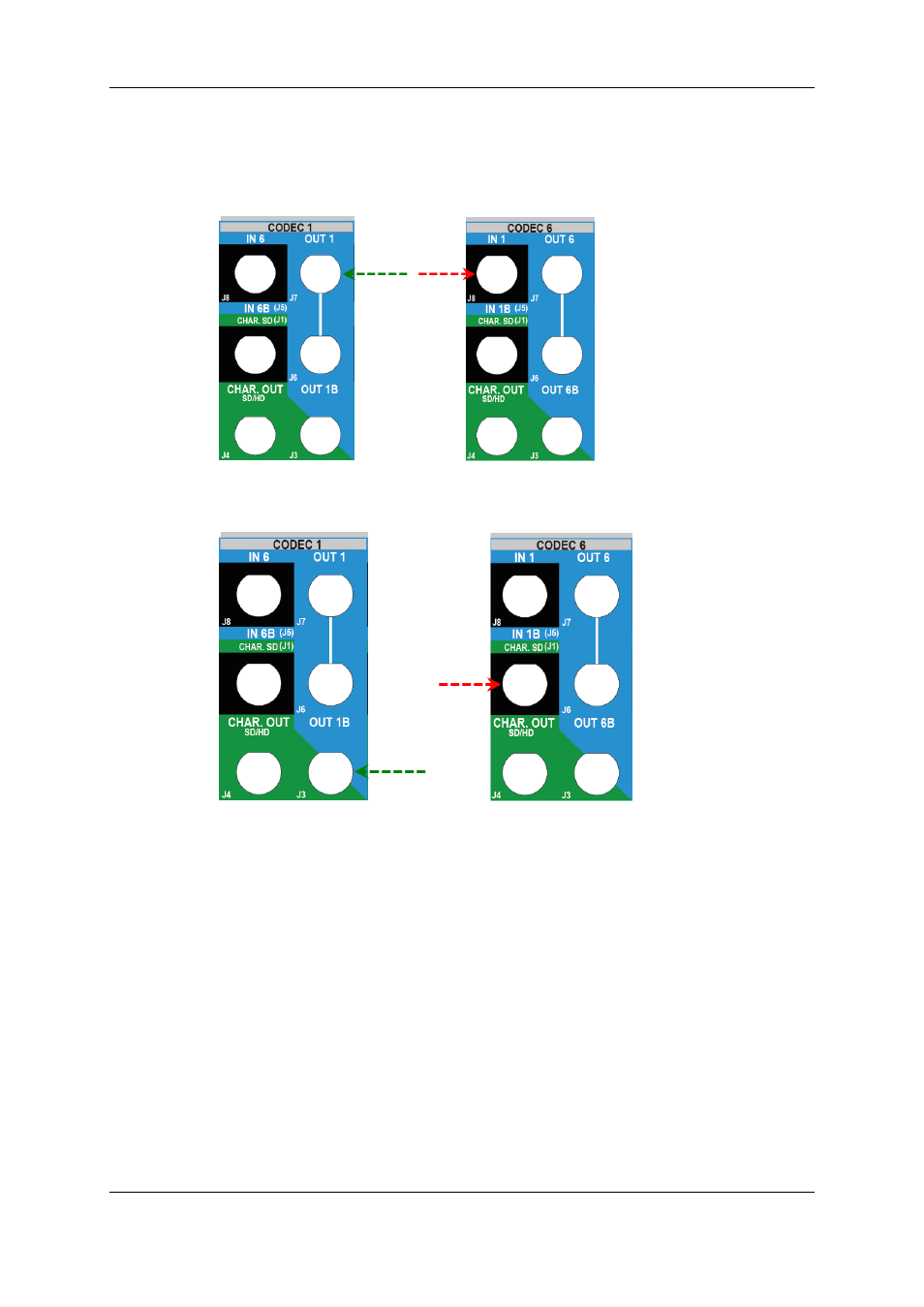

Channel Assignment in 2R/CM Configurations
The 2R/CM configurations should be cabled in the following sequence:
1. Cable the play channels from left to right.
2. Cable the record channels from right to left starting with the primary links, without
using the left codec modules already cabled as play channels.
3. Cable the remaining record channels to assign starting from right to left, and using the
secondary link for the remaining codec modules.
