Warning
The cam mapping feature and setting are only available if the license code 126,
which allows the mapping of additional cameras, is valid.

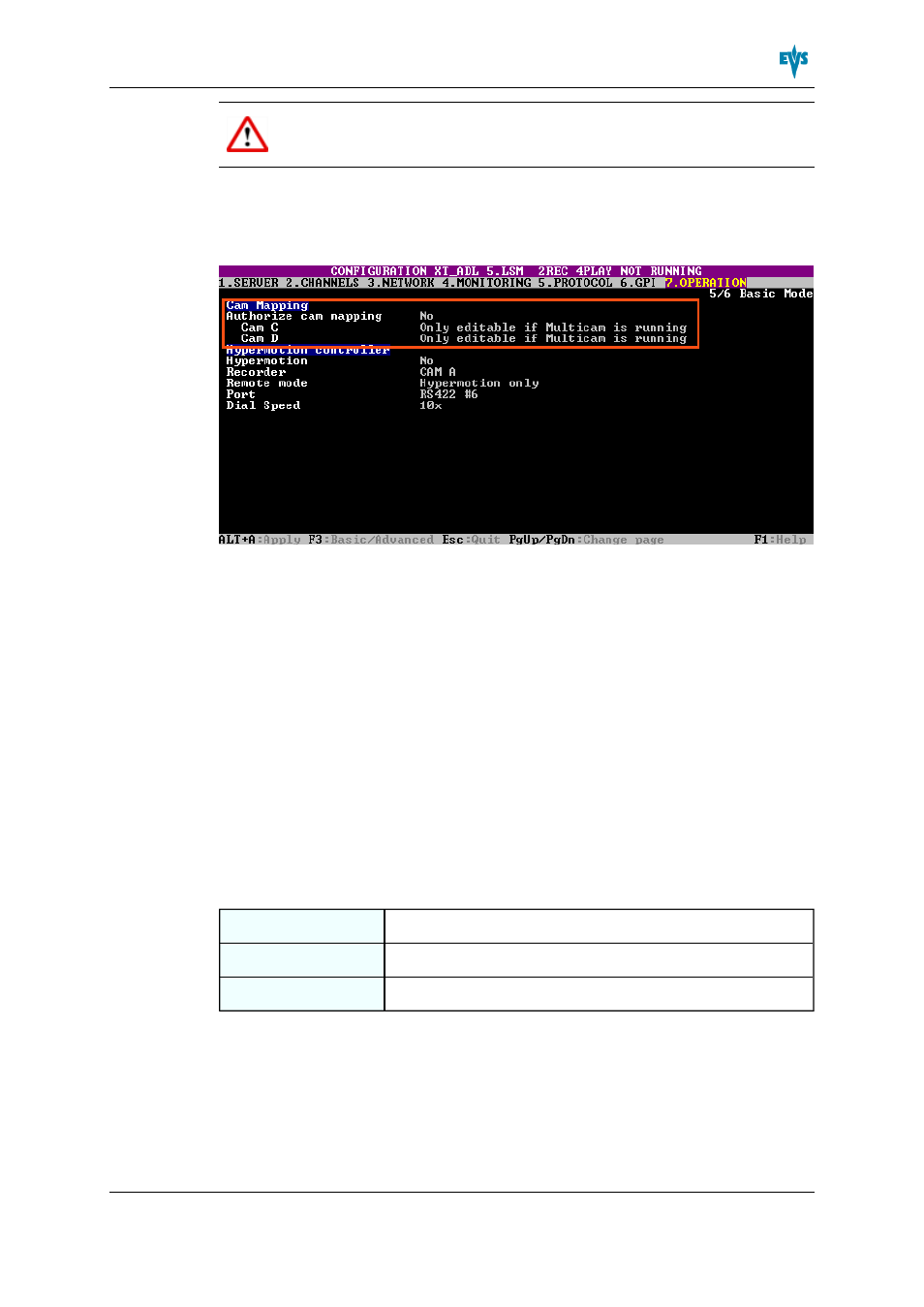

The following screenshot presents page 5 of the Operation tab in the server-based
application, where the Cam Mapping settings are available, and highlights the Cam
Mapping settings area:

Mapping of Network Cameras

This feature allows the mapping of network cameras to unused camera positions on the
remote (up to the last D camera).

The mapping allows a quick selection of network trains on the network. Nevertheless,
please note that these cameras are NOT recorded on the local server, they remain
recorded on their respective destination servers.

For example, in a 2IN 2OUT configuration, the cameras C and D are not used and thus is
possible to map up to 2 network cameras:

Cam A and Cam B are local cameras.

Cam C and Cam D can be mapped to network cameras using respectively the Cam C
and Cam D parameters.

Cam Mapping

Description

Enables or disables the cam mapping feature.

Values

Yes / No

Default Values

No
