C
ONFIGURING THE
S
WITCH
3-182
Traffic Classes Status
This switch provides mapping of user priorities to multiple traffic classes.
Note: Due to a hardware limitation this feature is not currently
implemented.
Command Attributes
Enabled - Enables or disables the feature.
Web – Click Priority, Traffic Classes Status. Check the box to enable the
feature.

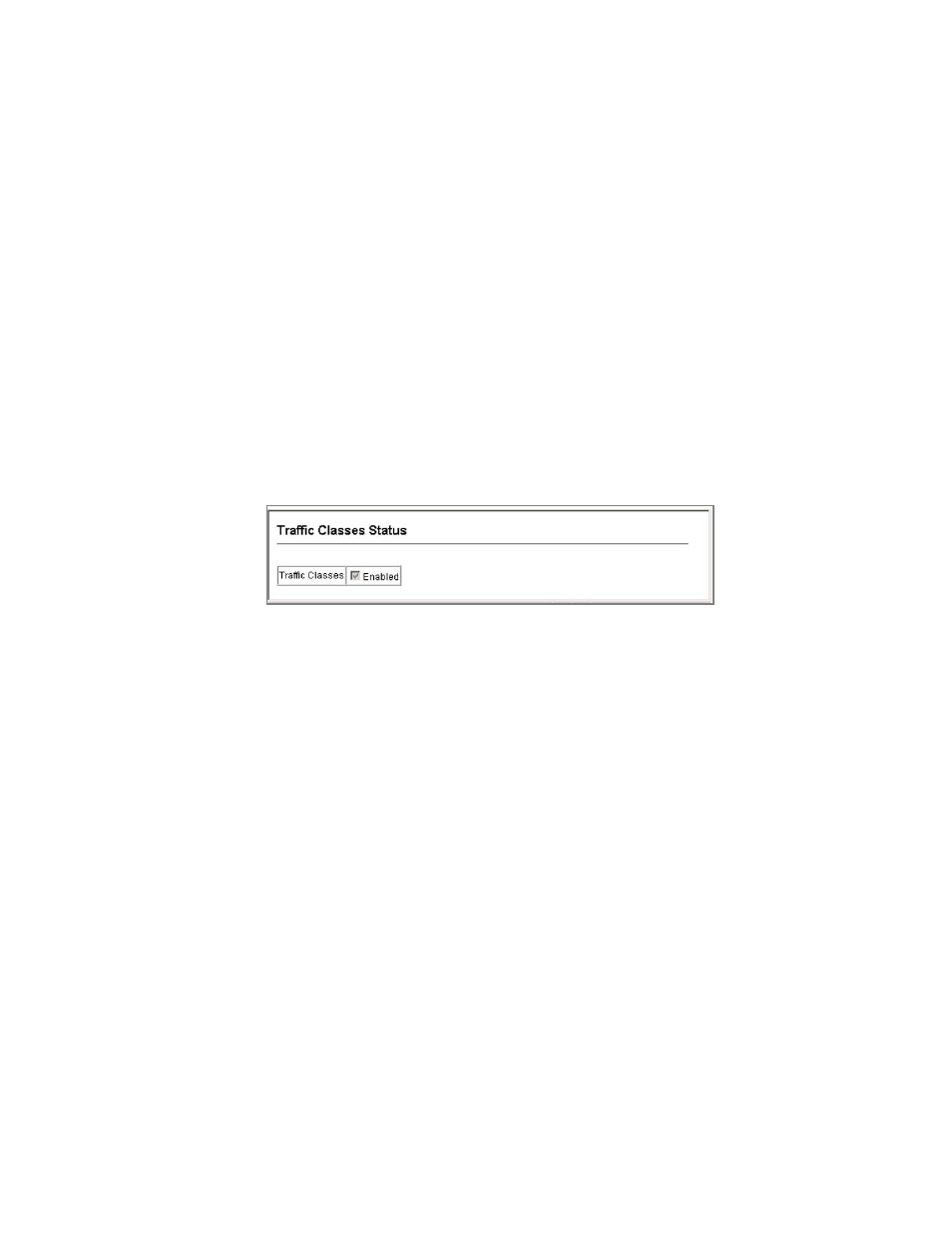

Figure 3-79 Enabling Traffic Classes
Selecting the Queue Mode
You can set the switch to service the queues based on a strict rule that
requires all traffic in a higher priority queue to be processed before lower
priority queues are serviced, or use Weighted Round-Robin (WRR)
queuing that specifies a relative weight of each queue. WRR uses a
predefined relative weight for each queue that determines the percentage
of service time the switch services each queue before moving on to the
next queue. This prevents the head-of-line blocking that can occur with
strict priority queuing.
Command Attributes
• WRR - Weighted Round-Robin shares bandwidth at the egress ports
by using scheduling weights 1, 4, 16, 64 for queues 0 through 3
respectively. (This is the default selection.)
