Command Attributes
• Mirror Sessions – Displays a list of current mirror sessions.
• Source Port – The port whose traffic will be monitored.
• Type – Allows you to select which traffic to mirror to the target port,
Rx (receive), Tx (transmit), or Both.
• Target Port – The port that will “duplicate” or “mirror” the traffic on
the source port.
Web – Click Port, Mirror. Specify the source port, the traffic type to be
mirrored, and the monitor port, then click Add.

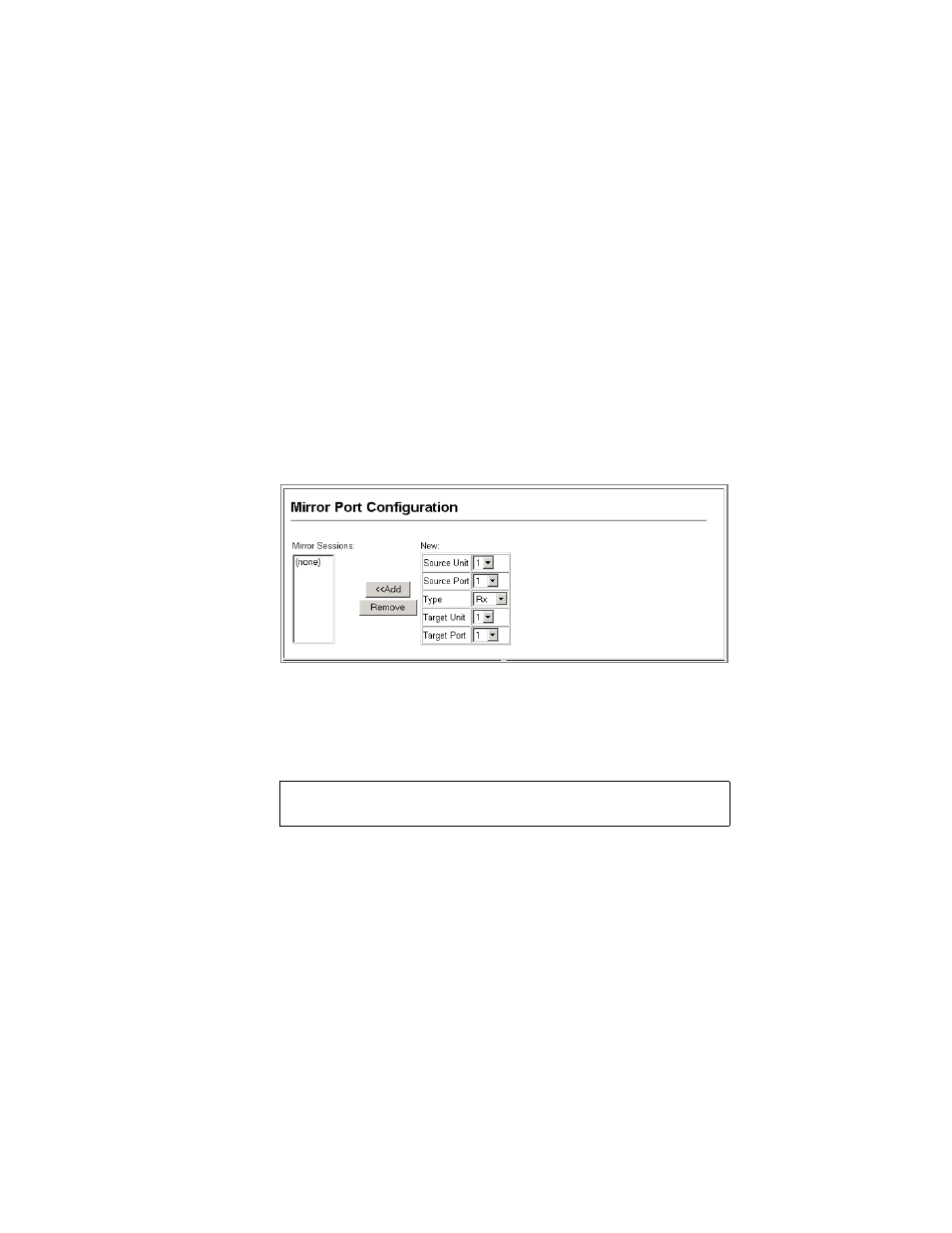

Figure 3-56 Mirror Port Configuration
CLI – Use the interface command to select the monitor port, then use the
port monitor command to specify the source port. Note that default
mirroring under the CLI is for both received and transmitted packets.
Configuring Rate Limits
This function allows the network manager to control the maximum rate
for traffic transmitted or received on an interface. Rate limiting is
configured on interfaces at the edge of a network to limit traffic coming
out of the switch. Traffic that falls within the rate limit is transmitted, while
packets that exceed the acceptable amount of traffic are dropped.
Console(config)#interface ethernet 1/10 4-174
Console(config-if)#port monitor ethernet 1/13 4-188
Console(config-if)#
