CLI – Specify any interface, and then enter the threshold. The following
disables broadcast storm control for port 1, and then sets broadcast
suppression at 600 packets per second for port 2.
Configuring Port Mirroring
You can mirror traffic from any source
port to a target port for real-time
analysis. You can then attach a logic
analyzer or RMON probe to the target
port and study the traffic crossing the
source port in a completely unobtrusive
manner.
Command Usage
• Monitor port speed should match or exceed source port speed,
otherwise traffic may be dropped from the monitor port.
• All mirror sessions have to share the same destination port.
• When mirroring port traffic, the target port must be included in the
same VLAN as the source port.
Console(config)#interface ethernet 1/1 4-174
Console(config-if)#no switchport broadcast 4-181
Console(config-if)#exit 4-32
Console(config)#interface ethernet 1/2 4-174
Console(config-if)#switchport broadcast packet-rate 600 4-181
Console(config-if)#end
Console#show interfaces switchport ethernet 1/2
4-186
Information of Eth 1/2
Broadcast threshold: Enabled, 600 packets/second
LACP status: Disabled
Ingress rate limit: disable,100M bits per second
Egress rate limit: disable,100M bits per second
VLAN membership mode: Hybrid
Ingress rule: Disabled
Acceptable frame type: All frames
Native VLAN: 1
Priority for untagged traffic: 0
GVRP status: Enabled
Allowed VLAN: 1(u),
Forbidden VLAN:
Console#

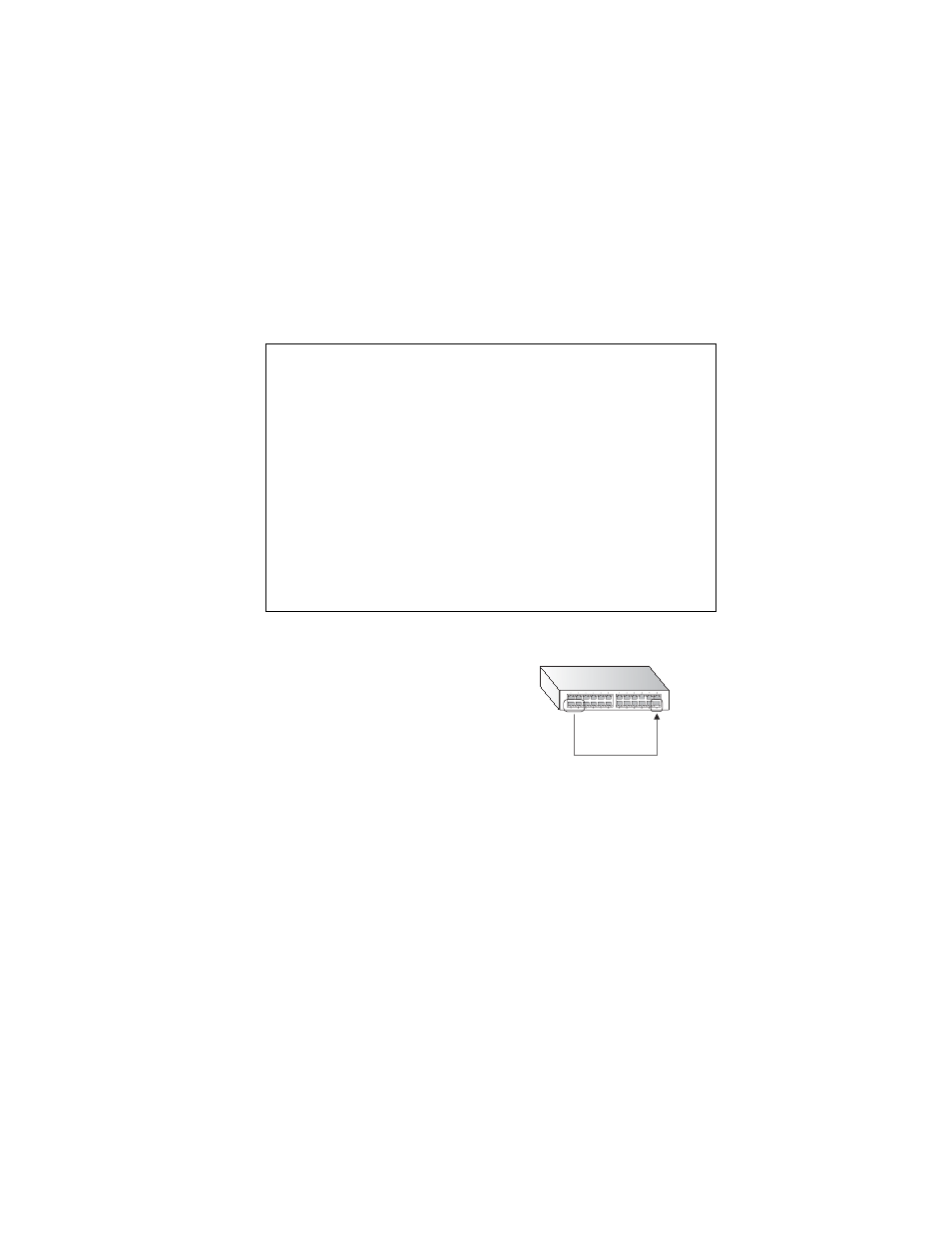

Source
port(s) Single
target
port
