Web – Click VLAN, 802.1Q VLAN, Current Table. Select any ID from
the scroll-down list.

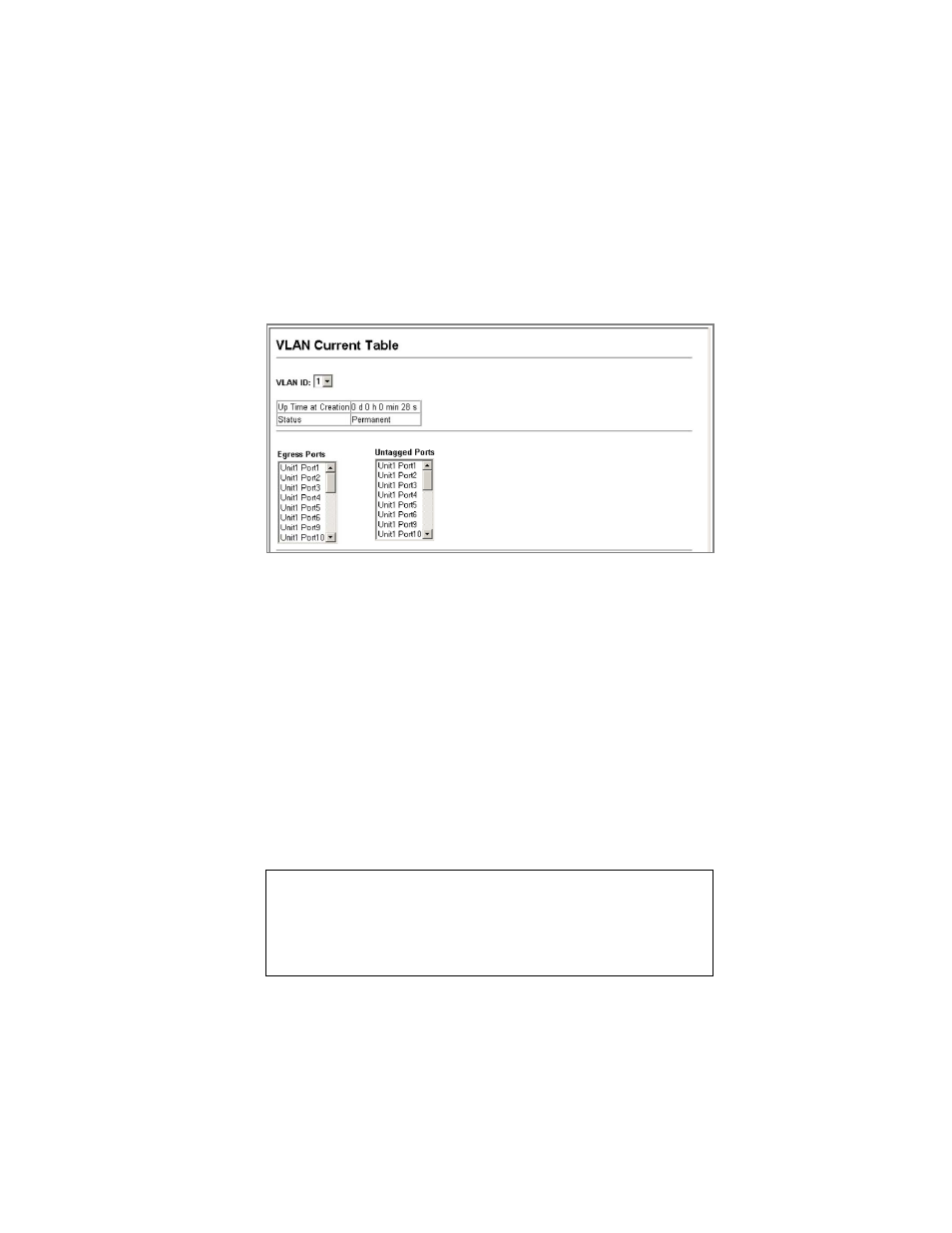

Figure 3-72 VLAN Current Table
Command Attributes (CLI)
• VLAN – ID of configured VLAN (1-4094, no leading zeroes).
• Type – Shows how this VLAN was added to the switch.
- Dynamic: Automatically learned via GVRP.
- Static: Added as a static entry.
• Name – Name of the VLAN (1 to 32 characters).
• Status – Shows if this VLAN is enabled or disabled.
- Active: VLAN is operational.
- Suspend: VLAN is suspended; i.e., does not pass packets.
• Ports / Channel groups – Shows the VLAN interface members.
CLI – Current VLAN information can be displayed with the following
command.
Console#show vlan id 1 4-238
VLAN Type Name Status Ports/Channel groups
1 Static DefaultVlan Suspended Eth1/ 1 Eth1/ 2 Eth1/ 3 Eth1/ 4
Eth1/ 5 Eth1/ 6 Eth1/ 7 Eth1/ 8
Eth1/ 9 Eth1/10 Eth1/11 Eth1/12
Eth1/13 Eth1/14 Eth1/15 Eth1/16
Eth1/17 Eth1/18 Eth1/19 Eth1/20
Eth1/21 Eth1/22 Eth1/23 Eth1/24
Console#
