IIS-BUS INTERFACE
S3C2440A RISC MICROPROCESSOR
21-4
IIS-bus Format (N=8 or 16)
MSB
(1st)
2nd
Bit
N-1th
Bit
LSB
(last)
MSB
(1st)
2nd
Bit
N-1th
Bit
LSB
(last)
MSB
(1st)
LRCK
SCLK
SD
LEFT
RIGHT
LEFT
MSB-justified Format (N=8 or 16)
2nd
Bit
N-1th
Bit
LSB
(last)
MSB
(1st)
2nd
Bit
N-1th
Bit
LSB
(last)
LRCK
SCLK
SD
LEFT
RIGHT
MSB
(1st)

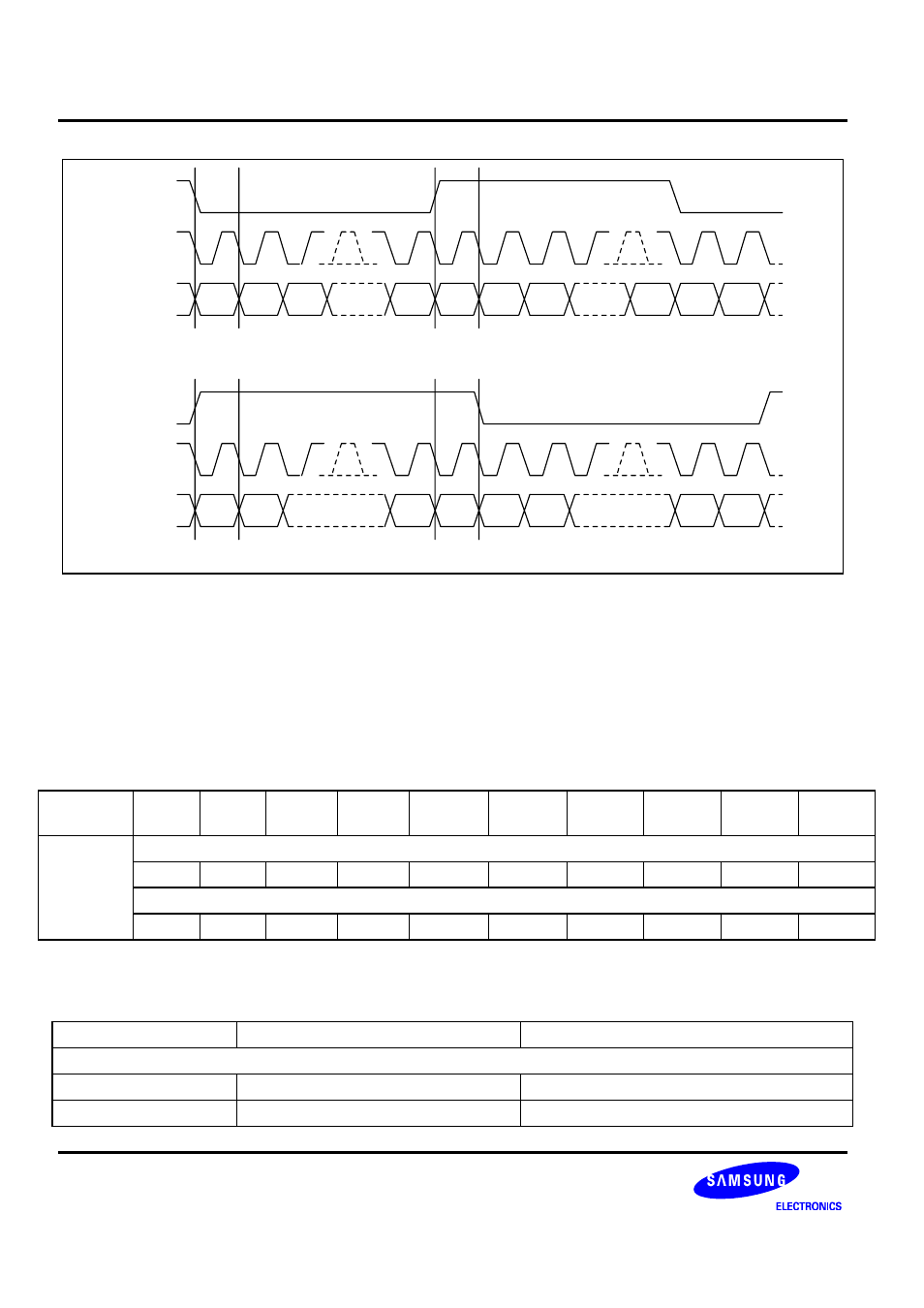

Figure 21-2. IIS-Bus and MSB (Left)-justified Data Interface Formats
SAMPLING FREQUENCY AND MASTER CLOCK
Master clock frequency (PCLK or MPLLin) can be selected by sampling frequency as shown in Table 21-1.
Because Master clock is made by IIS prescaler, the prescaler value and Master clock type (256 or 384fs) should
be determined properly. Serial bit clock frequency type (16/32/48fs) can be selected by the serial bit per channel
and Master clock as shown in Table 21-2.
Table 21-1 CODEC clock (CODECLK = 256 or 384fs)
IISLRCK
(fs)
8.000
KHz
11.025
KHz
16.000
KHz
22.050
KHz
32.000
KHz
44.100
KHz
48.000
KHz
64.000
KHz
88.200
KHz
96.000
KHz
256fs
CODECLK 2.0480 2.8224 4.0960 5.6448
8.1920 11.2896
12.2880
16.3840 22.5792
24.5760
(MHz)
384fs
3.0720 4.2336 6.1440 8.4672
12.2880
16.9344
18.4320
24.5760 33.8688
36.8640
Table 21-2 Usable serial bit clock frequency (IISCLK = 16 or 32 or 48fs)
Serial bit per channel
8-bit
16-bit
Serial clock frequency (IISCLK)
@CODECLK = 256fs
16fs, 32fs
32fs
@CODECLK = 384fs
16fs, 32fs, 48fs
32fs, 48fs
