DMA S3C2440A RISC MICROPROCESSOR
8-4
Demand/Handshake Mode Comparison
Demand and Handshake modes are related to the protocol between XnXDREQ and XnXDACK. Figure 8-2 shows
the differences between the two modes.
At the end of one transfer (Single/Burst transfer), DMA checks the state of double-synched XnXDREQ.
Demand mode
- If XnXDREQ remains asserted, the next transfer starts immediately. Otherwise it waits for XnXDREQ to
be asserted.
Handshake mode
- If XnXDREQ is de-asserted, DMA de-asserts XnXDACK in 2cycles. Otherwise it waits until XnXDREQ is
de-asserted.
Caution: XnXDREQ has to be asserted (low) only after the de-assertion (high) of XnXDACK.
Demand Mode
XSCLK
XnXDACK
XnXDACK
XnXDREQ
XnXDREQ
2cycles
Double
synch
Read Write
Read Write
Handshake Mode
BUS Acquisiton Actual
Transfer
1st Transfer 2nd Transfer
2cycles
Read Write
Double
synch
2cycles

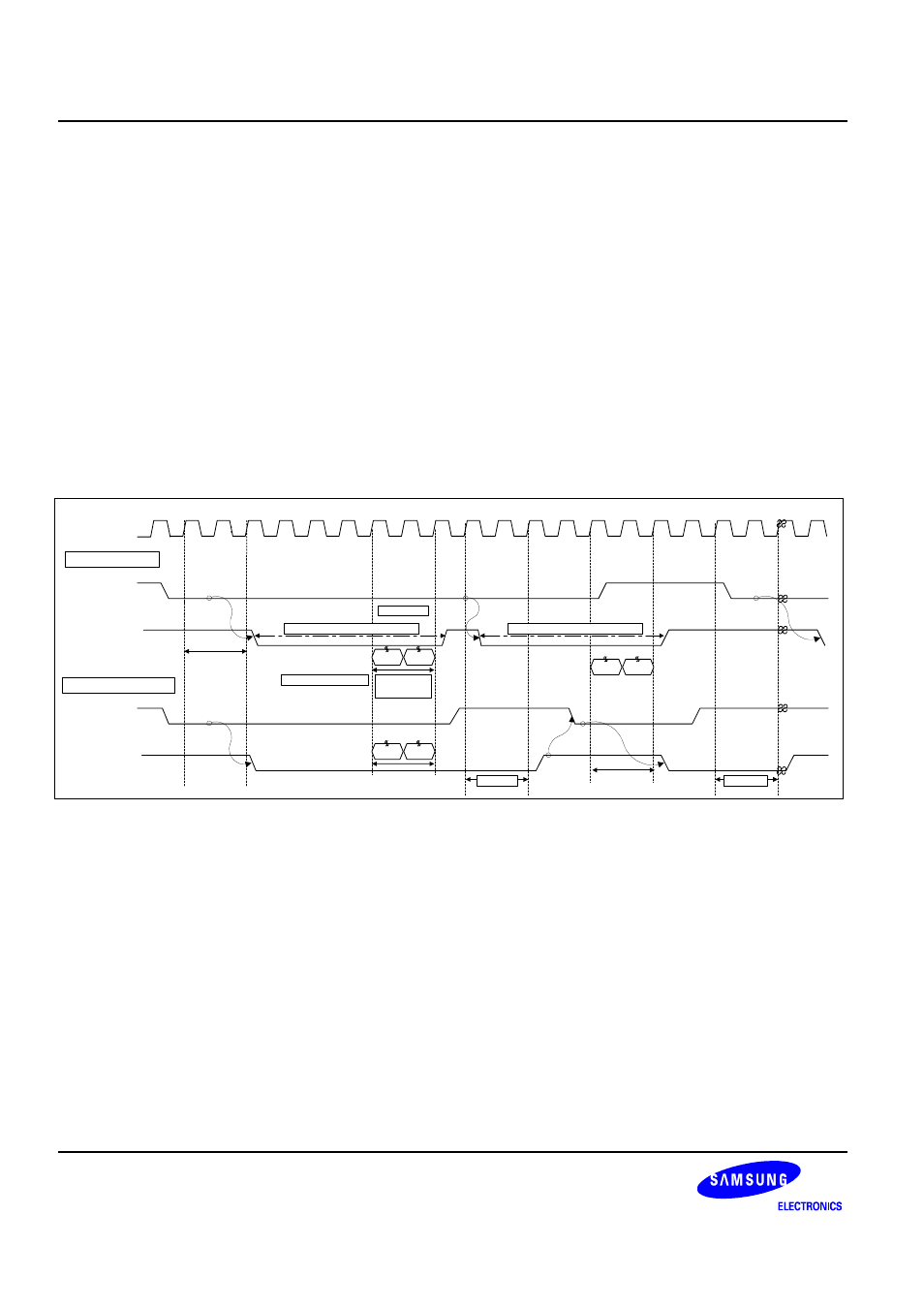

Figure 8-2. Demand/Handshake Mode Comparison
