PLANET CS-2001 - Manual (Page 380)

369
Step 1. Go to Policy Object > VPN > PPTP Server and then set as below:
（Figure
11-250）
 Click the Modify button.
 Tick Enable PPTP.
 Tick Encryption.
 Tick Allow Internet access via and then select the port.
 Auto-disconnect if idle for: type 0.
 Enter the Client IP – IP Range.
 Click OK.

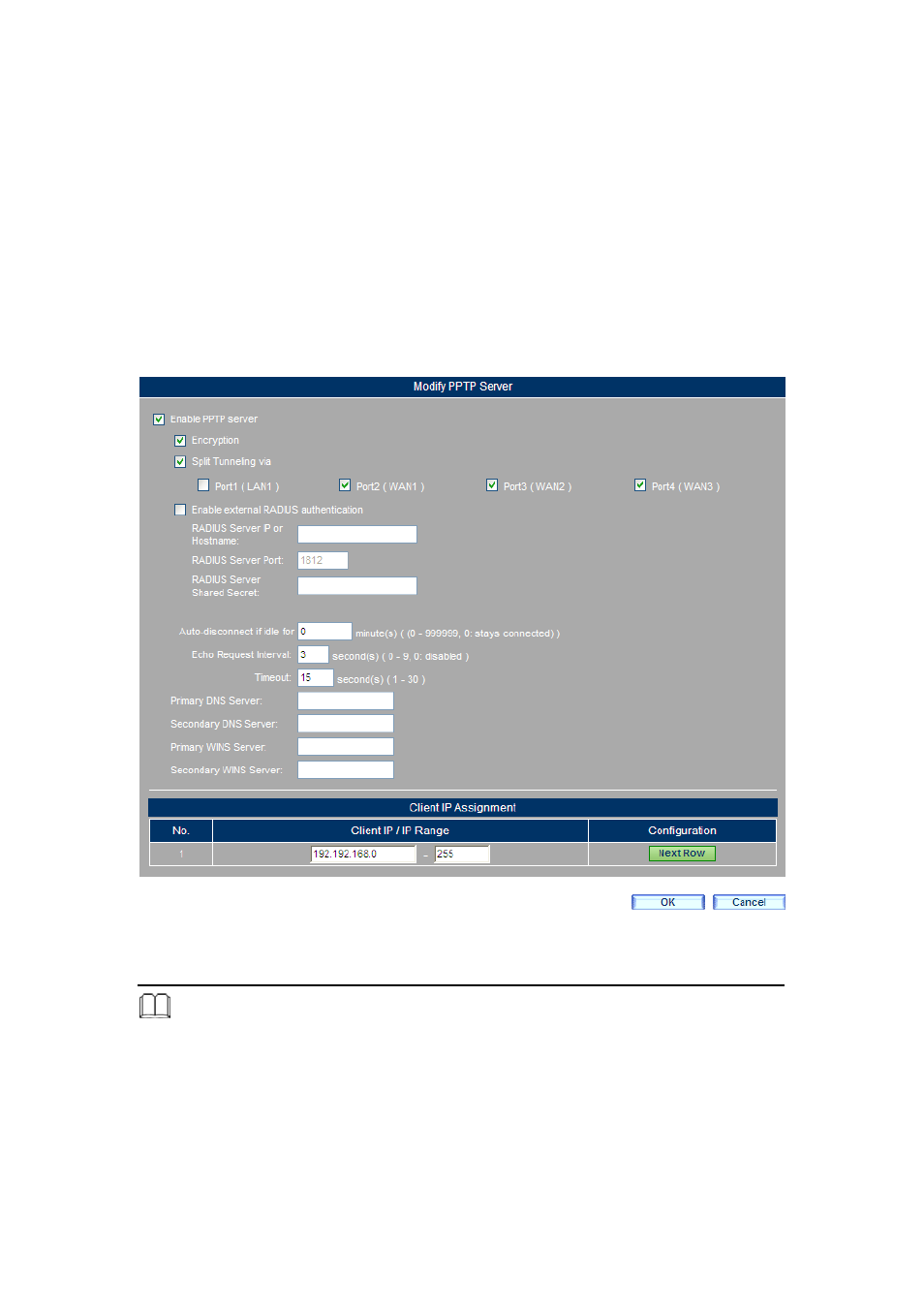

Figure 11-250 Enabling the PPTP Server
Note：
1. The IT administrator may enable or disable the external users to access the Internet via the
CS-2001 device when they establish a VPN connection with the CS-2001 device.
2. Auto-disconnect if idle for: if the VPN connection is idle for the defined times, it will be
disconnected automatically.
