September 6, 2006 K2 Storage System Instruction Manual 269
Sending K2 configuration to NetCentral

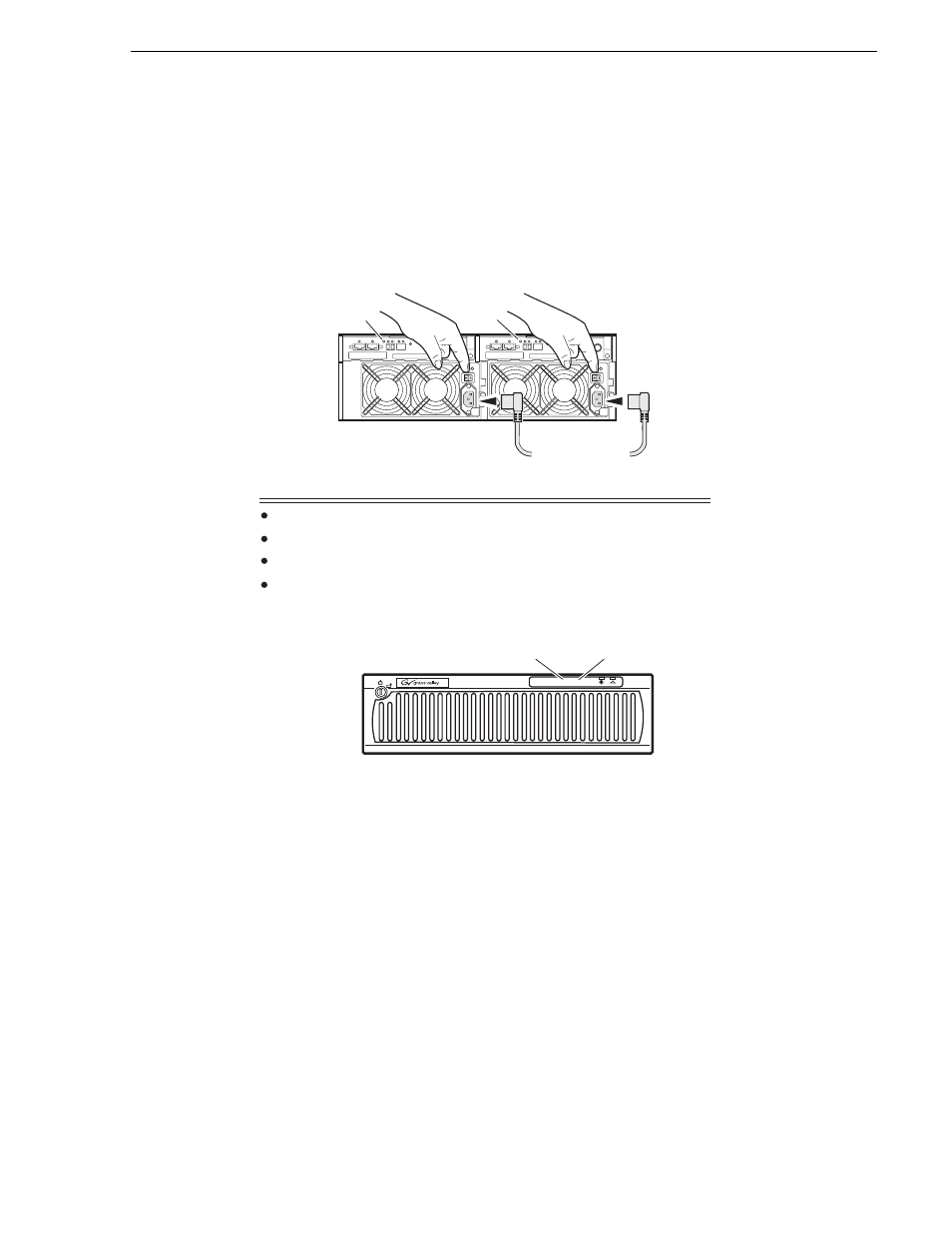

Power on the L3 RAID chassis
Sending K2 configuration to NetCentral
As you configure the K2 Storage System, information is automatically sent to
NetCentral. When NetCentral receives the information it adds devices and populates
its interface with a view of the K2 Storage System.
Before you begin using the K2 System Configuration application to configure the
storage system, you must set up the NetCentral system according to the following
requirements:
• NetCentral installed — NetCentral server software must be installed on a
NetCentral server PC. This can be the K2 configuration control point PC or another
PC that has network communication with the K2 Storage System control network.
• Device providers installed — A device provider must be installed on the NetCentral
server PC for each type of device in the K2 Storage System. For a nearline storage
system, the following device providers must be installed:
POWER SERVICE
K2 RAID STORAGE !
Power Cords
(115V/230V)
Power-up Verification
DIR and SVP LEDs on the RAID controllers are blinking green
Disk Link LED is steady ON green.
FLT and BAT LEDs are OFF.
The front Power LED is ON, Service LED is OFF after about 5 minutes.
Refer to the L3 RAID Instruction Manual if there is a problem.
Power LED
Disk Link
LED
Disk Link
LED
Connect power cords, and turn on power as shown.
You must power-up any RAID Expansion chassis
prior to, or at the same time as the RAID Controller
chassis. Verify power-up as shown.
Service LED
