208 K2 Storage System Instruction Manual September 6, 2006
Chapter 6 Installing the Level 3R Storage System
Assign Fibre Channel address ID
Every RAID controller must have a unique Fibre Channel address ID that identifies
the controller on the Fibre Channel fabric. On the L3R RAID, you do not need to
manually set the Fibre Channel address ID, as it is pre-set at the factory.
Connect the L3R RAID chassis
If you have one or two expansion chassis, connect RAID storage for a Level 3
redundant system as follows:

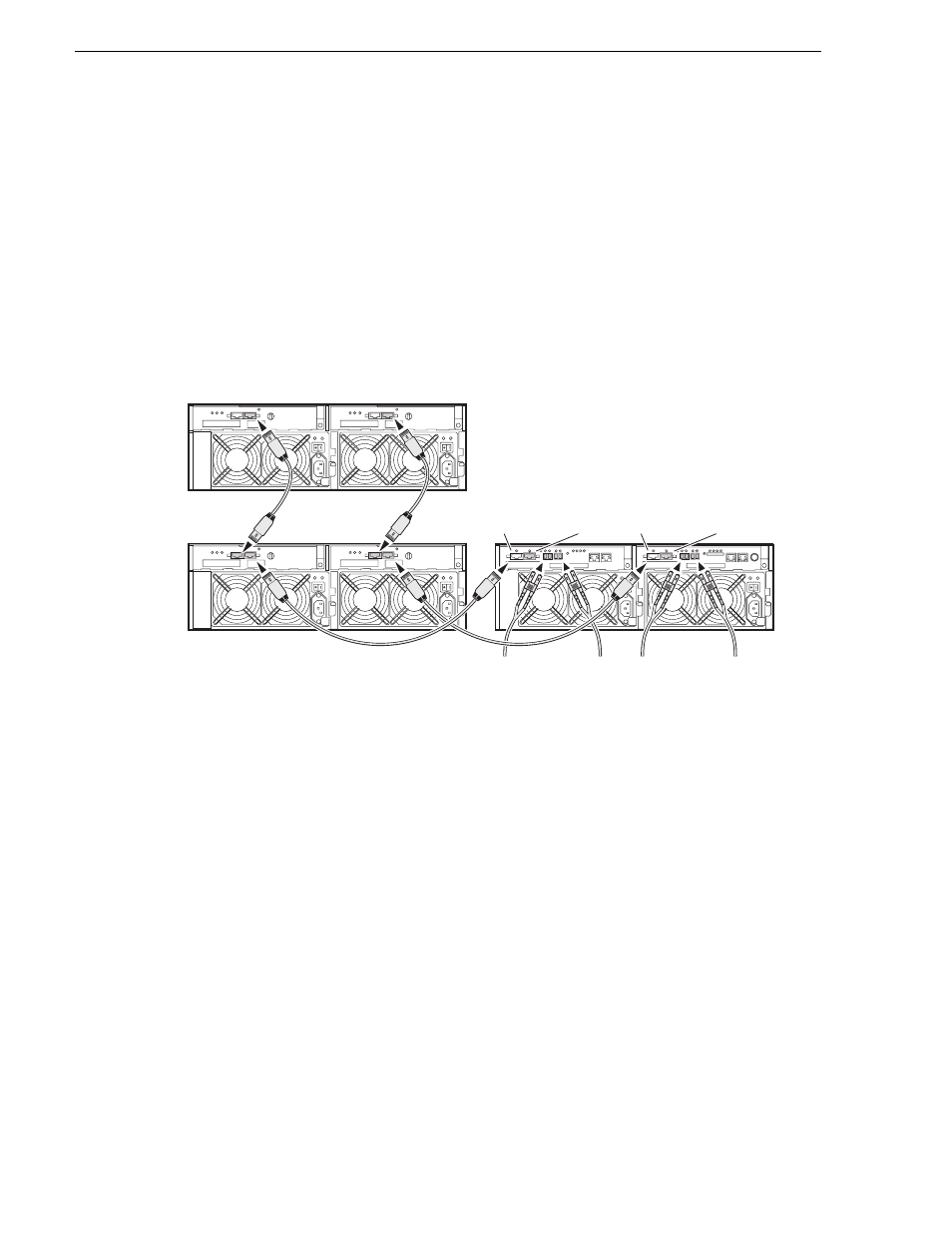

Connect Fibre Channel cabling.
L3 RAID
Chassis
Media servers 1A and 1B are a redundant pair
Media servers 2A and 2B are a redundant pair
Do not connect any Expansion Chassis to DL0
Connect Expansion Chassis 1 & 2 to DL1
DL0 DL0 DL1 DL1
2nd L3 RAID
Expansion
Chassis
(if installed)
1st L3 RAID
Expansion
Chassis
(if installed)
To
media
server
1A
To
media
server
2A
To
media
server
1B
To
media
server
2B
