CDM-570A/570AL Satellite Modem with Optional Packet Processor
MN-CDM570A
Ethernet-based Remote Product Management
Revision 2
7–20
Click [Submit] to save.
Features – CDM-570A
Payload Comp Type – At present, ALDC is the only payload compression type available.
Number of System Flows – Use the drop-down list to select 20,000 or 64,000.
Click [Submit] to save.
Make sure to also click [Save PaP Parameters] on the ‘Admin | PaP Save’ page before
proceeding further.
7.4.3.2.5
Admin | Firmware
Chapter 4. UPDATING FIRMWARE
Click the Modem or Packet Processor tab to continue.
7.4.3.2.5.1
Admin | Firmware | Modem
This page displays read-only information sections about the base modem’s Boot (Bootrom) and
two operational firmware images.

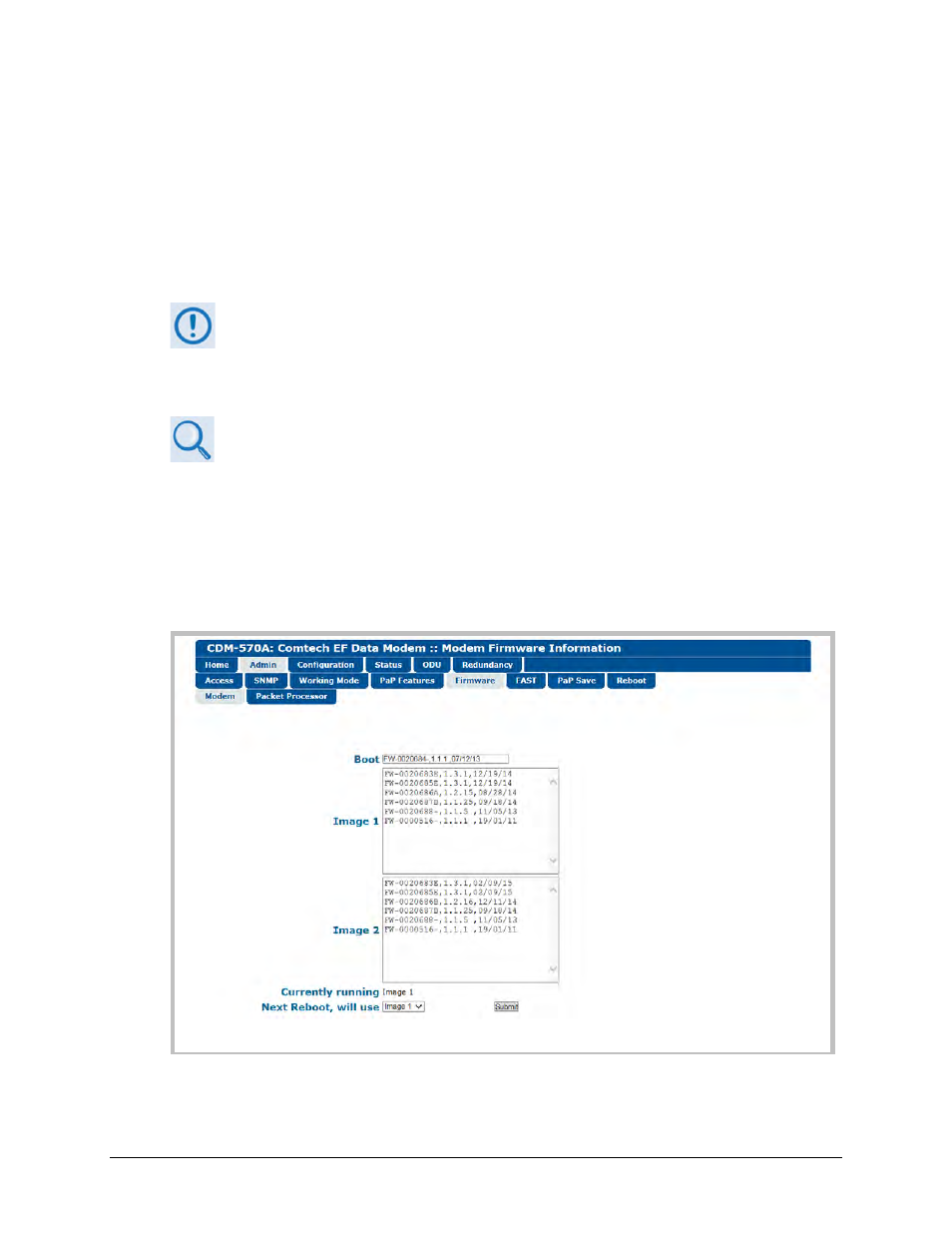

Figure 7-7. Admin | Firmware | Modem Page
