0433-INS-400 Rev. E
6-2
• Weld Status High/Low Limit Indicators
One or both of the indicators will be displayed if the most recent weld was rejected. The top arrow
will flash if a parameter exceeded high limits; the bottom arrow will flash if a parameter exceeded
low limits. Both indicators will flash when both high and low limits were exceeded. Both
indicators will also flash if there is no master made or if masters are not enabled in the General
Setup.
• Job Status High/Low Limit Indicators
One or both of the indicators will be displayed if for any of the welds were rejected since the Job
Status was last cleared. Both indicators will also flash if no master has been created and updated, or
if masters are not enabled in the General Setup Menu.
• Weld/Job Status Good Indicator
If all of the weld parameters are within the master tolerance limits, a “Check Mark” is
displayed in place of the high/low limit indicators.
• Clear Job Status Button
When the Clear button is pressed, both Job Status and Weld Status are cleared, and a “Check
Mark” is displayed.
• Parameter Displays
All of the different weld summary parameters are available from the main screen. Each parameter
display can show data for one of these parameters. A parameter display section of the main screen

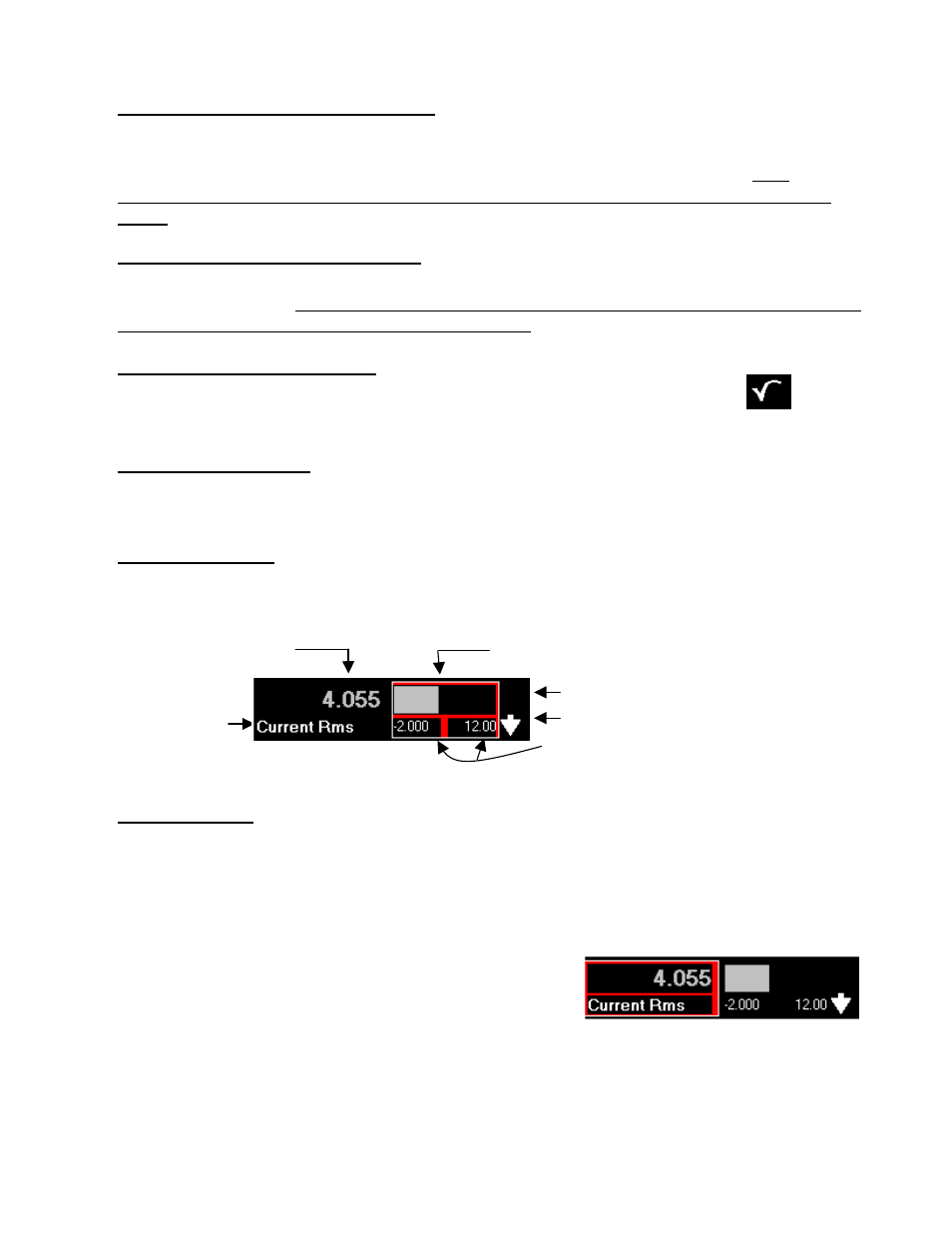

is shown in figure 6-2 below:
• Parameter Name
Each parameter display can show data for one of these parameters:
Current RMS Current Peak Voltage RMS Voltage Peak Force
Conduction Angle Setdown Part Expansion Initial Thickness Energy
Final Thickness Resistance Power Factor Halfcycle On Count
Note: Power Factor is not yet implemented and will display zero.
To select a different parameter in a parameter display, touch
the parameter name on the touch-screen, or navigate to the
parameter name with the arrow keys so that the parameter
name is outlined and use the SELECT button to highlight it,
as shown in figure 6-3. Once the parameter box is
highlighted, the up/down arrows will scroll through the
parameter list.
Figure 6-3 Touch on the parameter
display and use the SELECT button to
highlight it
Figure 6-2 Parameter display
Bar Graph and Trend
Graph Display Button
Parameter Low Limit indicator
Parameter Name
Parameter High Limit indicator (not shown)
Parameter Value
Graph Low/High Limit s
